Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel (3). Refer to Door Handle Bezel Replacement .
  2. Release the retaining tabs for the power door lock switch (2) from the door handle bezel (3).
  3. Disconnect the electrical connector (1) from the power door lock switch (2).

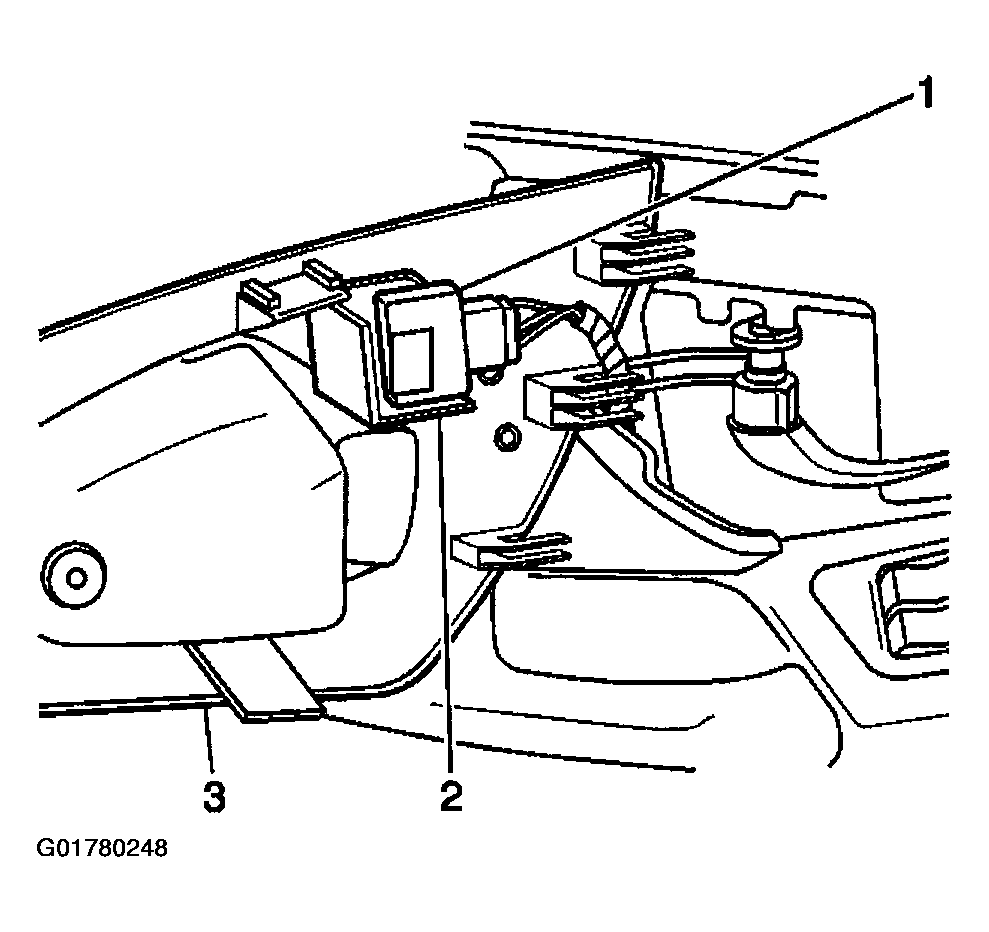

    Fig 1: Removing Power Door Lock Switch
    G01780248Courtesy of GENERAL MOTORS CORP.
