Disassembled Views

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

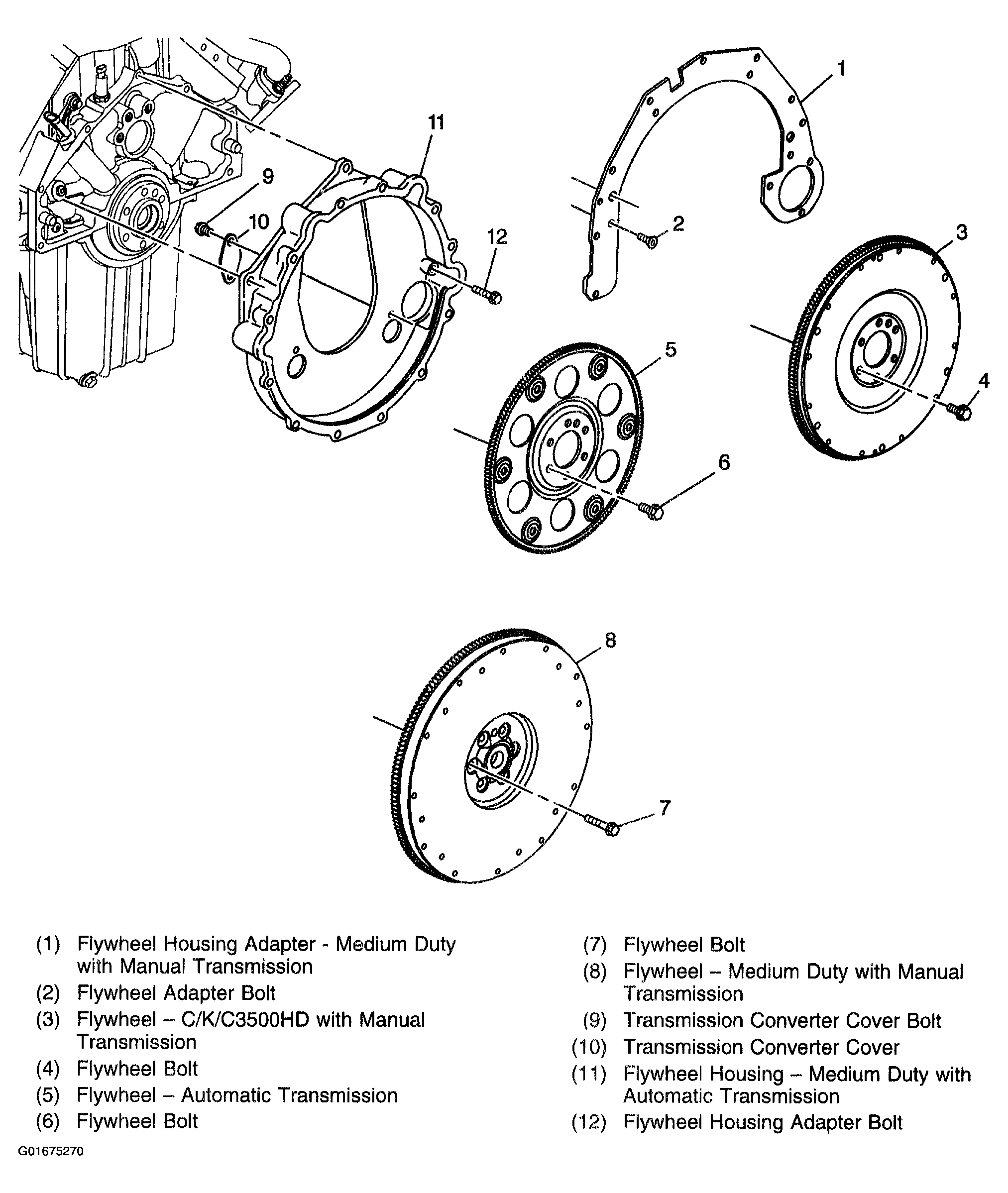

Fig 1: Engine Flywheel & Flywheel Housing Components

Courtesy of GENERAL MOTORS CORP.

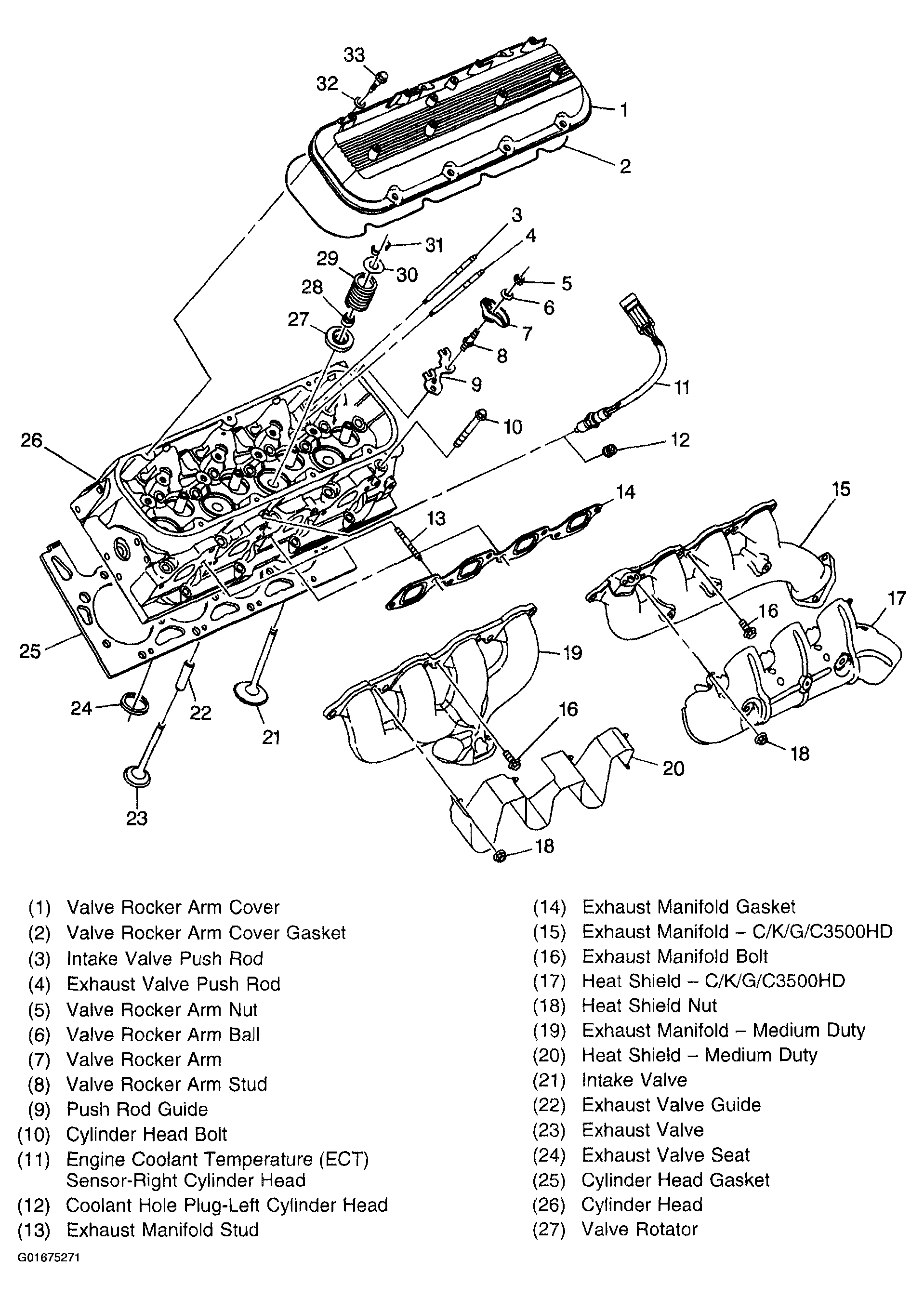

Fig 2: Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

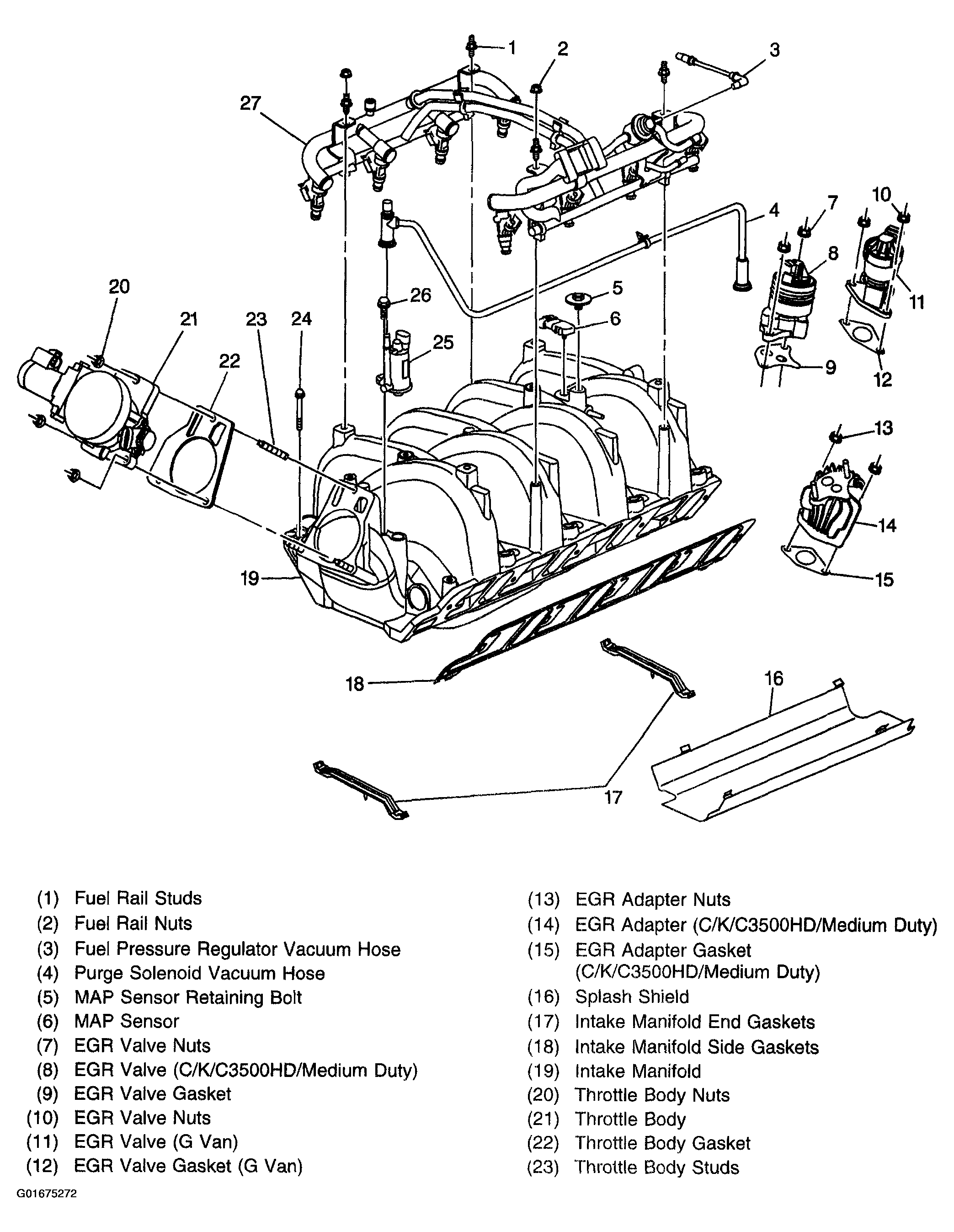

Fig 3: Intake Manifold & Components

Courtesy of GENERAL MOTORS CORP.

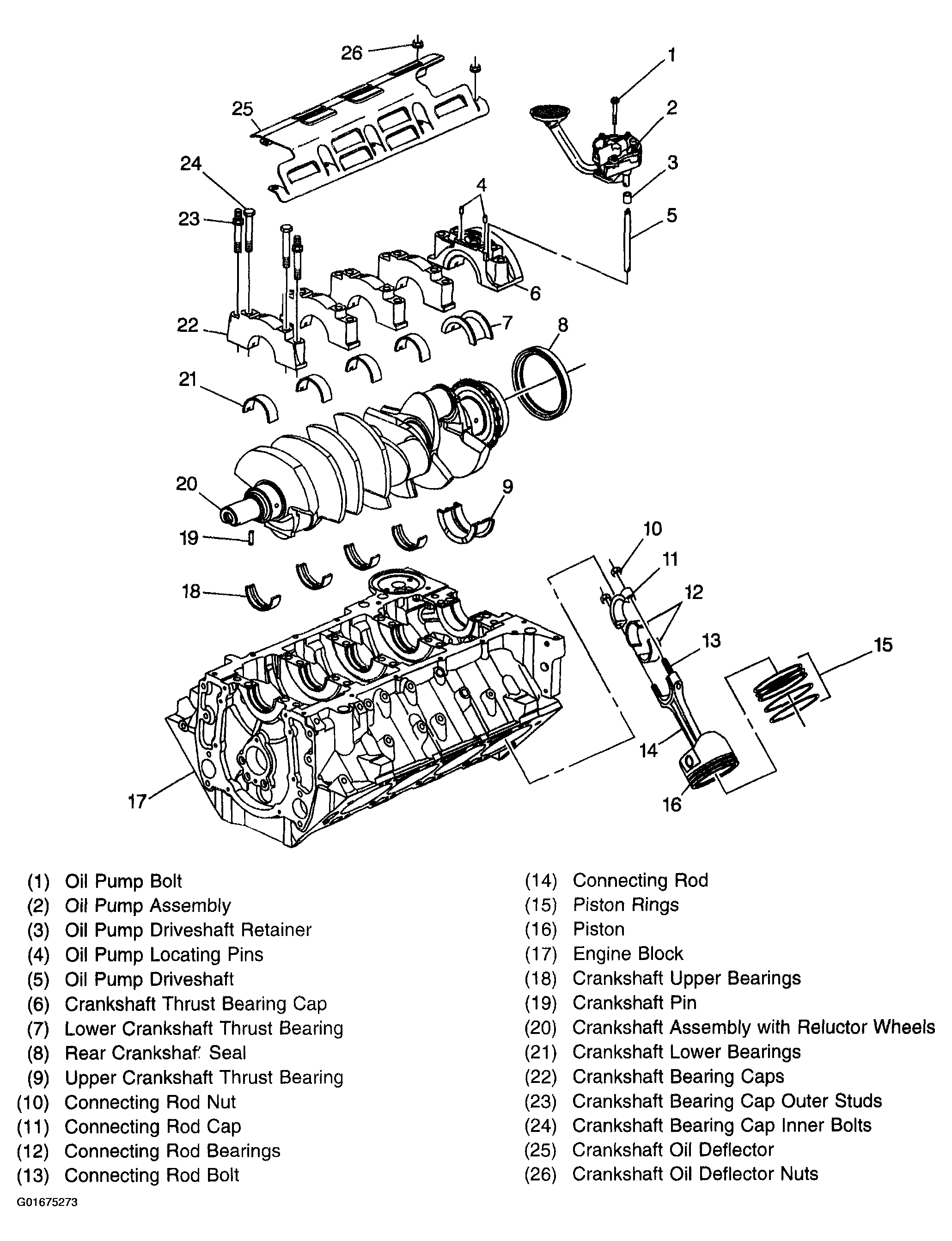

Fig 4: Engine Crankshaft & Components

Courtesy of GENERAL MOTORS CORP.

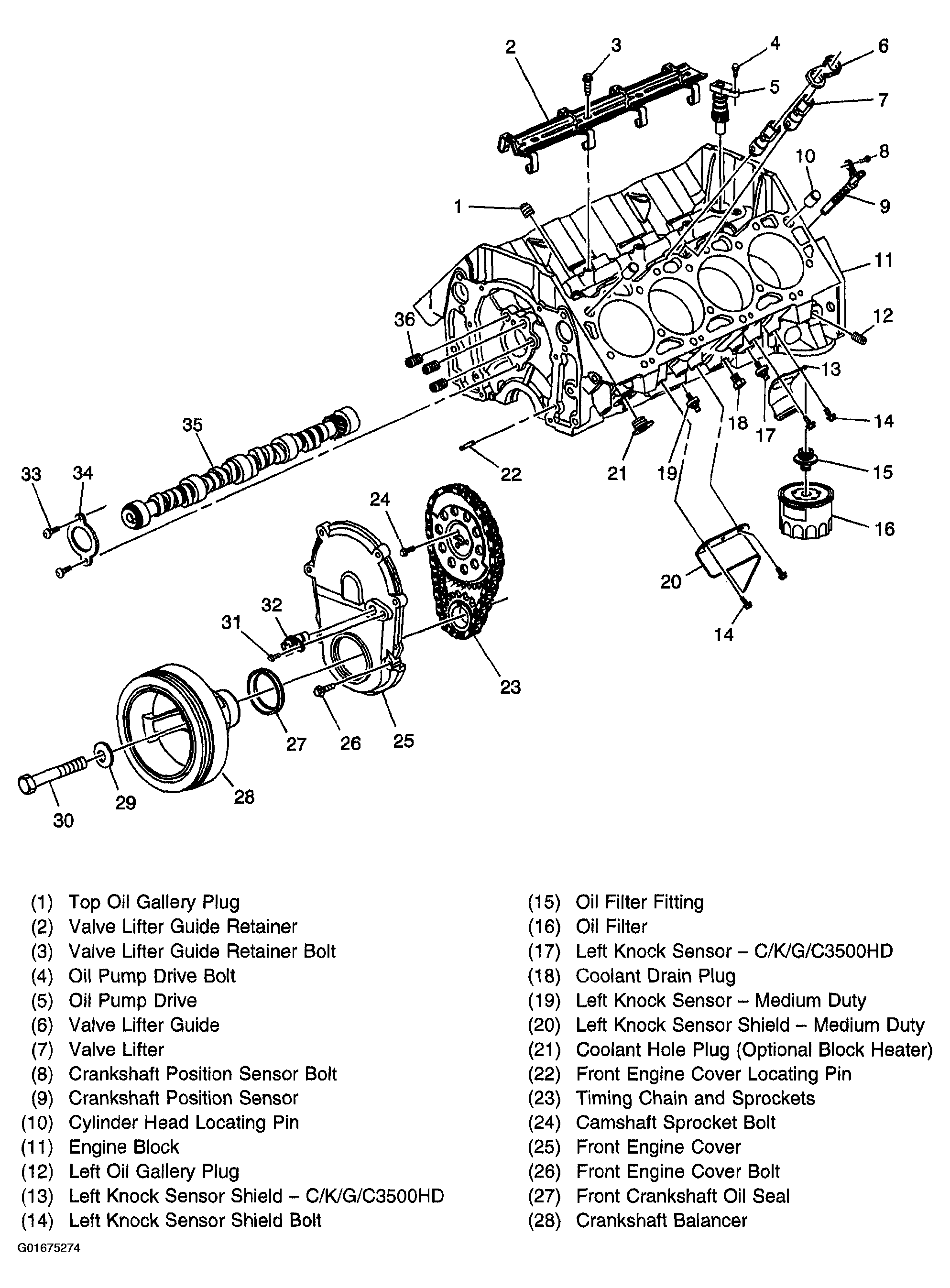

Fig 5: Lower Engine Block & Components

Courtesy of GENERAL MOTORS CORP.
