Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent container.
  2. Remove the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT .
  3. Disconnect the washer hose from the washer pump.
  4. Disconnect the electrical connector from the washer pump.

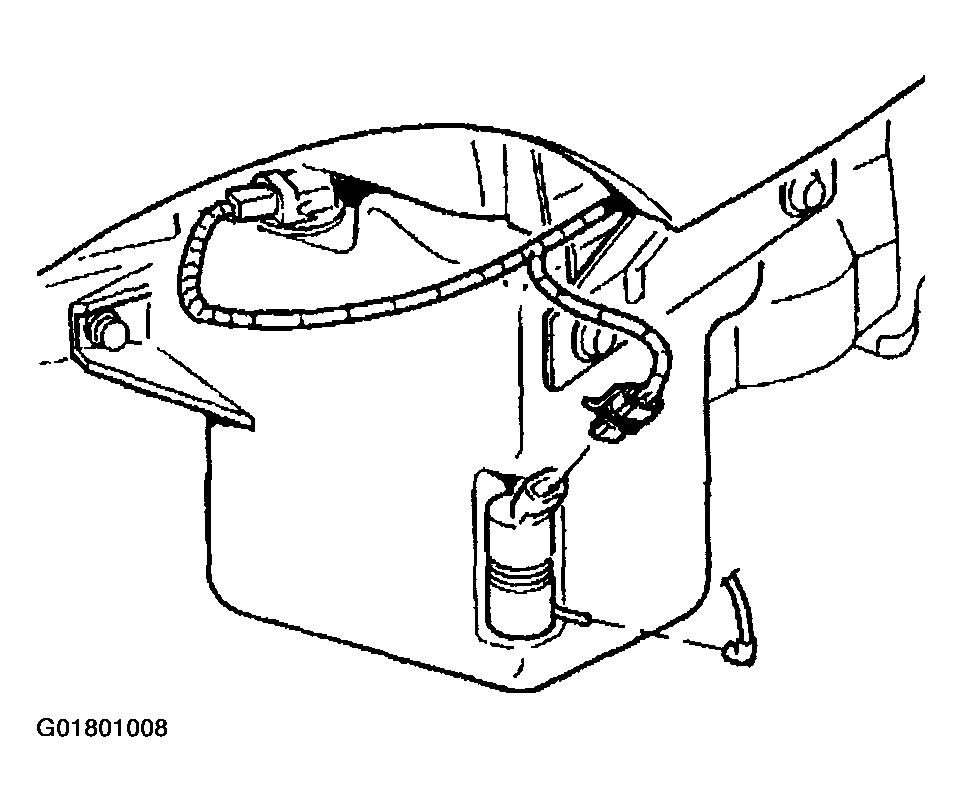

    Fig 1: Disconnecting Electrical Connectors
    G01801008Courtesy of GENERAL MOTORS CORP.
  5. Remove the washer pump from the washer solvent container.
    Fig 2: Removing Washer Pump
    G01801009Courtesy of GENERAL MOTORS CORP.
