Body Rear End Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

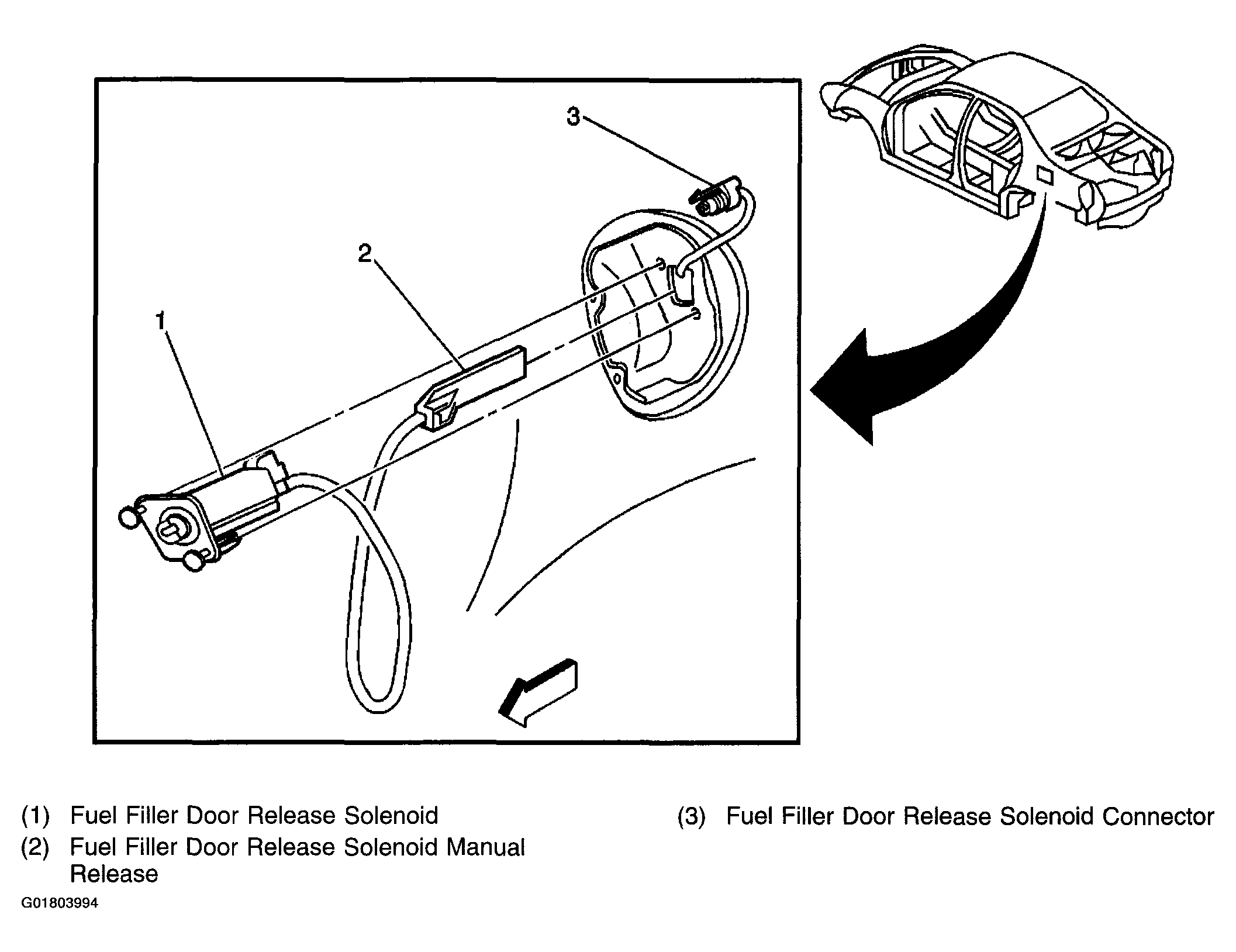

Fig 1: Fuel Filler Door Release Solenoid
G01803994Courtesy of GENERAL MOTORS CORP.

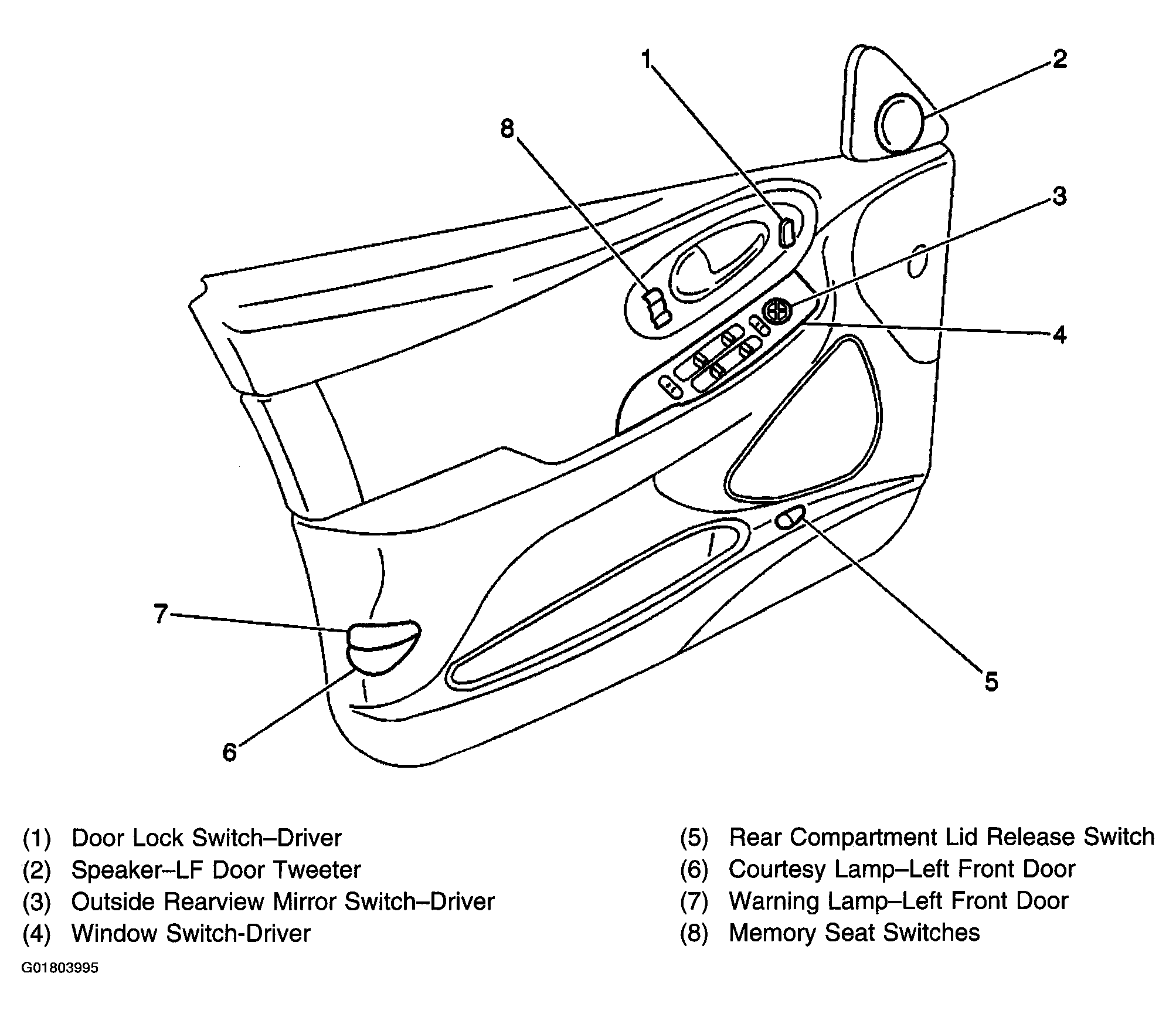

Fig 2: Left Front Door Trim Panel
G01803995Courtesy of GENERAL MOTORS CORP.

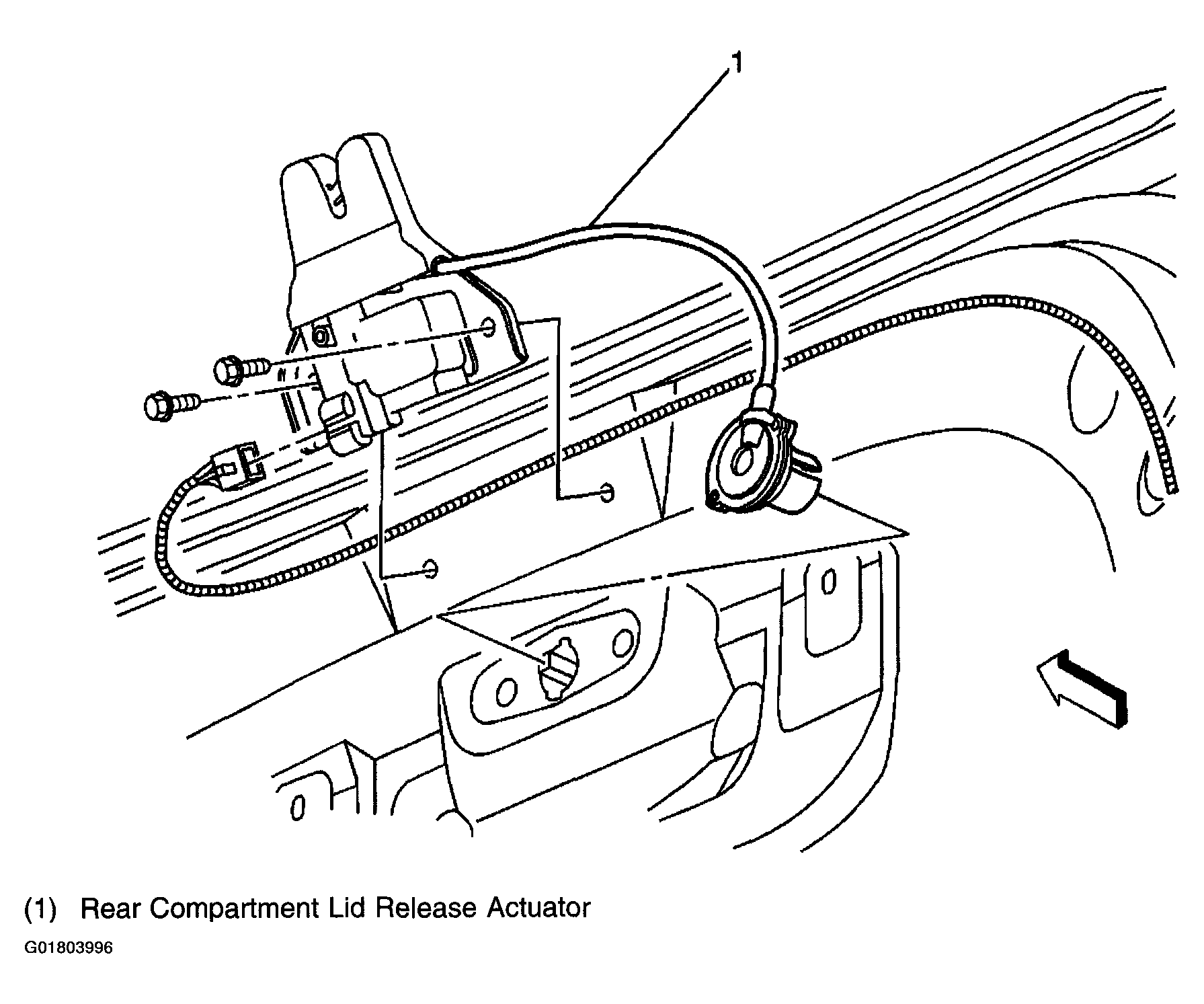

Fig 3: Rear Compartment
G01803996Courtesy of GENERAL MOTORS CORP.
