Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the electrical connector from the power window motor (2).
  4. Remove the nuts (3) that retain the power window motor (2) to the front door module (1).
  5. Remove the power window motor (2) from the vehicle.

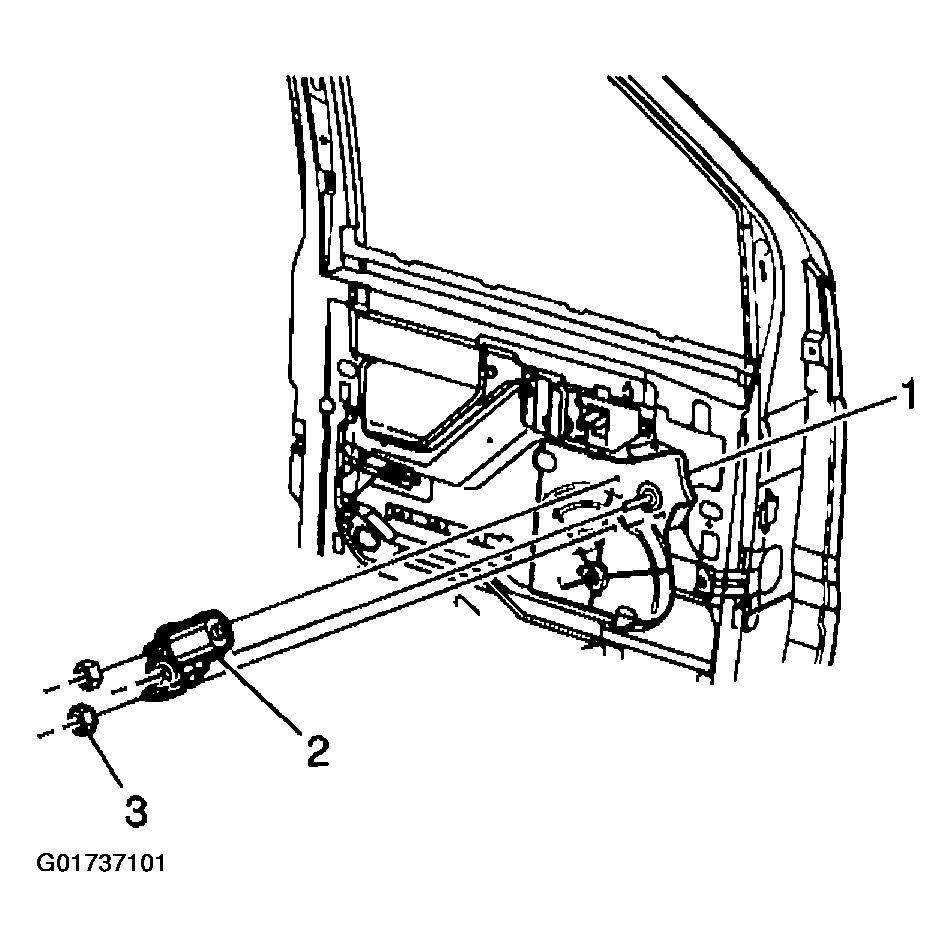

Fig 1: Removing Power Window Motor
G01737101Courtesy of GENERAL MOTORS CORP.
