Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger seat from the vehicle.
  2. Pull the carpet back to gain access to the sensor.
  3. Remove the nuts retaining the yaw rate sensor/lateral accelerometer (2) to the vehicle.

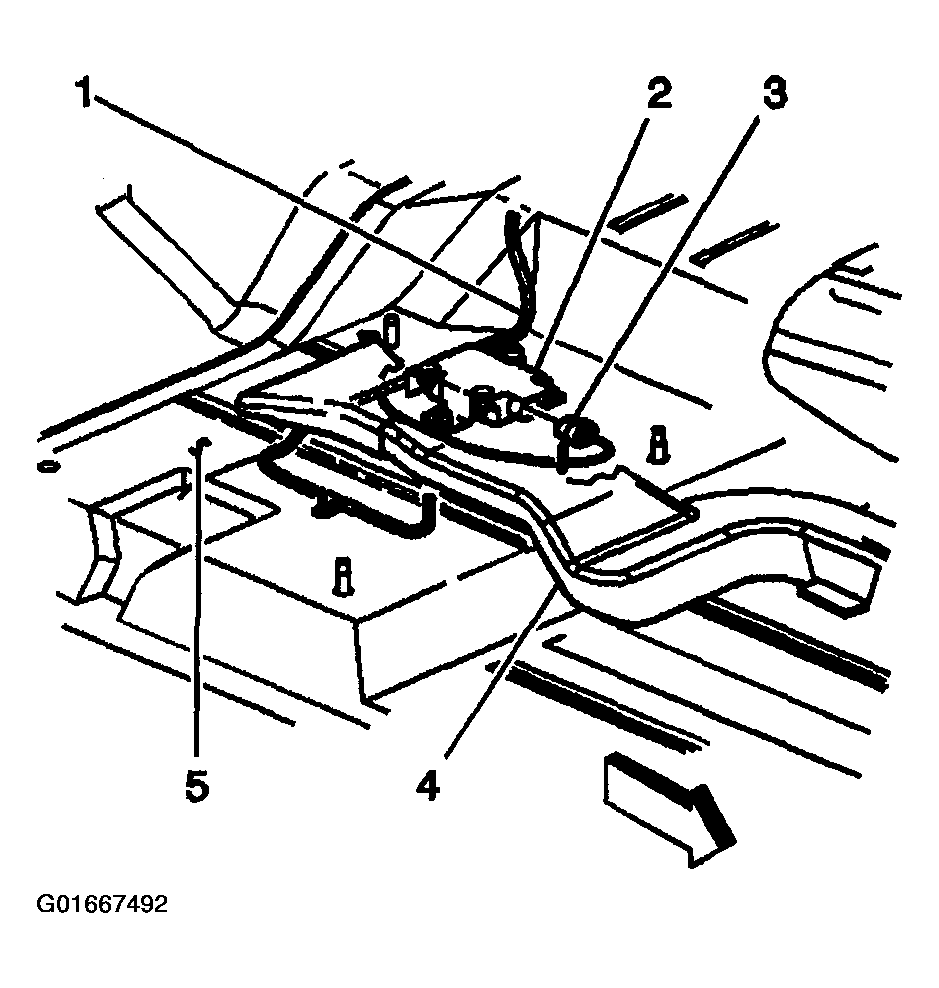

    Fig 1: Locating Yaw Rate Sensor/Lateral Accelerometer
    G01667492Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the yaw rate sensor/lateral accelerometer.
  5. Remove the yaw rate sensor/lateral accelerometer from the vehicle.

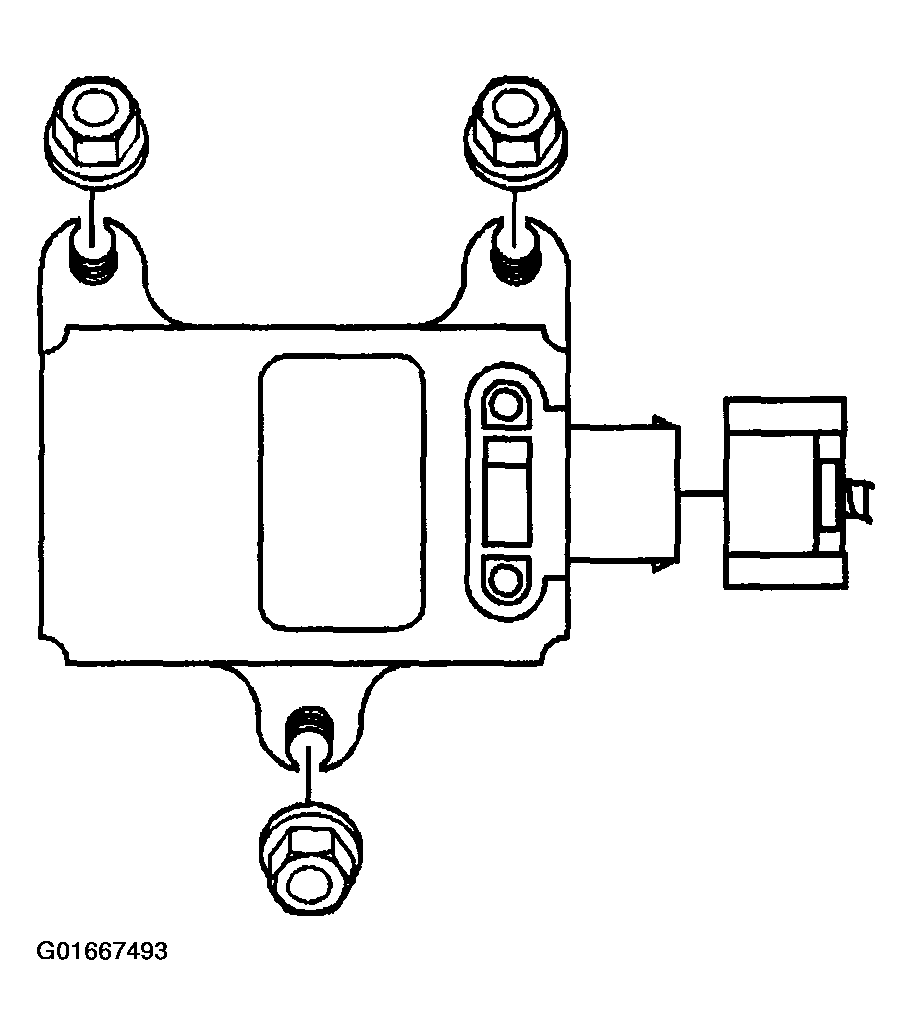

    Fig 2: Yaw Rate Sensor/Lateral Accelerometer
    G01667493Courtesy of GENERAL MOTORS CORP.
