Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the bolts (3) retaining the steering gear protection shield to the steering gear.
  3. Remove the steering gear protection shield from the vehicle.

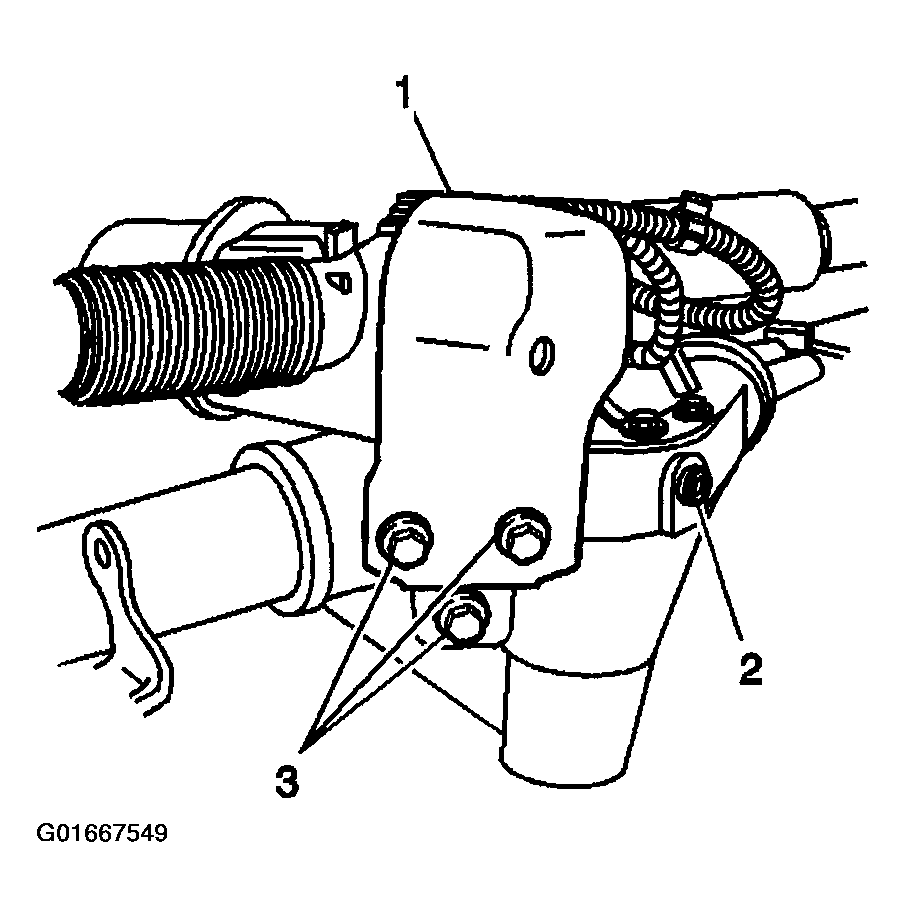

    Fig 1: Steering Gear Protection Shield
    G01667549Courtesy of GENERAL MOTORS CORP.
