Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hoses from the steering gear.
  2. Disconnect the intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
  3. Raise the vehicle. Support the vehicle with suitable safety stands.
  4. Remove the engine protection shield, if equipped.
  5. Remove the pitman arm from the steering gear. Refer to PITMAN ARM REPLACEMENT (RWD) or PITMAN ARM REPLACEMENT (4WD) .

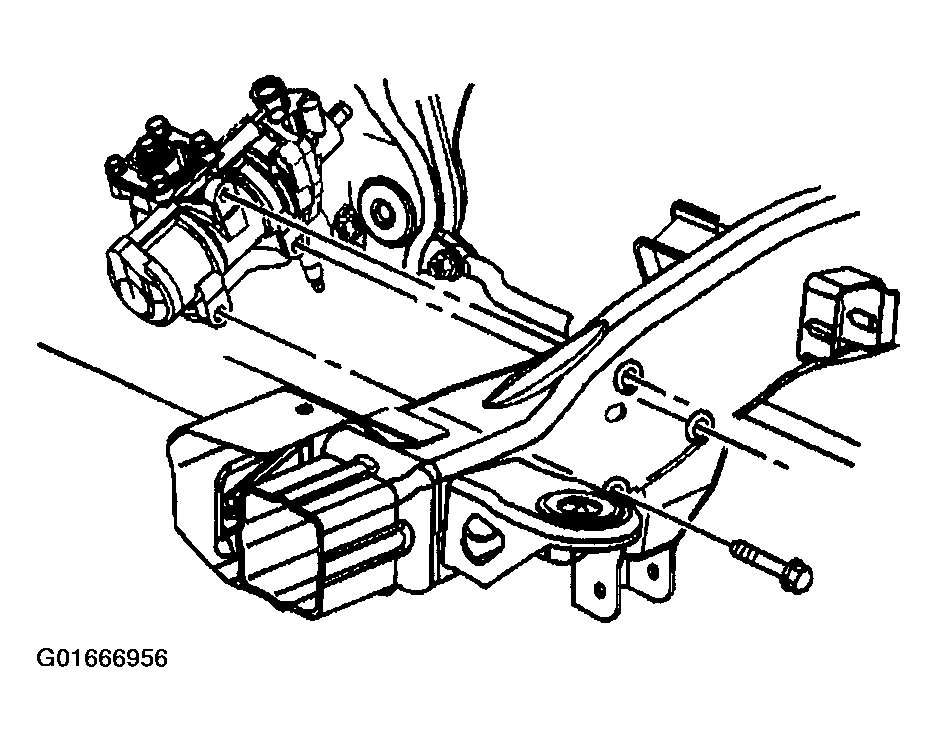

    6. Fig 1: Steering Gear Assembly
    G01666956Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts retaining the steering gear to the frame.
  7. Remove the steering gear from the vehicle.
