Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3.  Use the scan tool to check the normal state of the ABS indicator control circuit.
  2. 4.  Ensures that the instrument cluster can operate the ABS indicator.

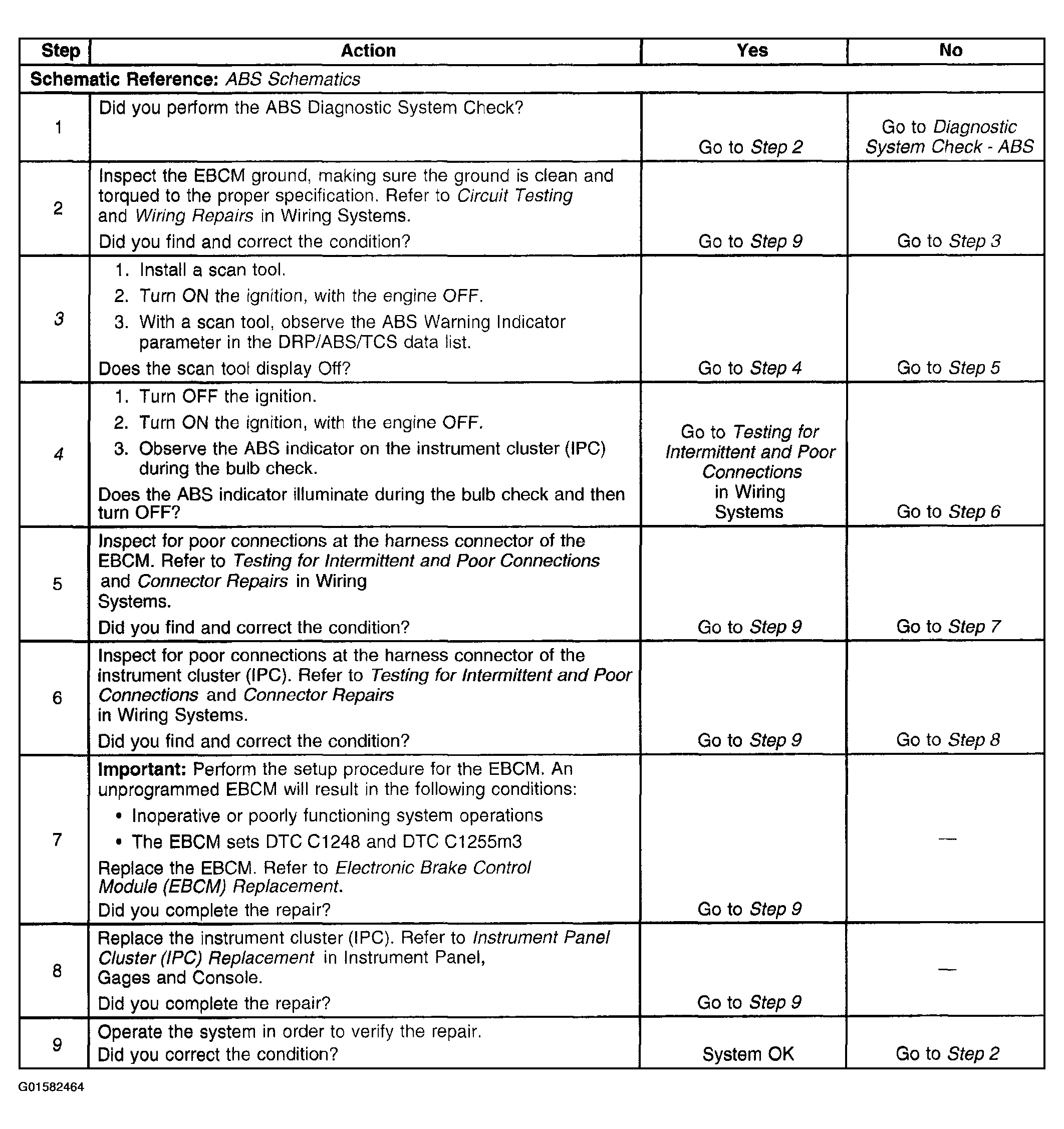

Fig 1: ABS Indicator Inoperative
G01582464Courtesy of GENERAL MOTORS CORP.
