Interior Backlighting Inoperative

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

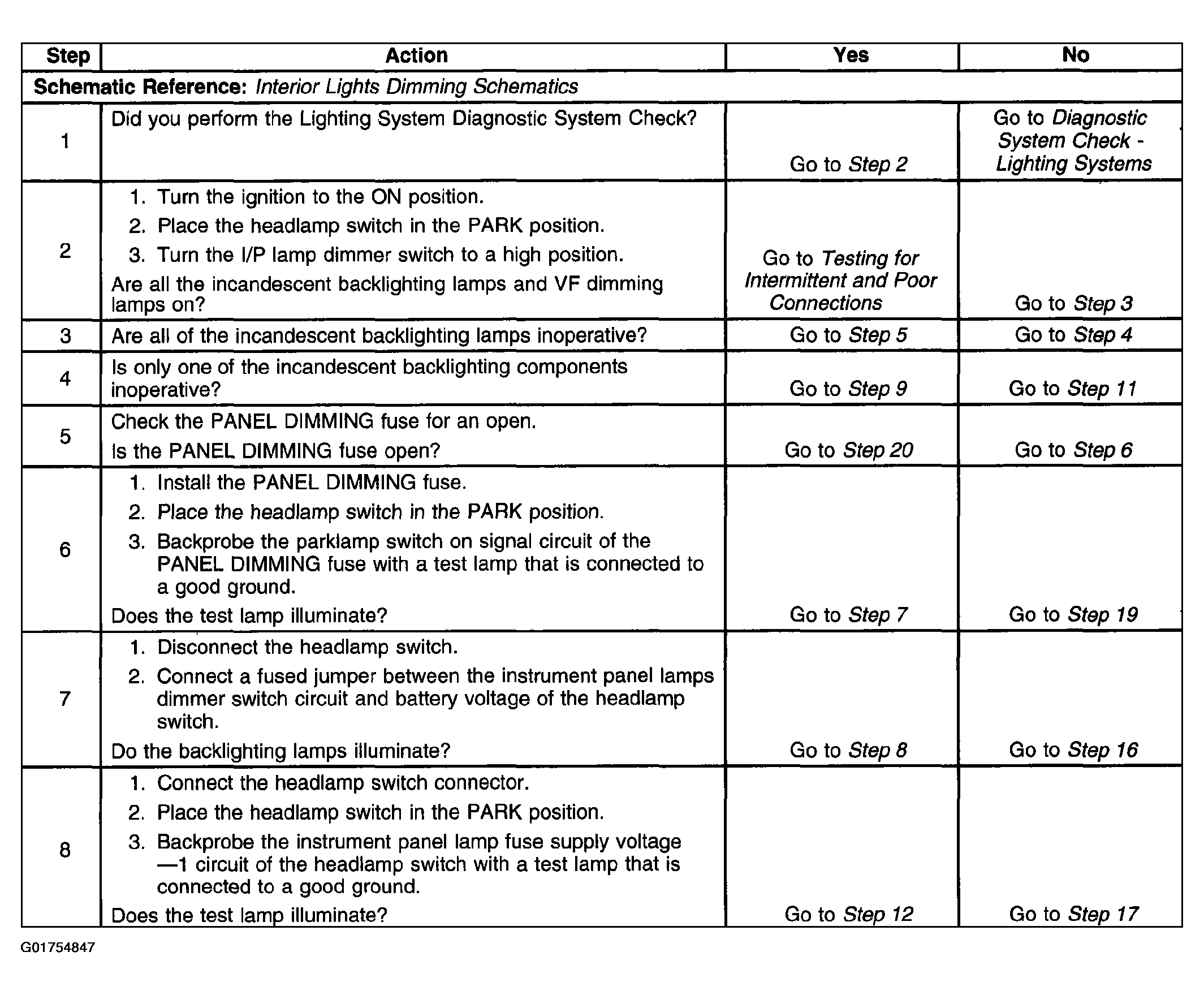

Fig 1: Identifying Interior Backlighting Inoperative Diagnostic Table (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

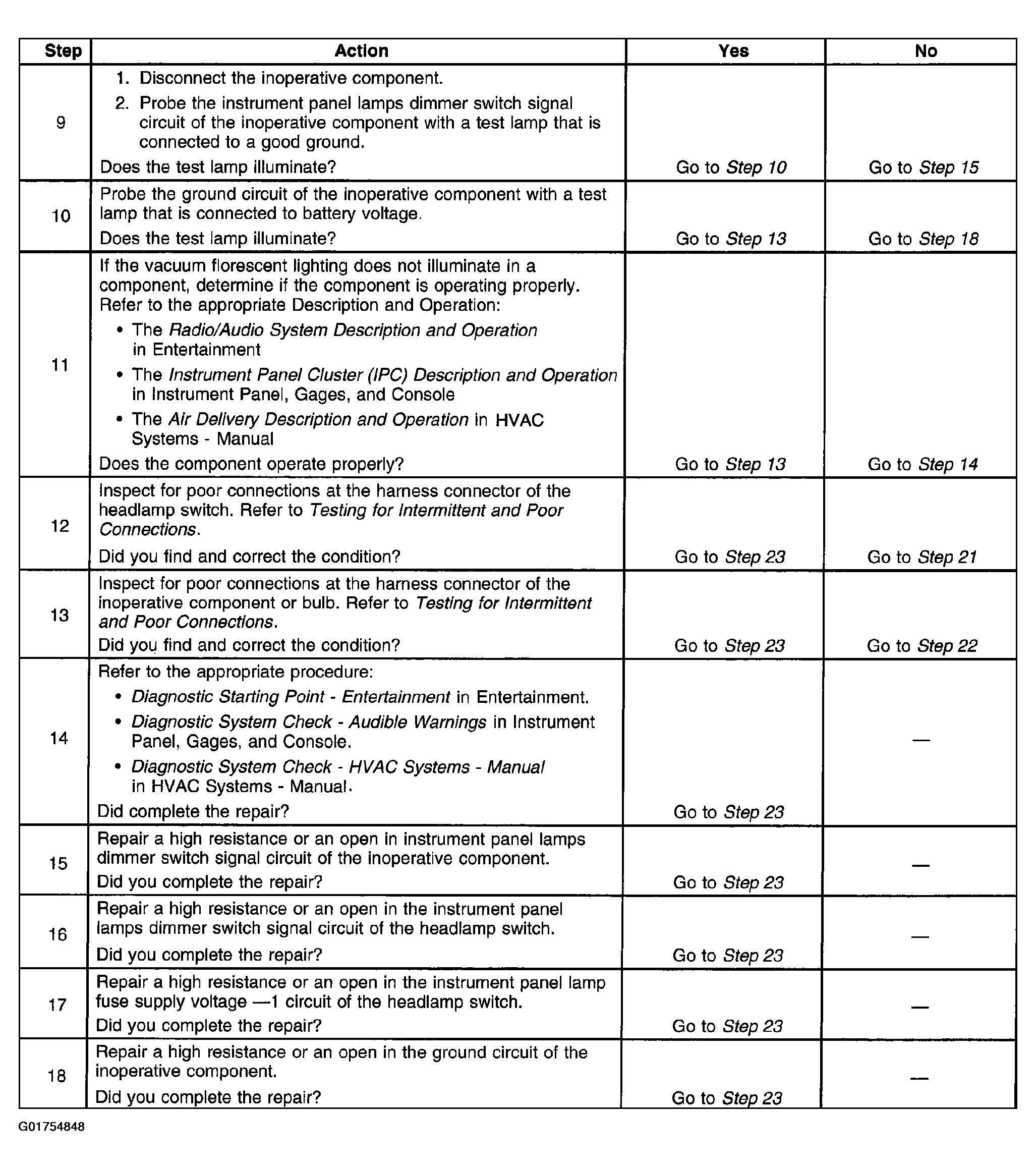

Fig 2: Identifying Interior Backlighting Inoperative Diagnostic Table (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

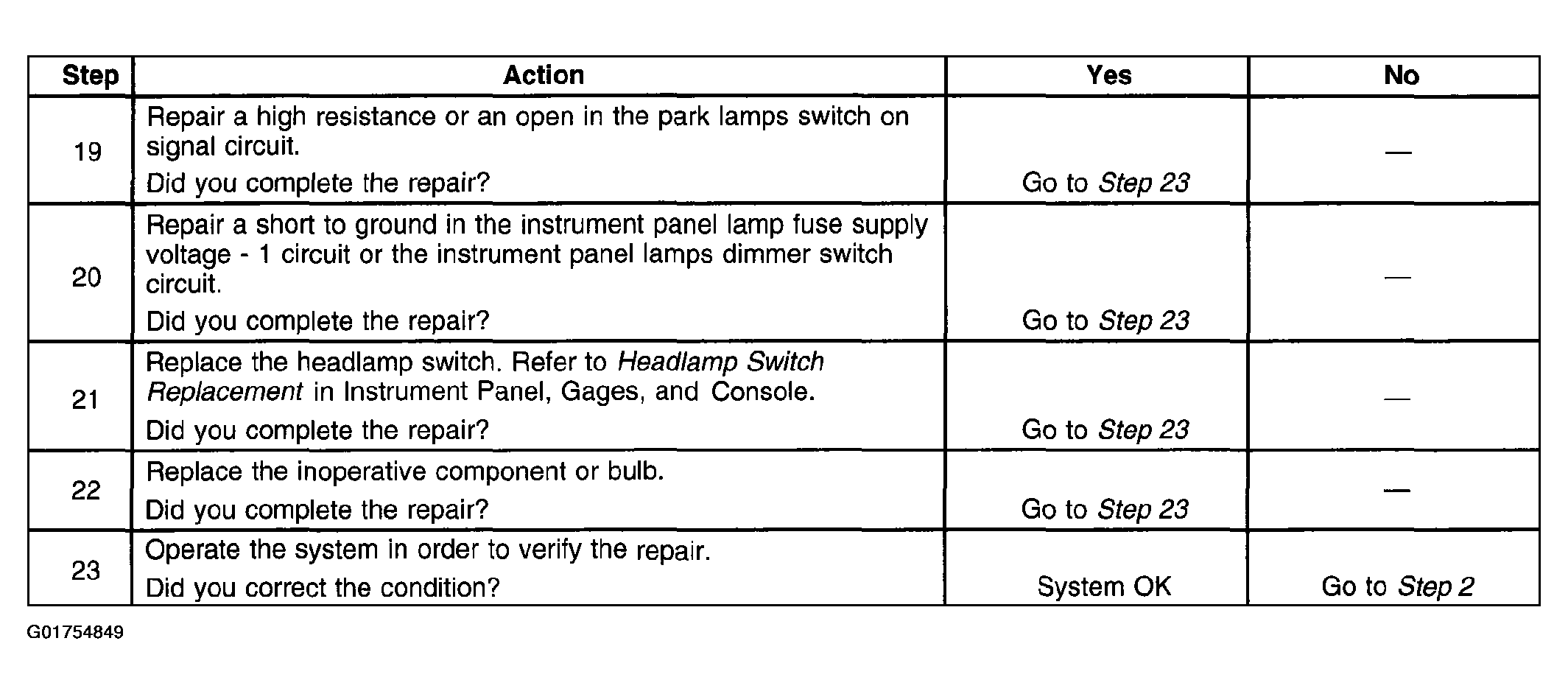

Fig 3: Identifying Interior Backlighting Inoperative Diagnostic Table (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
