Tie-Rod End Ball Joint Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tie-rod end locknut.
  2. Detach the tie-rod end from the steering knuckle using the SST.

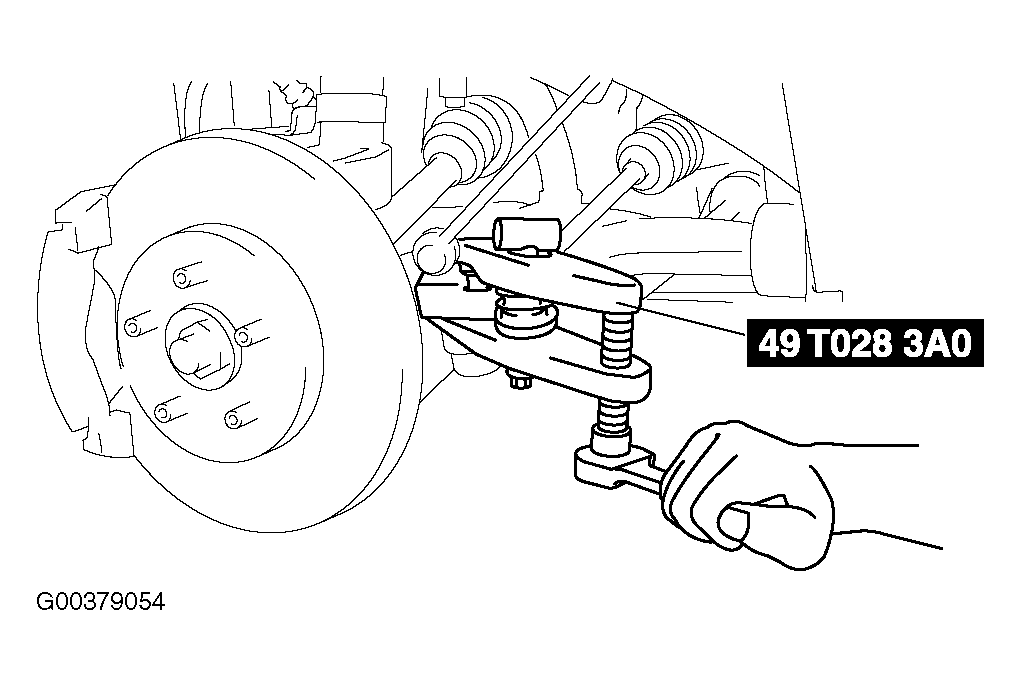

Fig 1: Removing Tie-Rod End Ball Joint
G00379054Courtesy of MAZDA MOTORS CORP.
