Engine Mount Strut and Air Conditioning Compressor Bracket Installation

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut and A/C Compressor bracket.
  2. Install the engine mount strut and A/C Compressor bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 50 N.m (37 ft. lbs).

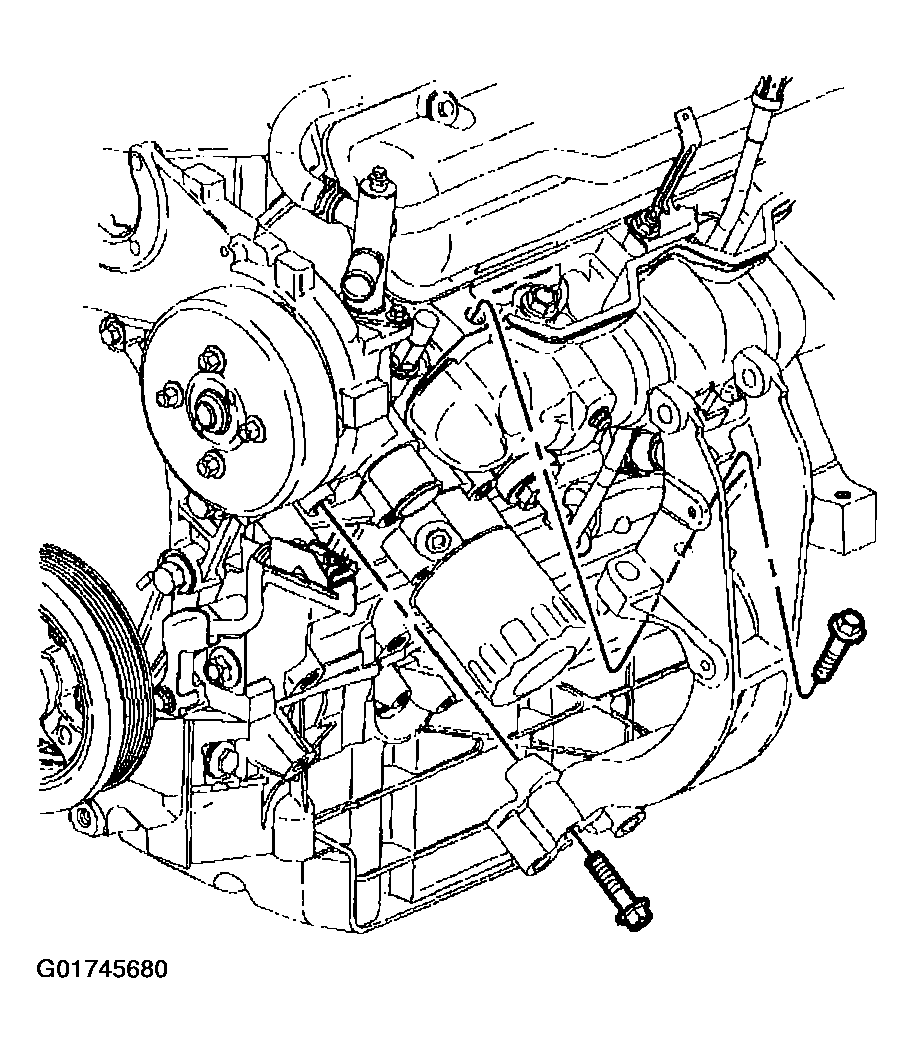

    Fig 1: Installing Engine Mount Strut And A/C Compressor Bracket
    G01745680Courtesy of GENERAL MOTORS CORP.
