Engine Flywheel Removal

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel bolts.
  2. Remove the flywheel retainer.
  3. Remove the flywheel.

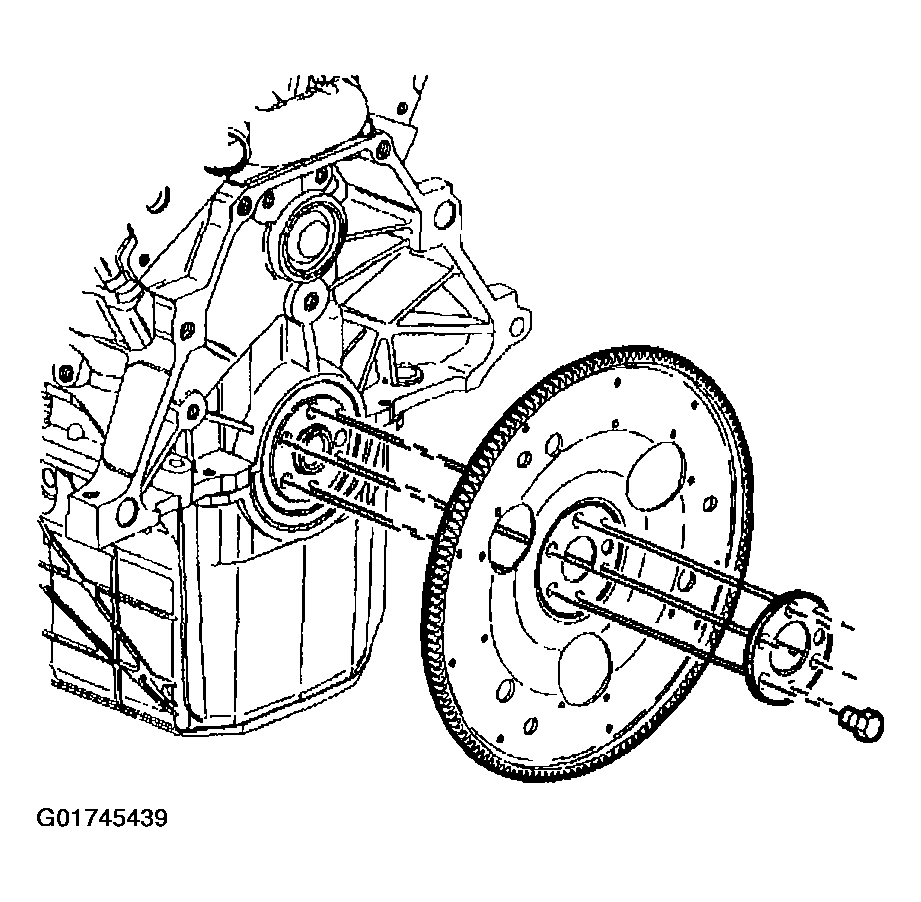

    Fig 1: Removing The Flywheel Bolts
    G01745439Courtesy of GENERAL MOTORS CORP.
