R-134a SERVICE VALVES/PORTS
WARNING: This page does not describe the selected car, but rather 125 other vehicles, including the 2003 Dodge Ram Van, 2002 Saturn Vue, 2002 Saturn SL2, 2002 Saturn SL1, and 2002 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles with R-134a refrigerant use quick-disconnect service valves/ports. All R-134a systems use quick-disconnect fittings with sealing caps that thread into inside of service port instead of onto outside of service port.

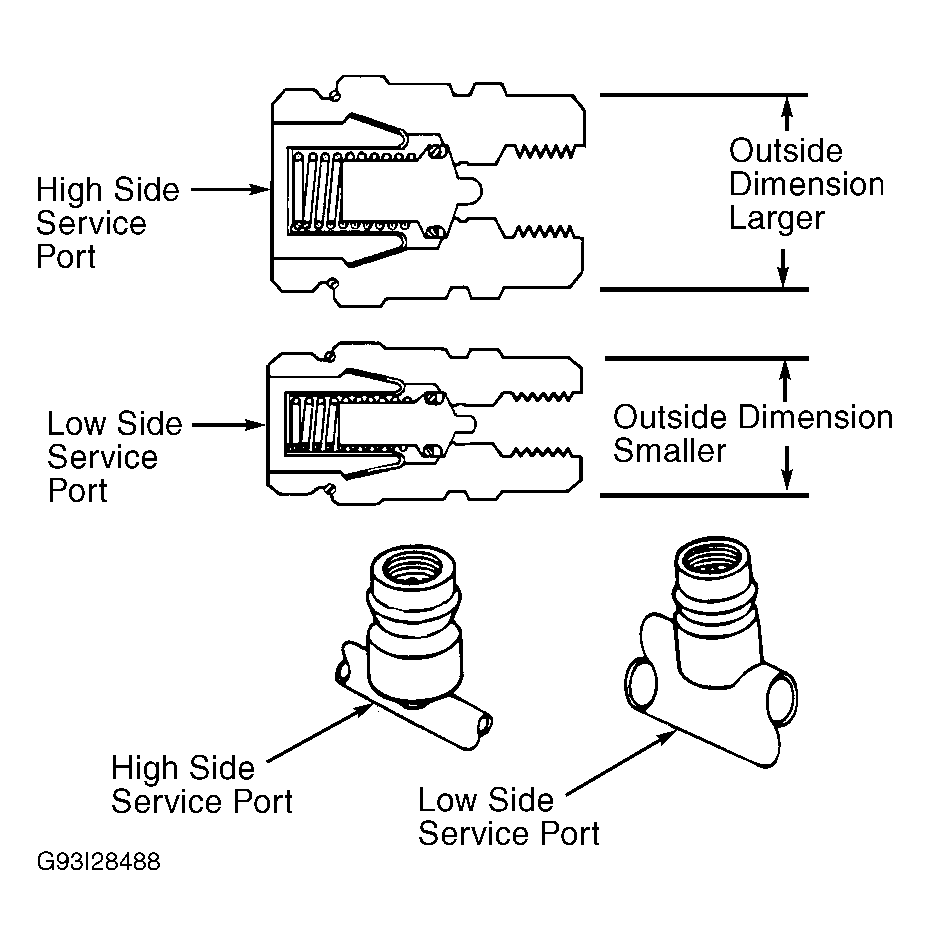

The high side uses a large service port and the low side uses a small service port. See Figure. The R-134a service ports have internal metric threads to help prevent the accidental connection of R-12 servicing equipment.

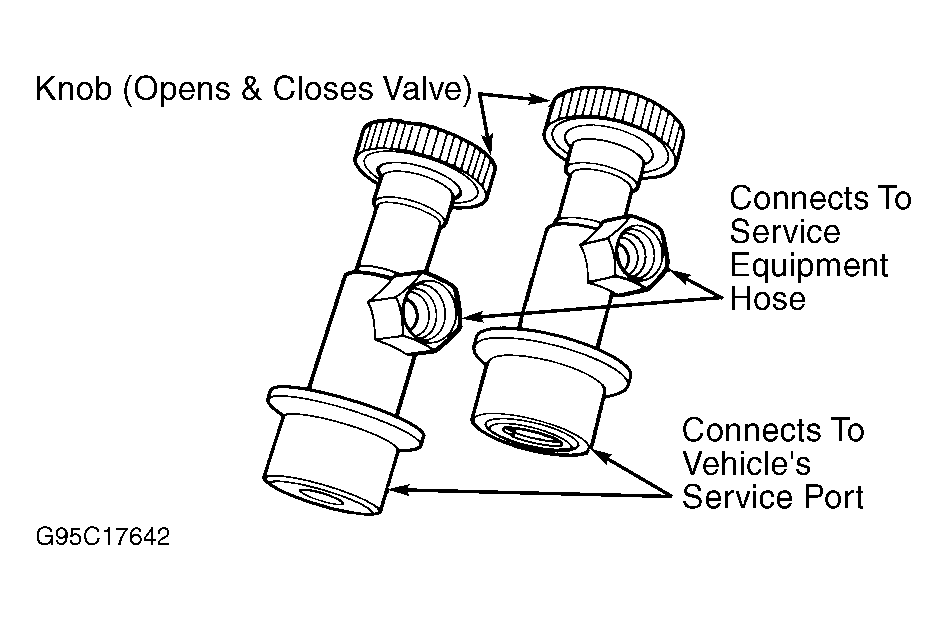

There are 2 types of quick-disconnect service couplings which can be used on R-134a systems. One type of service coupling depresses service port valve when connection is made. The other type connects onto service port but will not depress service port valve until a knob is rotated. See Fig 1.
