Cruise Control Cable (3.5L V6): Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

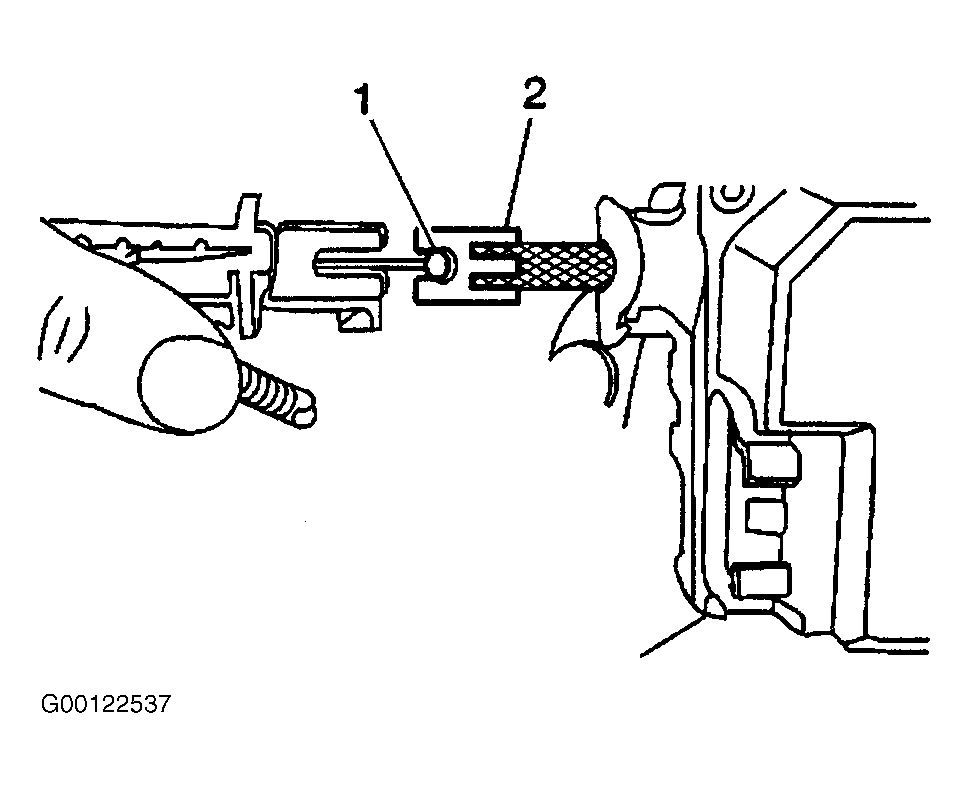

- Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2). See Fig 2.
- Insert the cruise control cable housing into the cruise control module, and twist clockwise to secure.
- Connect the cruise control cable to the throttle body cam.
- Snap the cable clip to the throttle body bracket.
- Install the cable to the retainers.
- Adjust the cruise control cable. See CRUISE CONTROL CABLE under ADJUSTMENTS.
