Air Cleaner Assembly: Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

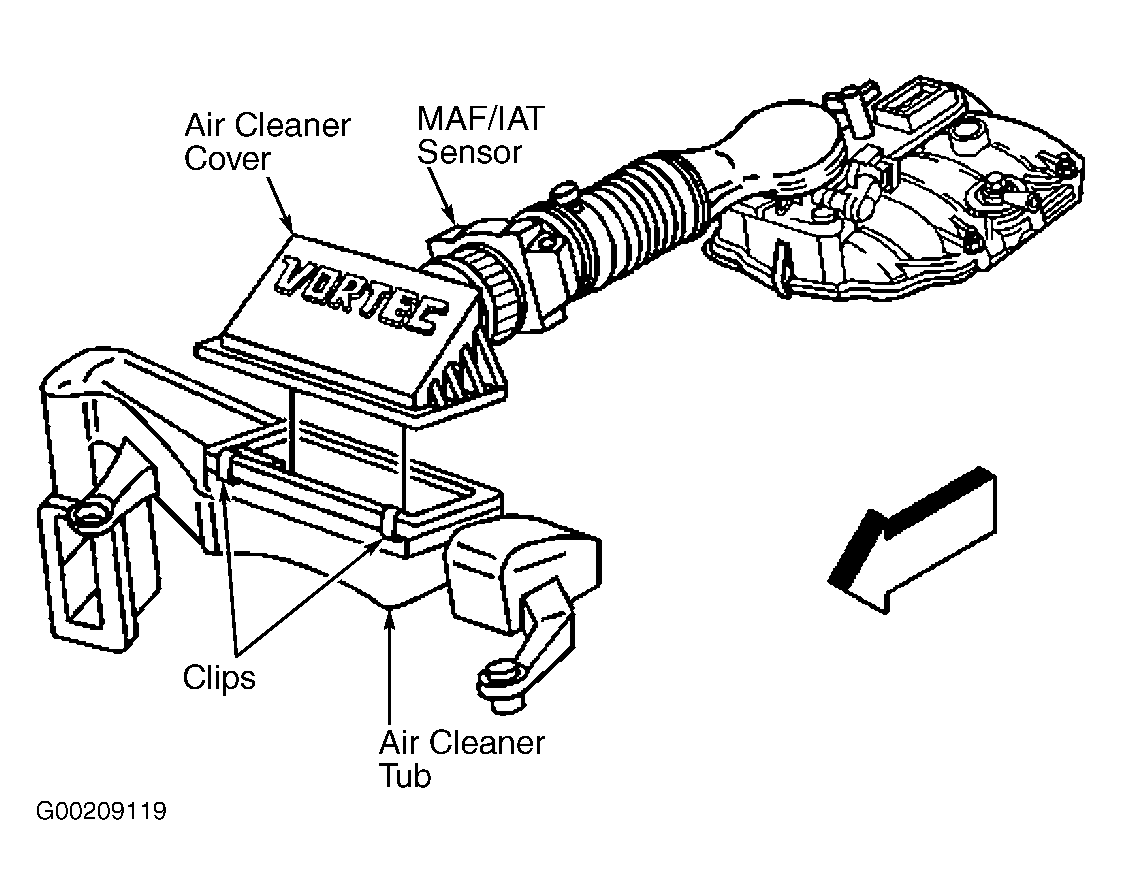

Install the air cleaner tub by pressing downward on the tub until the grommets are seated on the mounting studs. See Fig 1 . Insert the air cleaner element into the air cleaner tub. Install the air cleaner cover which contains the MAF and IAT sensors. Tighten the clamp to specification. See TORQUE SPECIFICATIONS . Install the air cleaner cover. Fasten the air cleaner cover retainer clips. Connect the MAF and IAT sensor harness connectors. Connect the negative battery cable. Tighten battery cable to specification.
