EVAP Canister: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

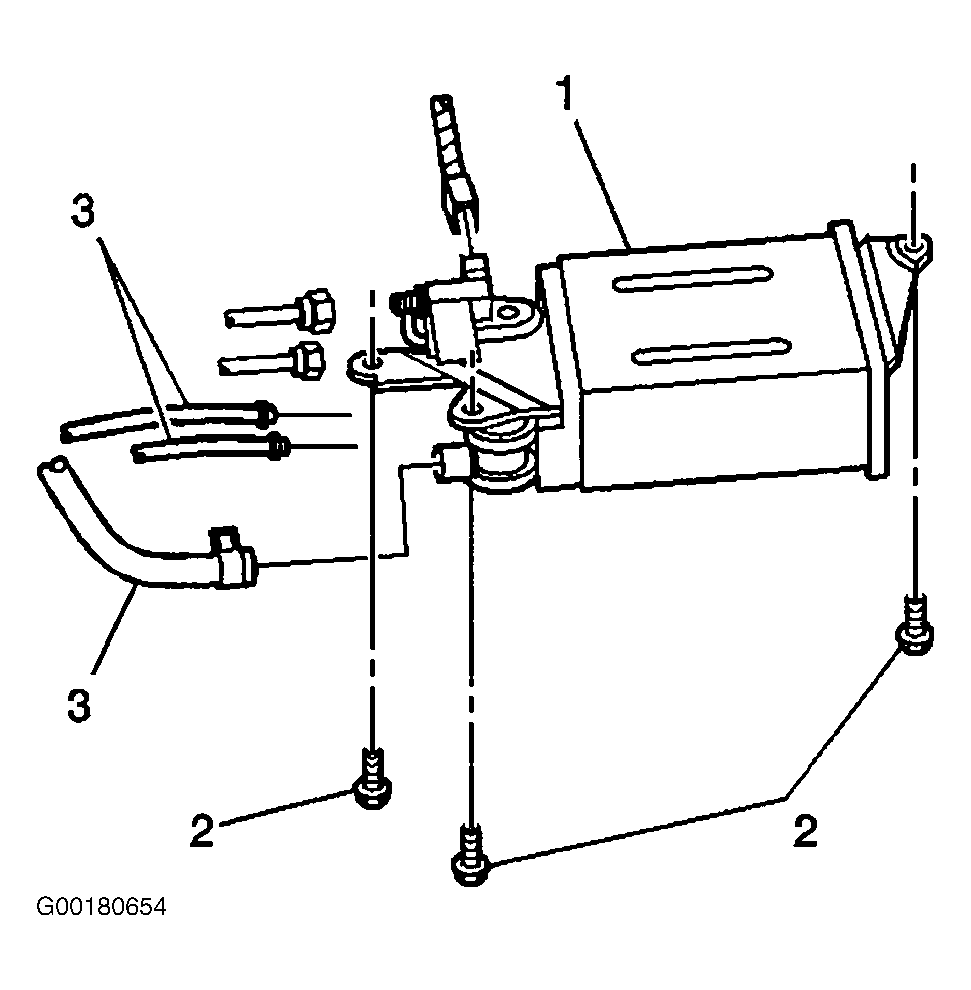

  1. Install EVAP canister (1) to vehicle underbody and secure with the 3 bolts (2).
  2. Tighten the EVAP canister bracket support bolts (2) to specification. See TORQUE SPECIFICATIONS  .
  3. Connect 3 EVAP hoses (3) to EVAP canister (1). See Figure .
  4. Connect EVAP pressure switching solenoid harness connector (4).

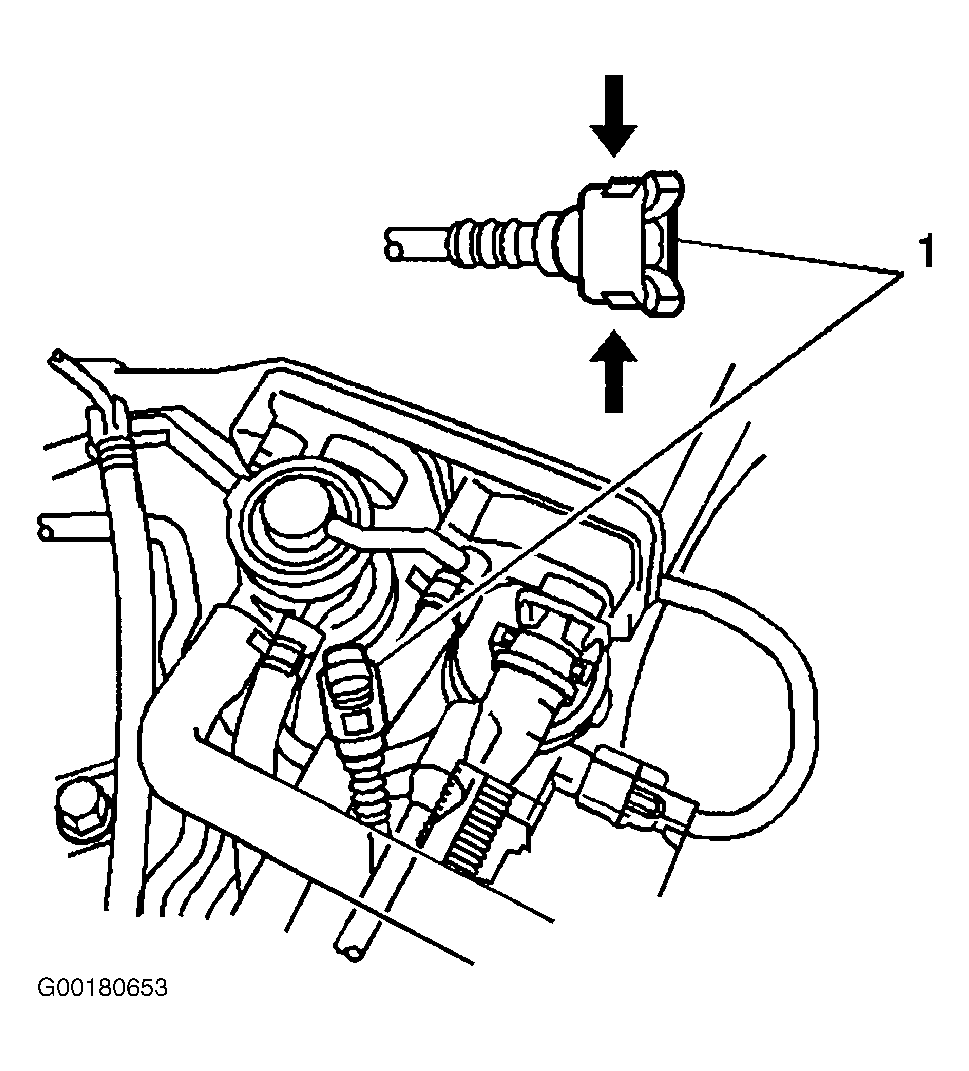

  5. Connect EVAP vapor line (1) to EVAP canister port by pinching both sides of the hose connector (1). See Figure .

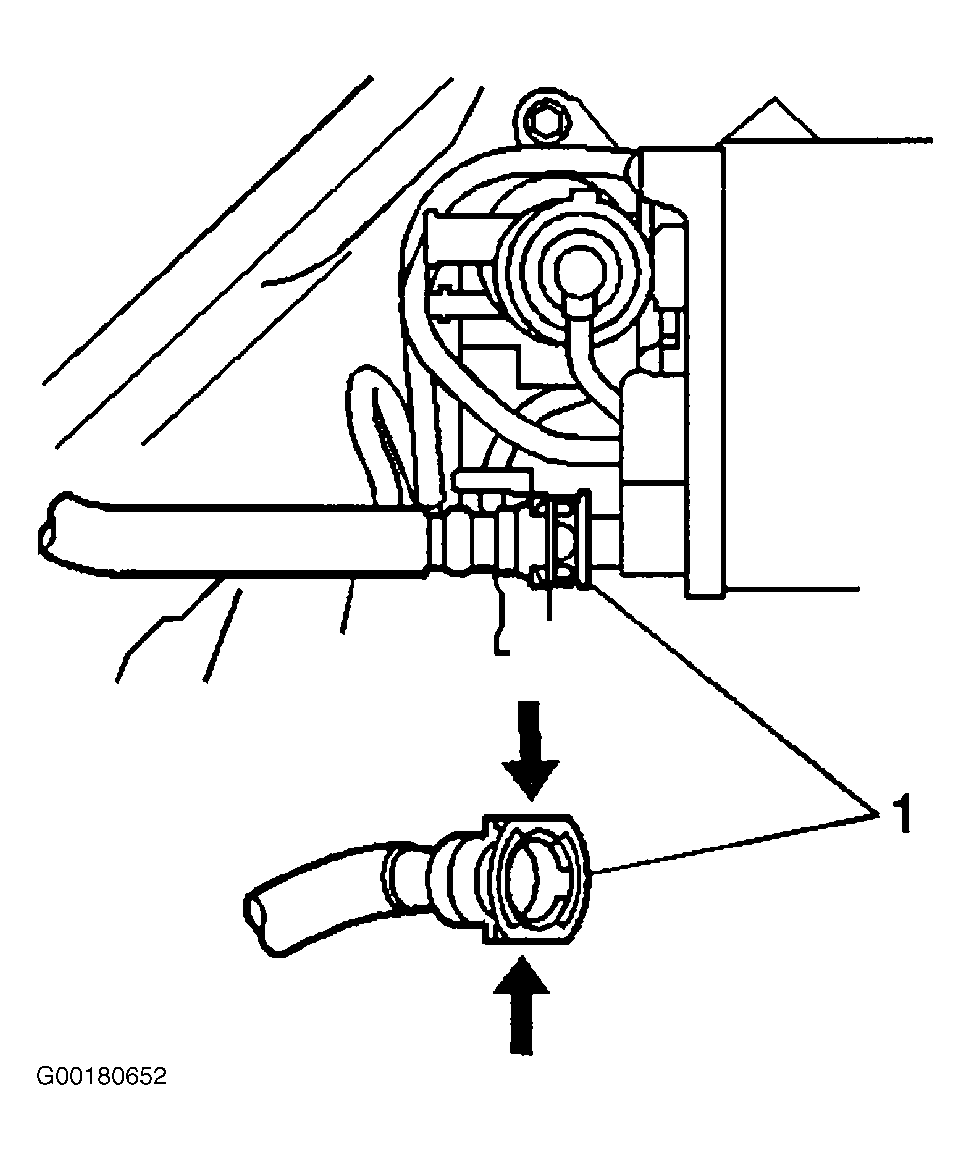

  6. Connect ORVR vent line (1) to EVAP canister port by pinching both sides of the hose connector (1). See Figure .
  7. Lower vehicle.
