Heated Seat Control Module - Driver (KA1)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

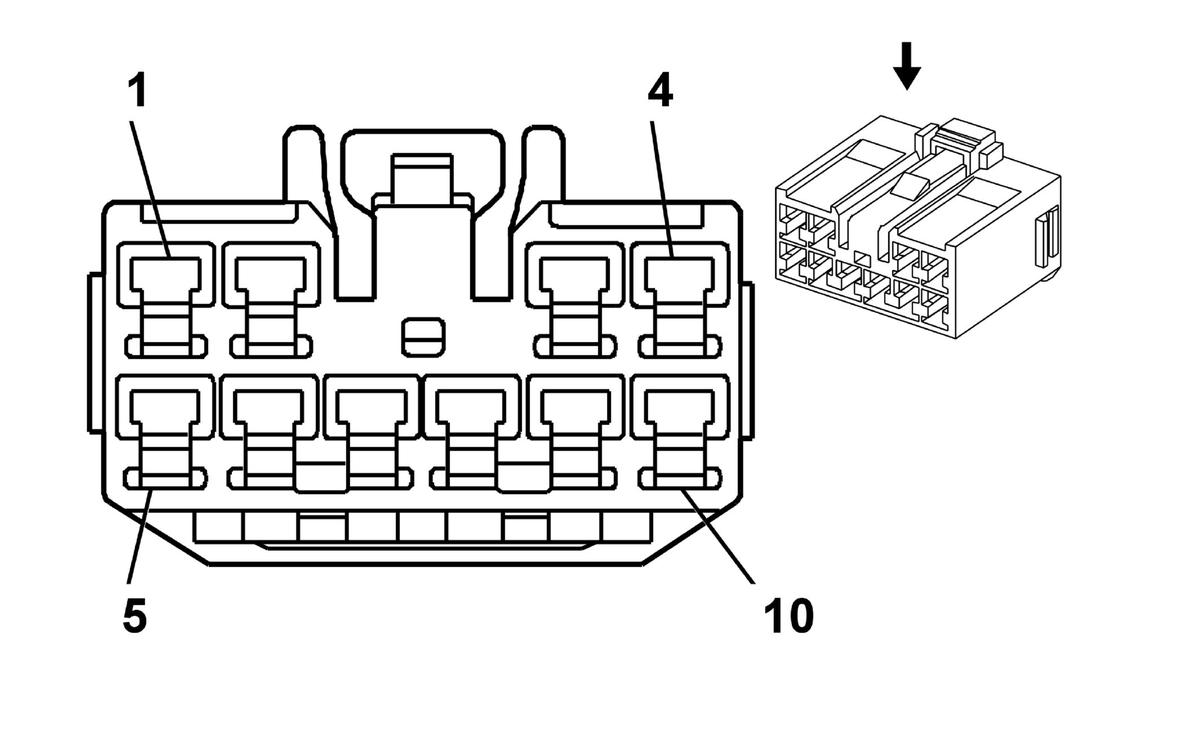

Fig 1: Heated Seat Control Module - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 YE	2079	Heated Seat Cushion Temperature Sensor Signal
2	0.35 D-BU	6172	Driver Heated Seat Switch Signal
3	1 RD	2077	Heated Seat Cushion Element control
4	1 RD/WH	640	Battery Positive Voltage
5	1 BK	450	Ground
6	0.35 PK	2080	Low Reference
7	0.35 D-GN	1661	Driver Heated Seat High Temperature Indicator Control
8	0.35 WH/BK	6177	Driver Heated Seat Medium Temperature Indicator Control
9	0.35 L-GN	1662	Driver Heated Seat Low Temperature Indicator Control
10	0.35 BN	41	Ignition 3 Voltage

Connector Part Information

OEM: MG651056
Service: 88952443
Description: 10-Way F 090 II Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
