Interior Lights Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

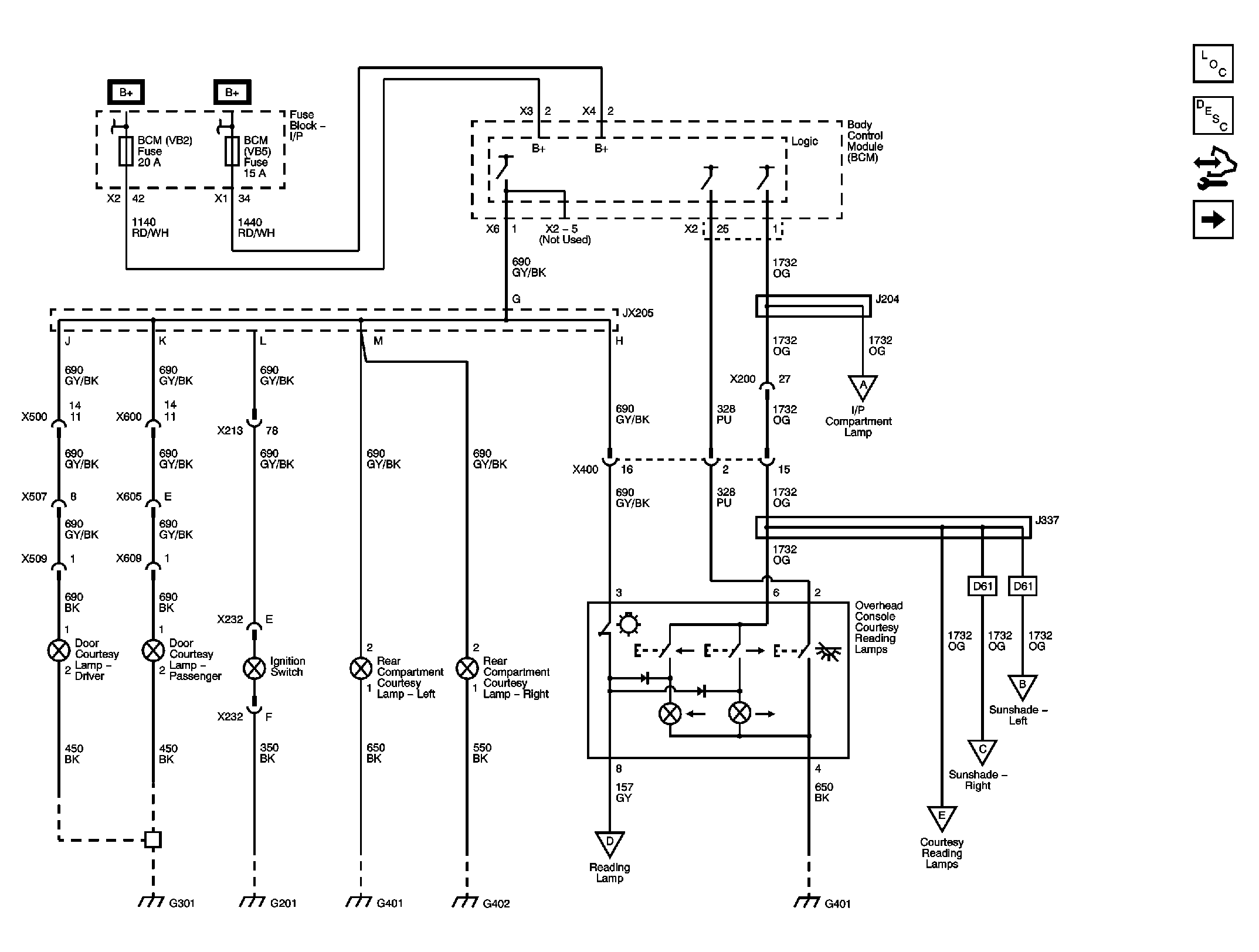

Fig 1: Interior Lighting 1 of 2
GM2079465Courtesy of GENERAL MOTORS CORP.

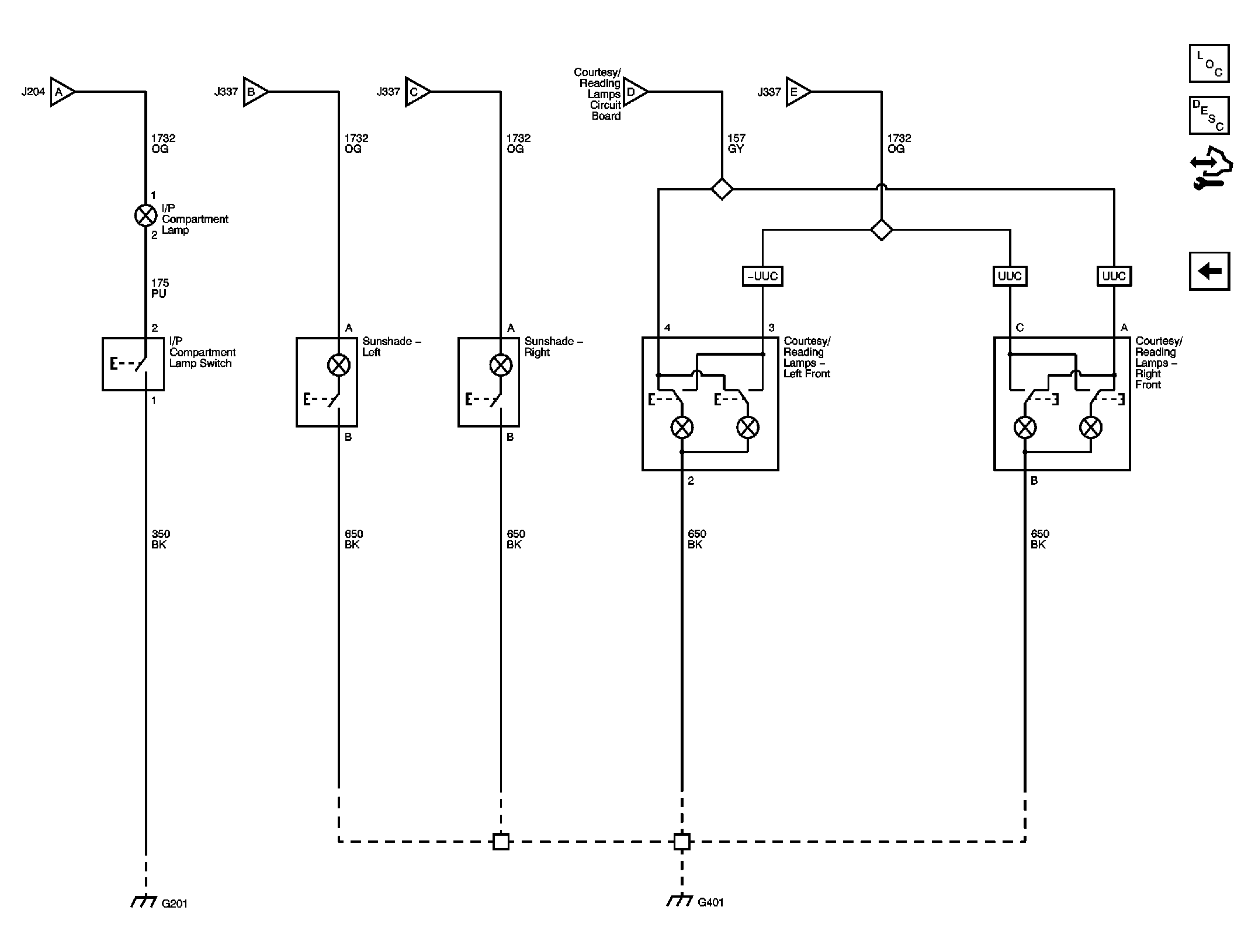

Fig 2: Interior Lighting 2 of 2
GM2079468Courtesy of GENERAL MOTORS CORP.
Fig 3: Under Seat Lamps (C2B)
GM2079470Courtesy of GENERAL MOTORS CORP.
