Rear Side Marker Lamp Bulb Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

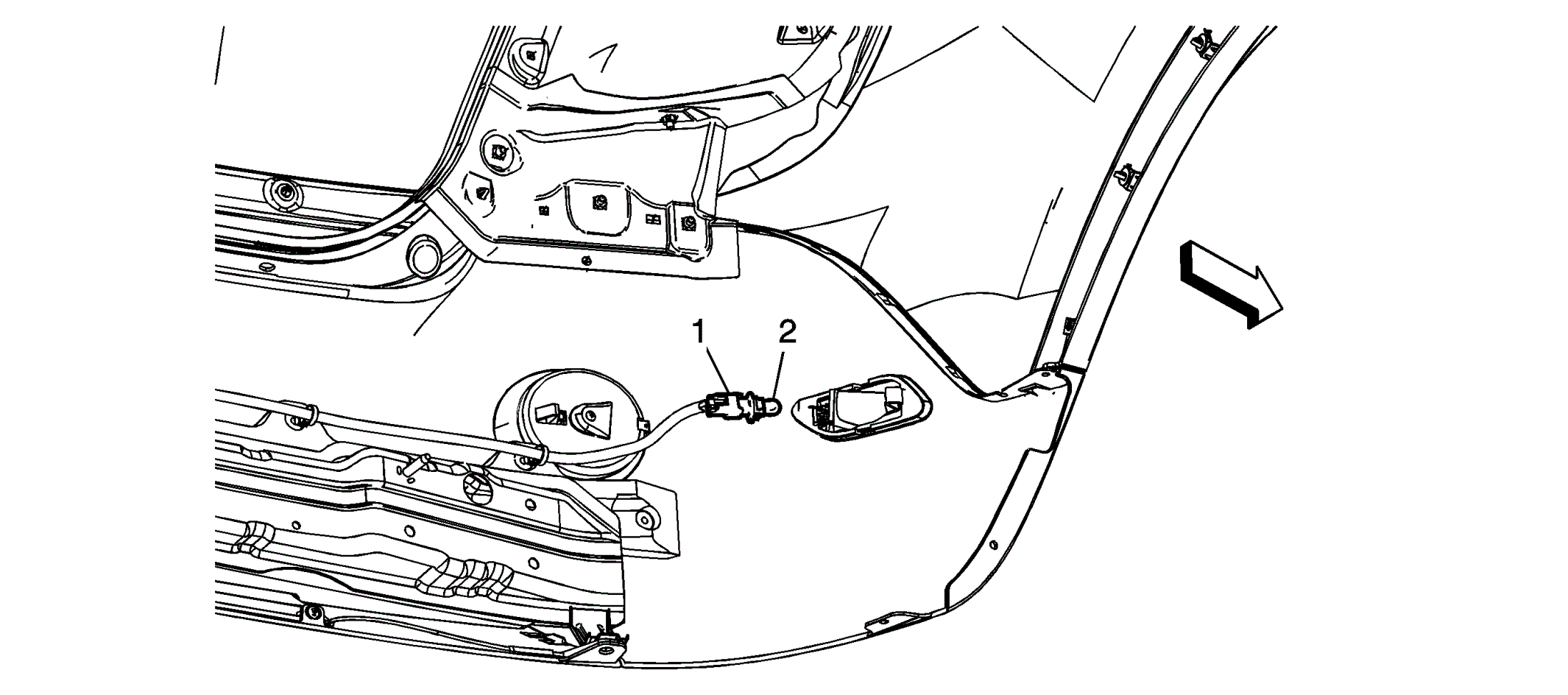

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Side Marker Lamp Assembly Bulb Socket Tip: Rotate the bulb socket a quarter turn counter-clockwise and remove. |
| 2 | Rear Side Marker Lamp Bulb |
