Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Disconnect/Connect Inside Handle Rod & Lock Rod From Latch Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the inside handle rod and lock rod to the latch assembly.
Connect the latch wiring pig tail at the latch, if equipped.

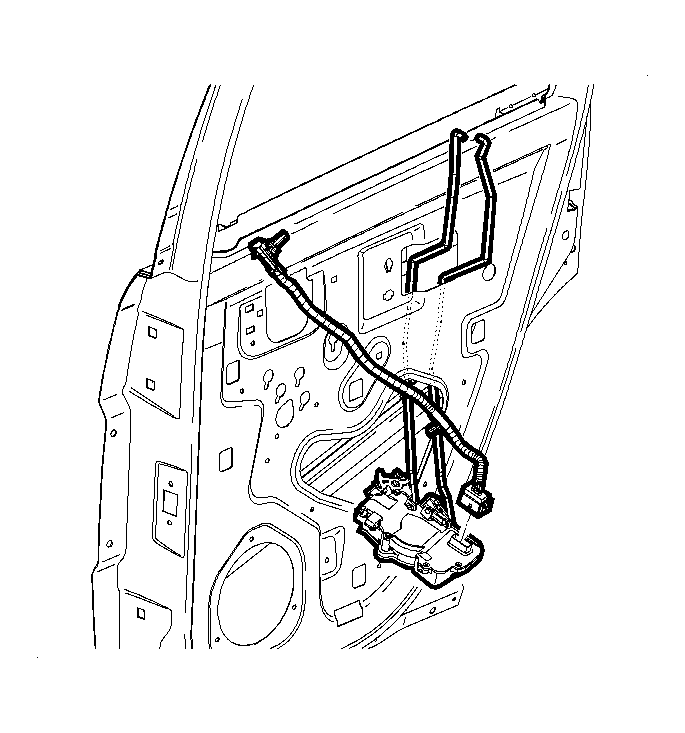

Fig 2: Removing/Installing Rear Door Latch Assembly With The Inside Handle

Courtesy of GENERAL MOTORS CORP.

Install the rear door latch assembly with the inside handle and lock rod attached by doing the following:
- Position the lock rods into the lower opening in the door structure and out at the lock rod pass through hole.
- Position the latch into the door structure through the lower opening.
- Rotate the latch into position.

Fig 3: Removing/Installing Door Latch Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the screws to the latch mechanism.
Tighten the top screw first, the bottom screw second, and the middle screw last.
Tighten: Tighten screws to 12 N.m (9 lb ft).

IMPORTANT: Check for proper adjustment of outside handle rod. There should be no tension on pivot or door latch.

Adjust the outside handle rod to freely enter the clamshell-style retainer clip door latch and secure into position.
Connect the latch wiring harness clips to the door structure, if equipped.

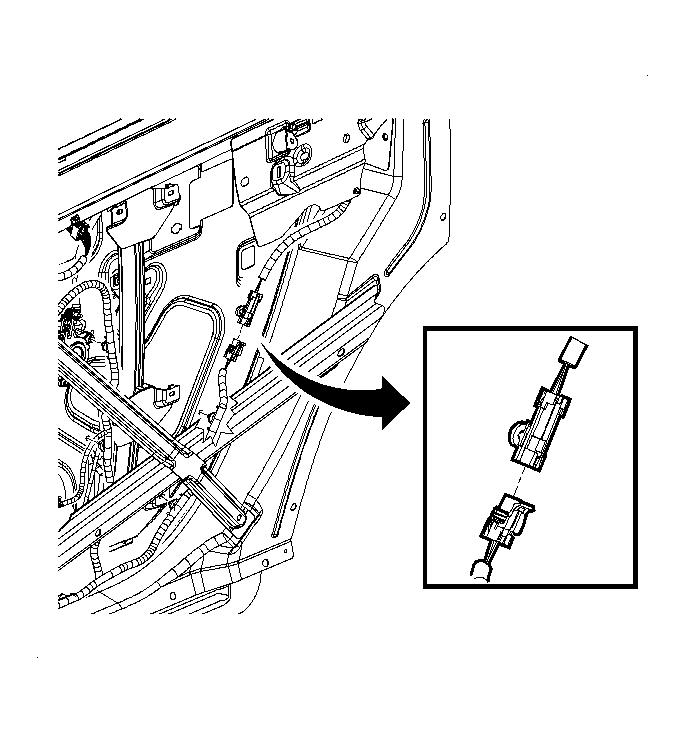

Fig 4: View Of Rear Door Latch

Courtesy of GENERAL MOTORS CORP.

Connect the latch wiring connector to the door wiring harness, if equipped.
Install the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
