Scan Tool Data List

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Powertrain Control Module (PCM) 3.1L
G01616640Courtesy of GENERAL MOTORS CORP.
Fig 2: Powertrain Control Module (PCM) 3.8L
G01616641Courtesy of GENERAL MOTORS CORP.

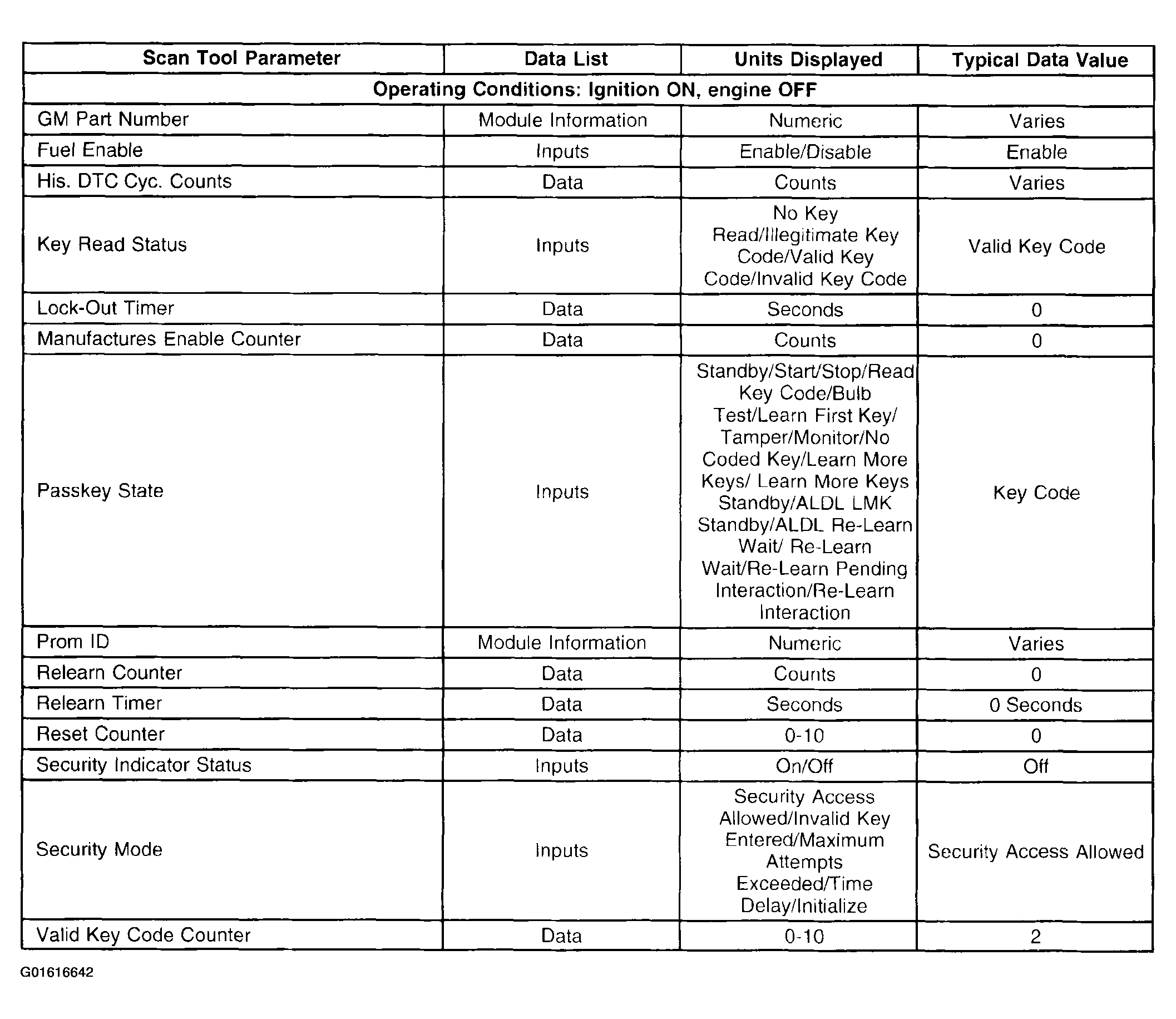

Fig 3: Vehicle Theft Deterrent (VTD)
G01616642Courtesy of GENERAL MOTORS CORP.
