Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille Panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  2. Using The J 38778,  remove the wiper motor water deflector push-in retainer.
  3. Remove the wiper motor water deflector from the wiper drive system module.

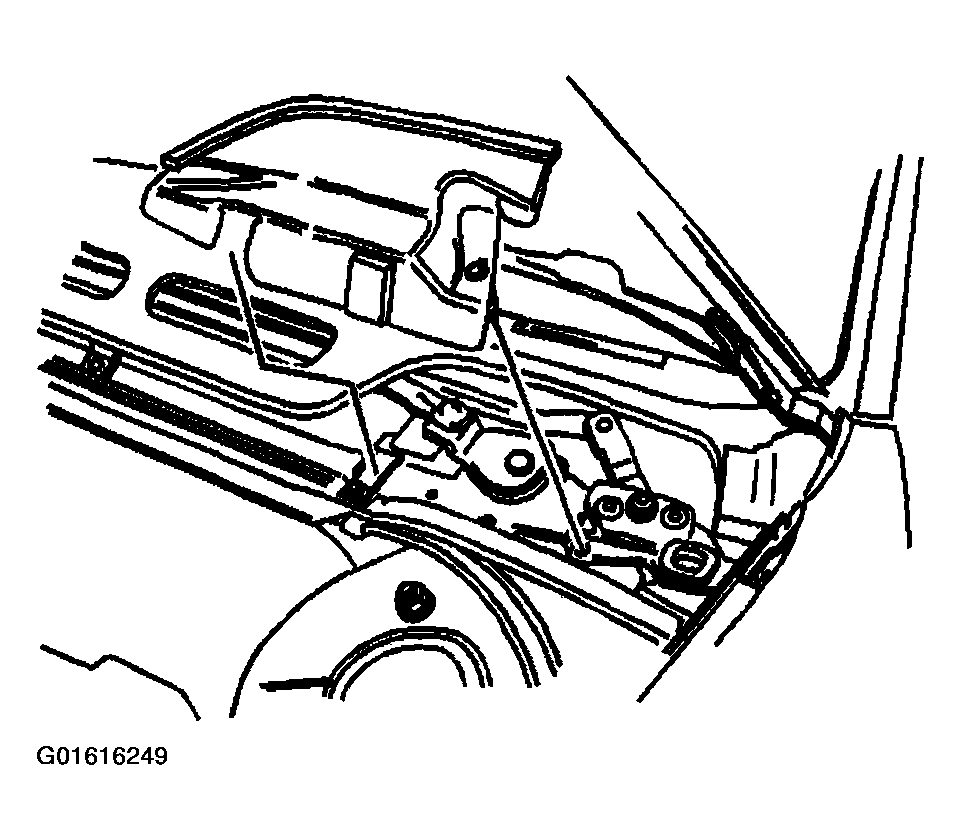

    Fig 1: Wiper Motor Water Deflector
    G01616249Courtesy of GENERAL MOTORS CORP.
