Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Remove the screws from the child seat tether brackets.
  3. Remove the child seat tether brackets from the rear shelf.

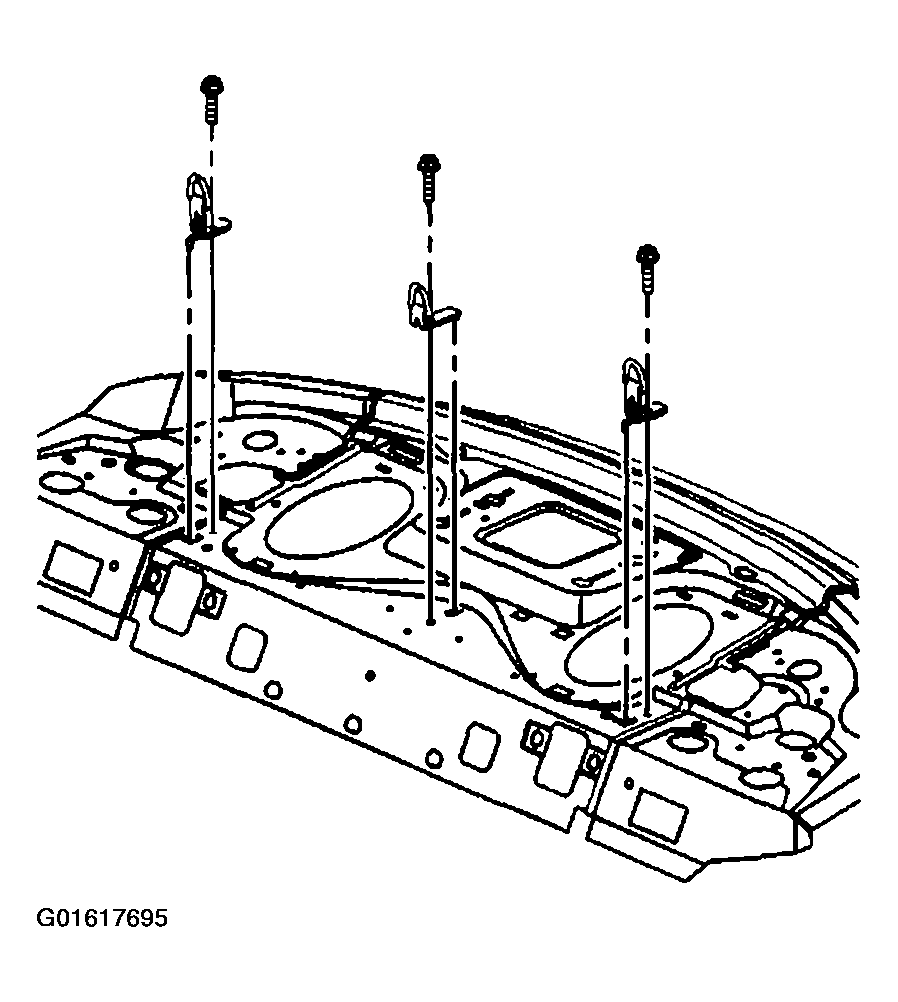

    Fig 1: Child Seat Tether Brackets
    G01617695Courtesy of GENERAL MOTORS CORP.
