Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood release handle.

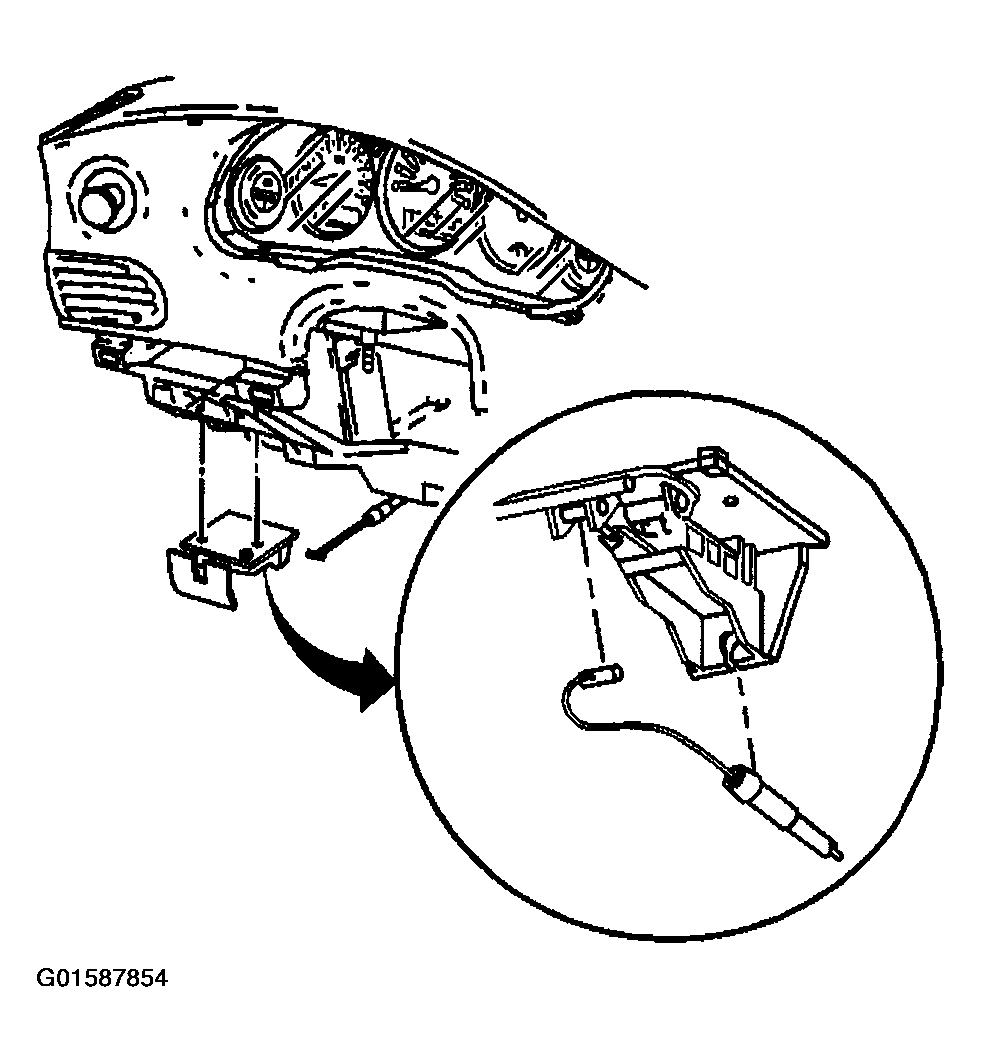

    2. Fig 1: Installing Hood Release Cable To Hood Release Handle
    G01587854Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the bolts to the hood latch release handle.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

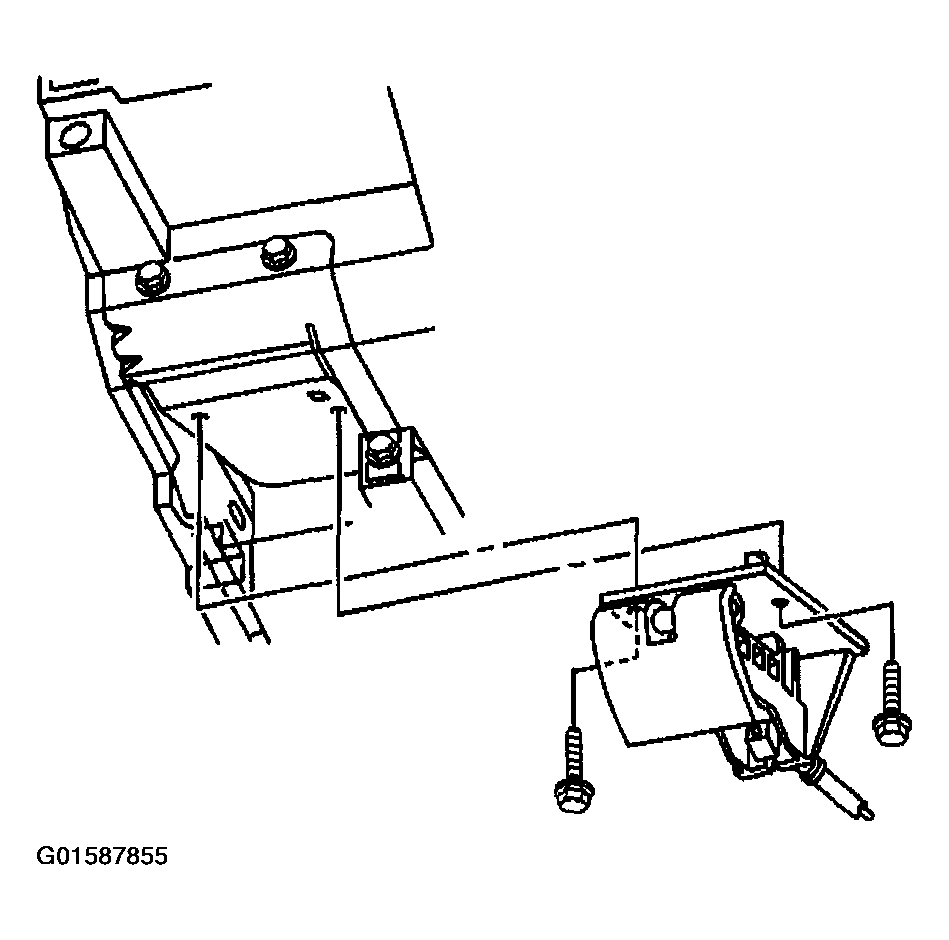

    4. Fig 2: Installing Bolts To Hood Latch Release Handle
    G01587855Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
