Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the I/P compartment lamp switch.
  2. Press the switch into the opening.
  3. Close the I/P compartment door.

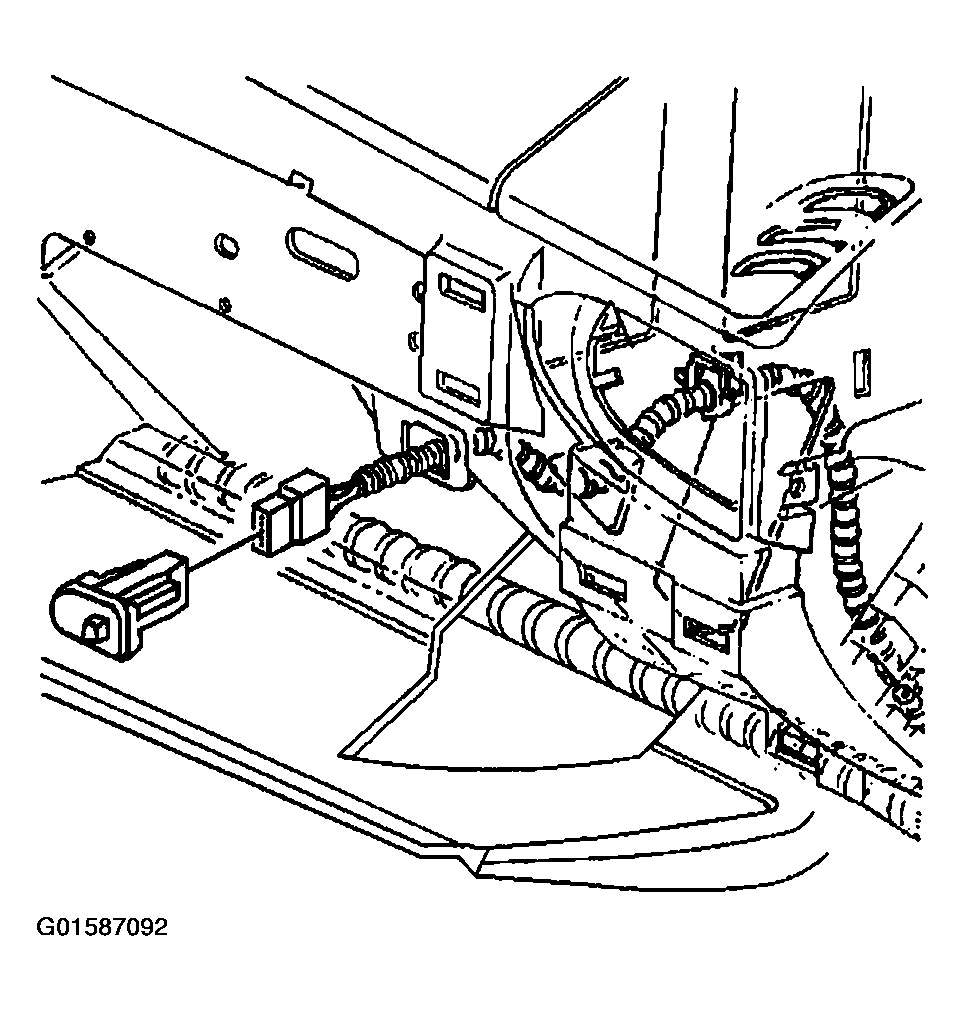

    Fig 1: Connecting I/P Compartment Lamp Switch Electrical Connector
    G01587092Courtesy of GENERAL MOTORS CORP.
