Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: You MUST install the lower control arm vertical bushing in the same position in order to maintain the original vehicle ride, handling, and road feel.
  1. Align the flat edge of the bushing flange to the mark in the control arm (1). Ensure that the flat edge of the bushing flange is 30 degrees (2) from the centerline of the lower control arm. Ensure that the thin slot in the bushing is facing outboard.

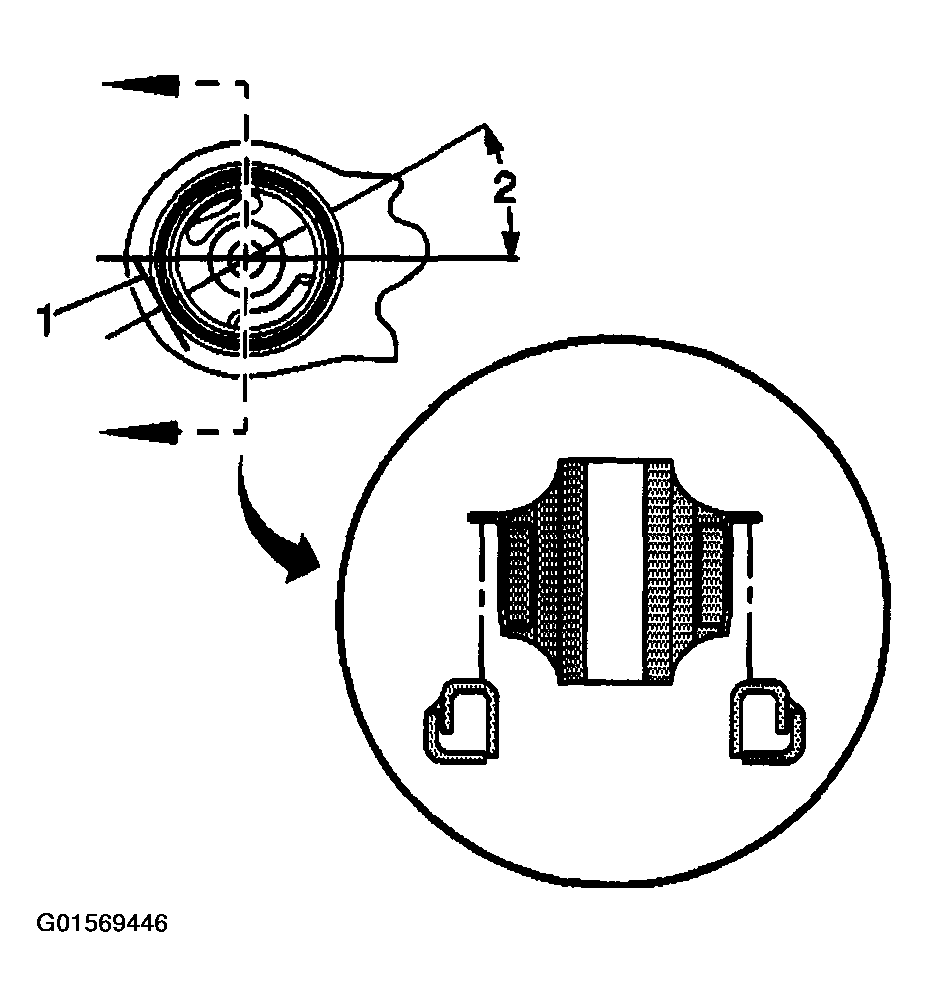

    Fig 1: Aligning Flat Edge Of Bushing Flange To Mark In Control Arm
    G01569446Courtesy of GENERAL MOTORS CORP.
  2. Insert the bushing into the control arm.
    IMPORTANT: Apply J 23444-A  or equivalent to the threads of J 21474-27
  3. Assemble the following bushing installation tools as shown:
    1. 3.1. J 21474-27
    2. 3.2. J 21474-13
    3. 3.3. J 21474-5
    4. 3.4. J 21474-4
    5. Tighten J 21474-4  .
  4. Disassemble the bushing installation tools.
  5. Install the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT  .

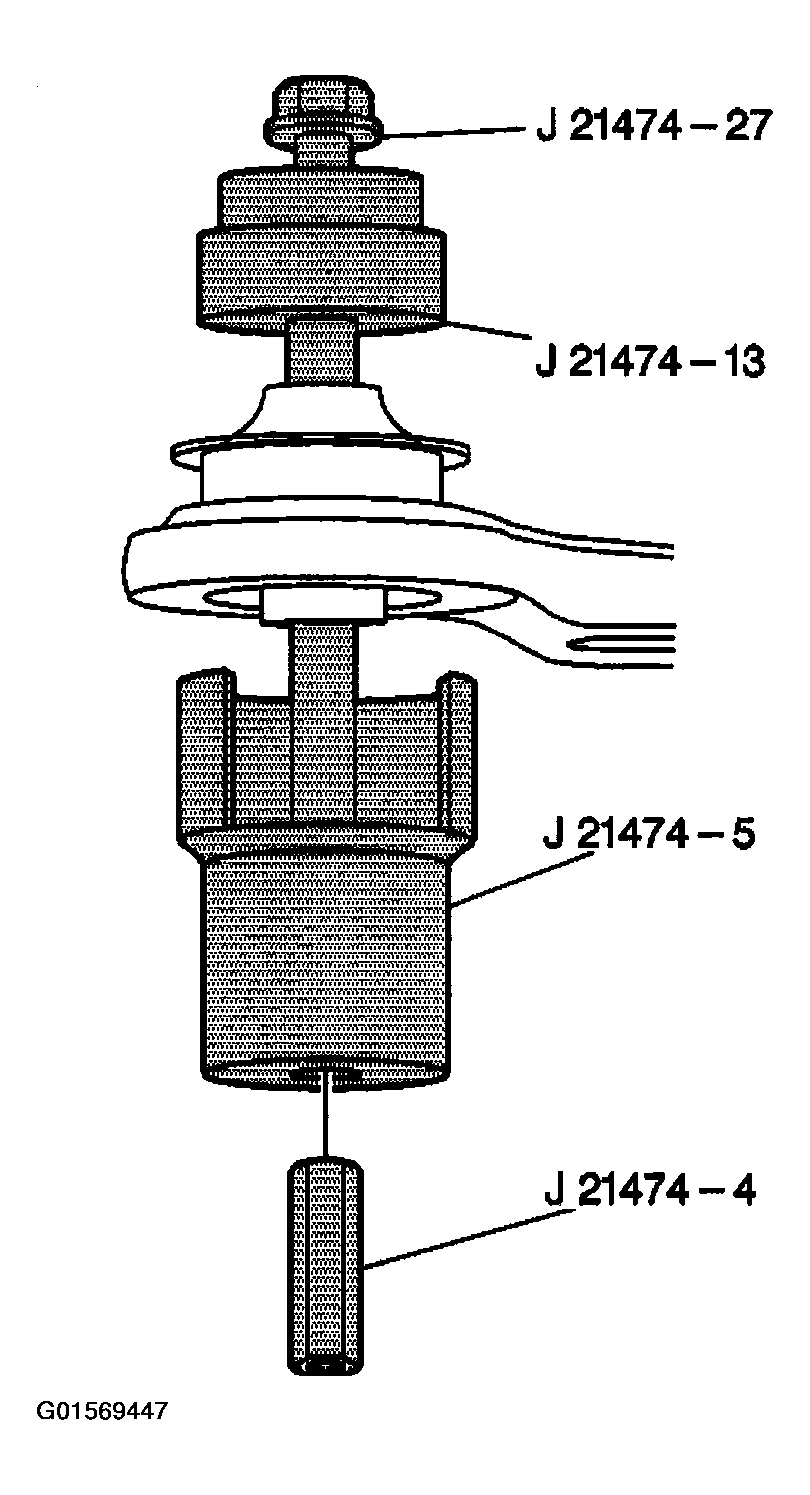

    Fig 2: Assembly Sequence Of Bushing Installation Tools
    G01569447Courtesy of GENERAL MOTORS CORP.
