HVAC Connector End Views

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

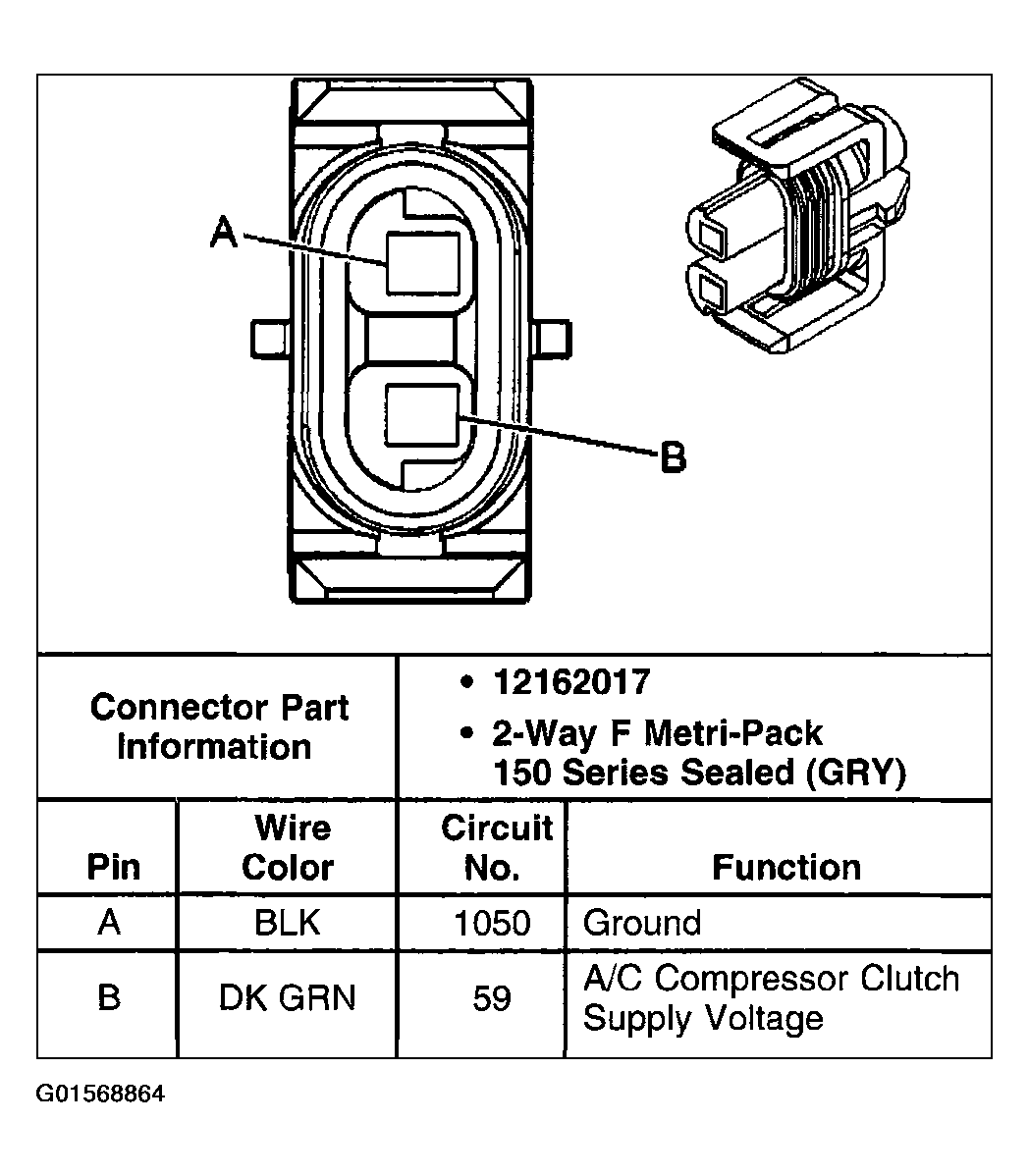

Fig 1: A/C Compressor Clutch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 2: A/C Refrigerant Pressure Sensor Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 3: Air Temperature Actuator-Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 4: Air Temperature Actuator-Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.

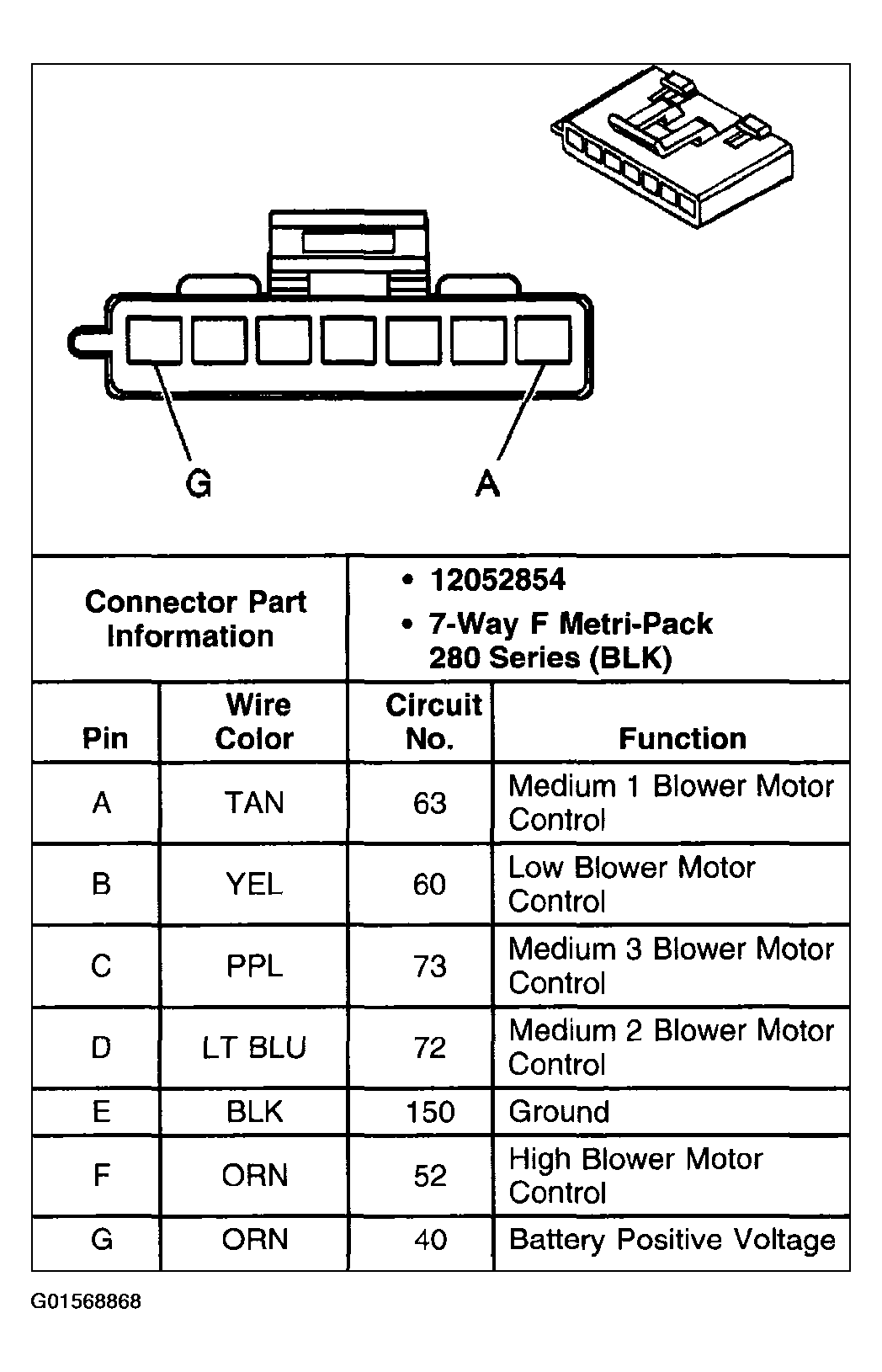

Fig 5: Blower Motor Resistor Assembly Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 6: HVAC Control Module, C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 7: HVAC Control Module, C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.
