Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  3. Install the wiper system drive module. Refer to Wiper Motor Module Replacement .

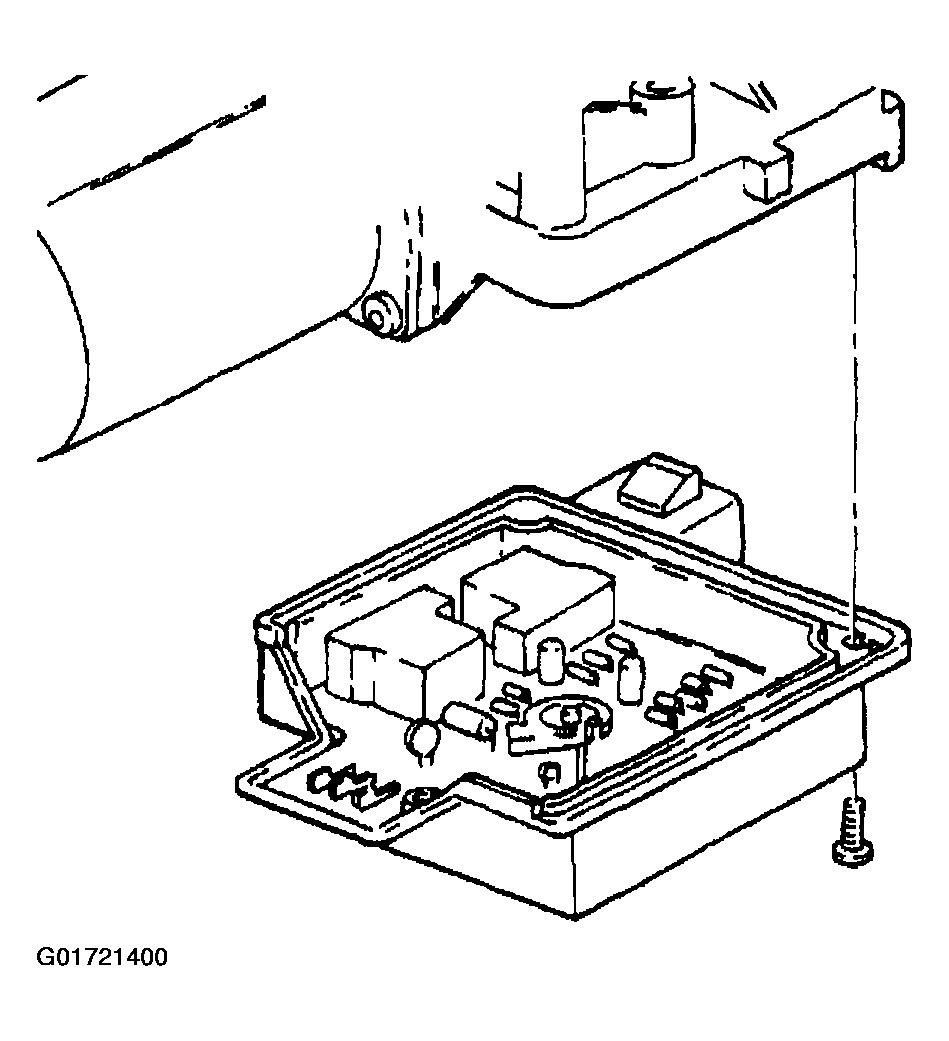

    Fig 1: Installing Wiper Motor Cover And Screws
    G01721400Courtesy of GENERAL MOTORS CORP.
