Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat into the vehicle.

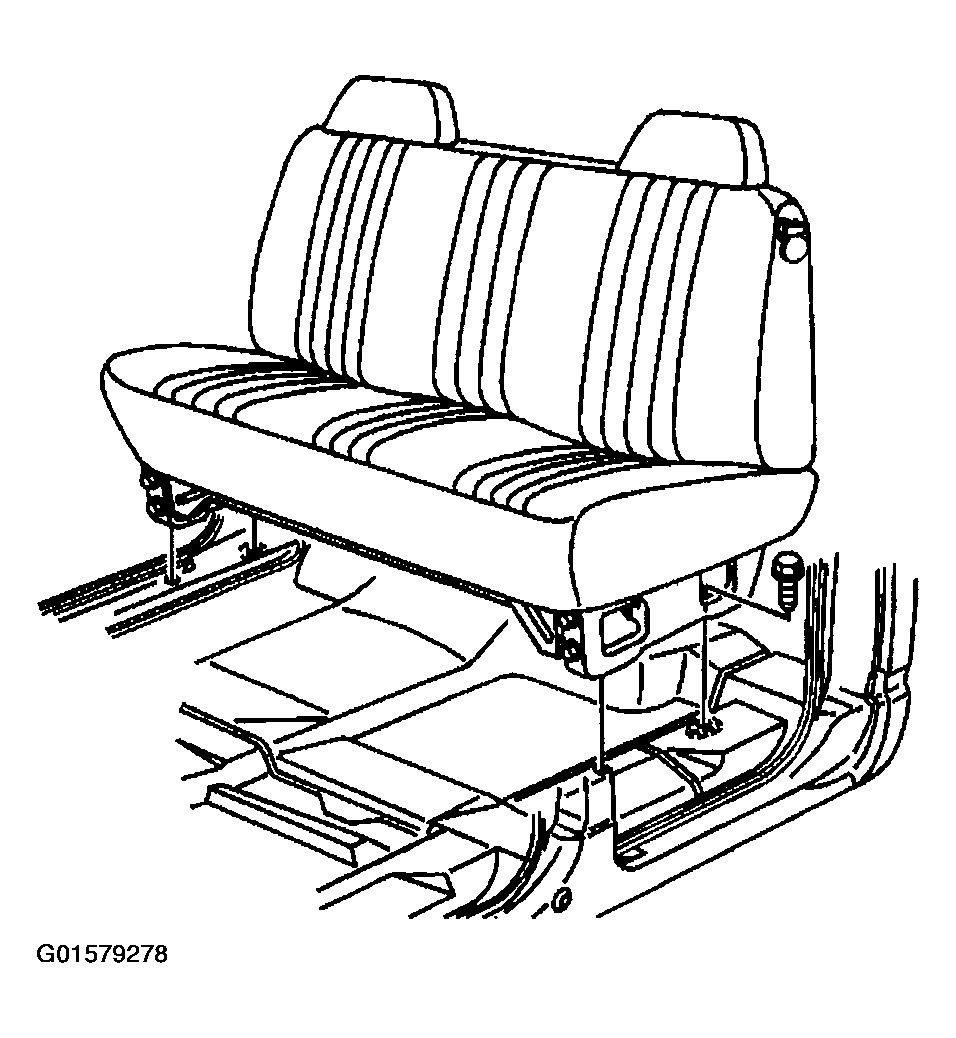

    Fig 1: Installing Seat
    G01579278Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat retaining bolts (2).

    Tighten

    Tighten the seat retaining bolts to 55 N.m (41 lb ft).

  3. Install the front and the rear leg trim covers.

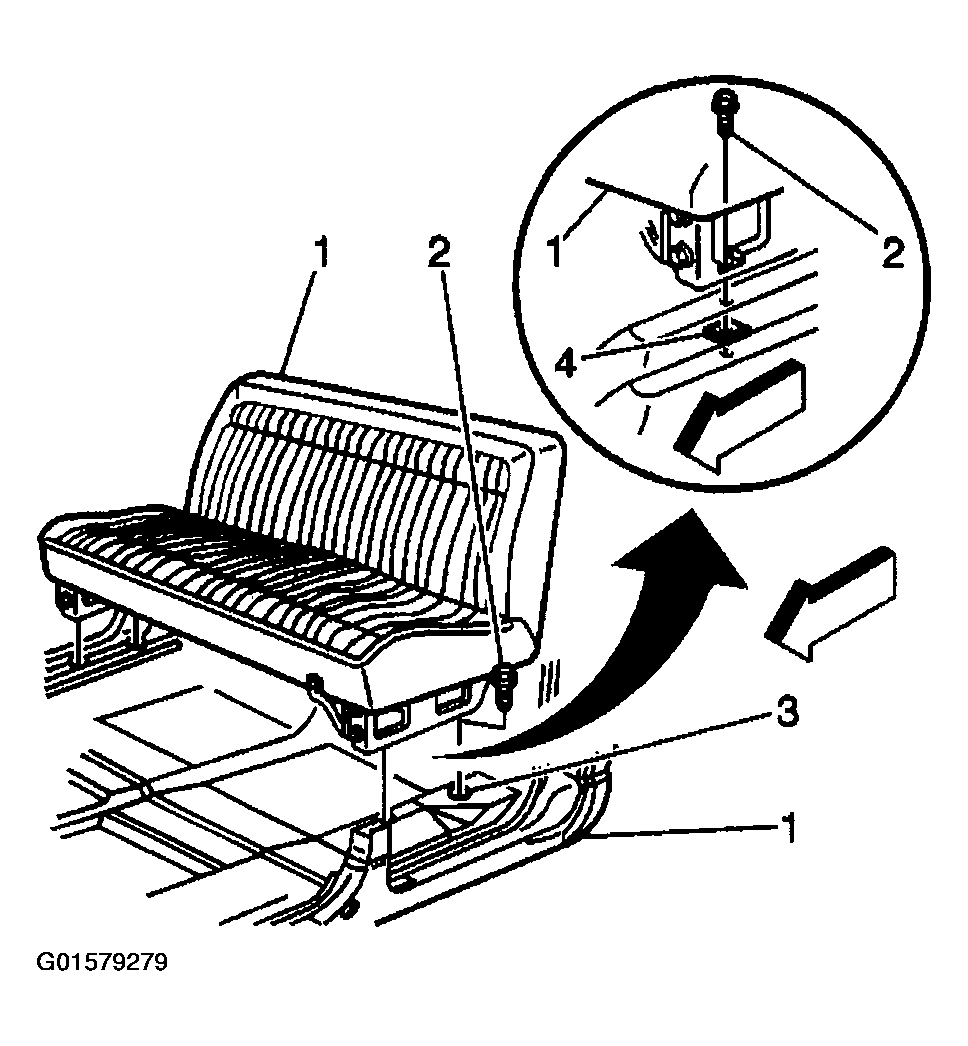

    Fig 2: Installing Seat Retaining Bolts
    G01579279Courtesy of GENERAL MOTORS CORP.
