Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector(s) to the fog lamp and cargo lamp switch.
  2. Install the fog lamp switch into the housing.
  3. Install the IP trim bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

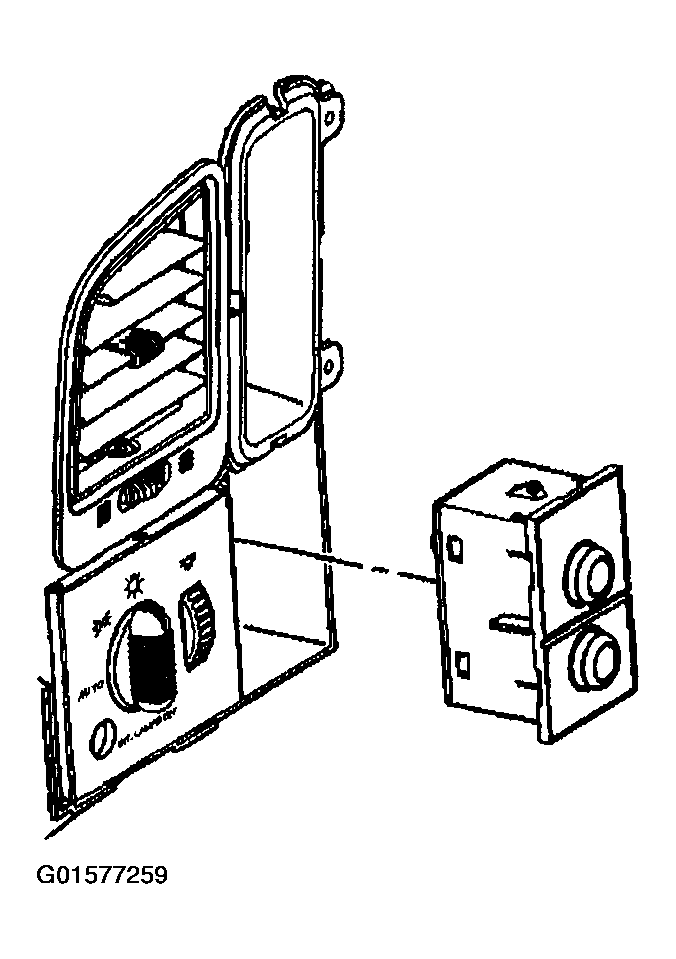

    Fig 1: Installing Fog Lamp Switch
    G01577259Courtesy of GENERAL MOTORS CORP.
