Interior Lights Schematics (I/P Lighting, Lamp Control)

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

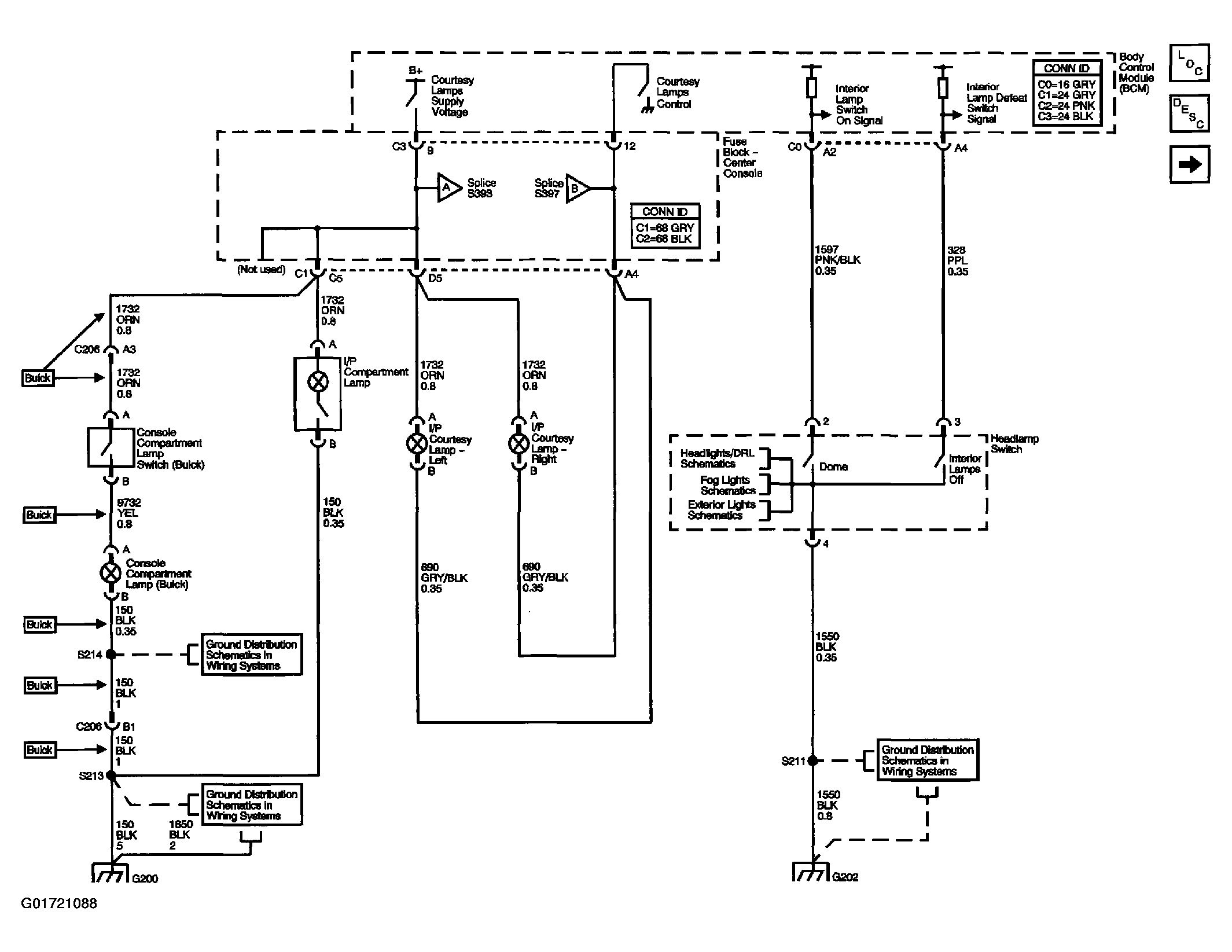

Fig 1: Interior Lights Schematics (I/P Lighting, Lamp Control)

Courtesy of GENERAL MOTORS CORP.

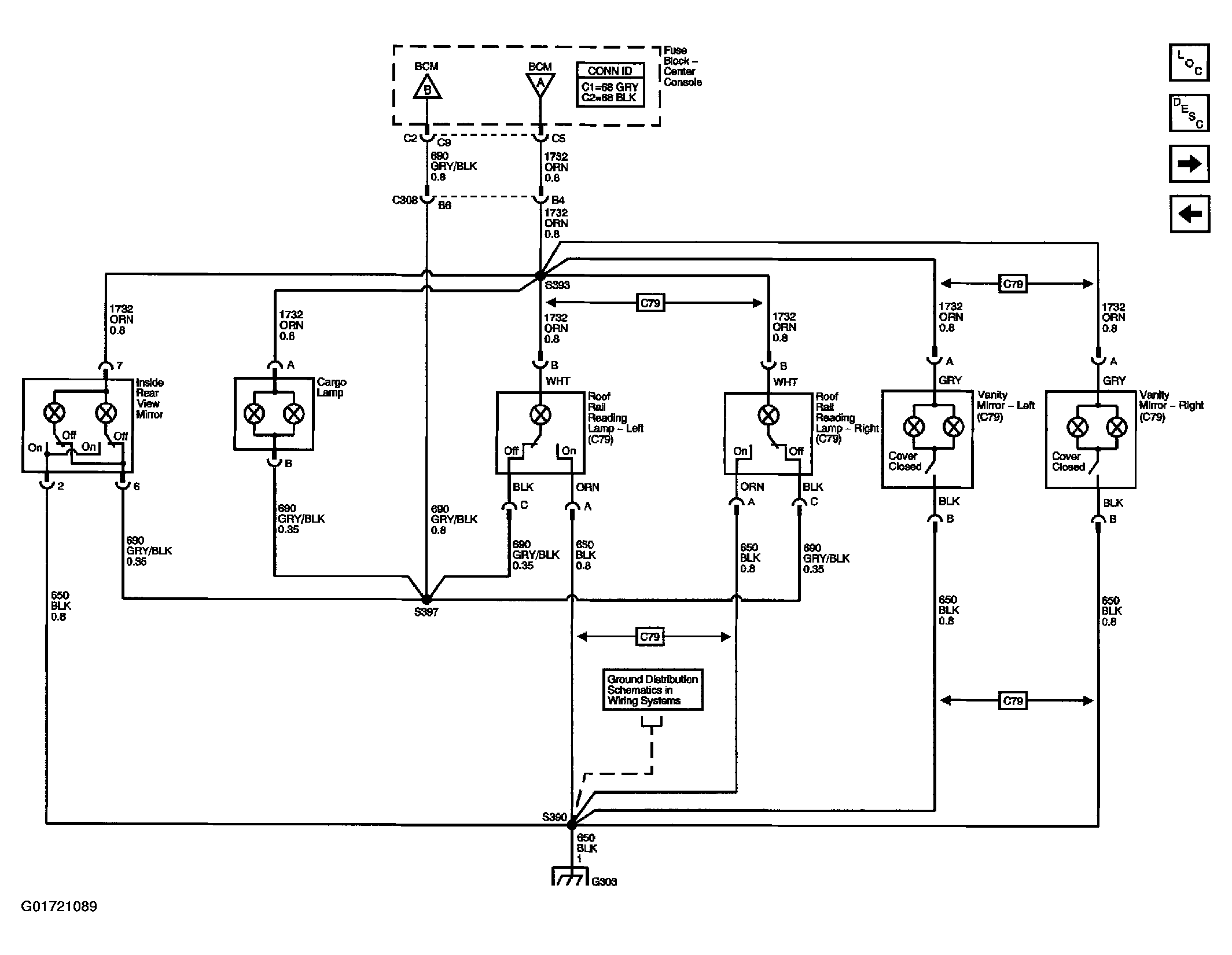

Fig 2: Interior Lights Schematics (Roof Lighting - Pontiac)

Courtesy of GENERAL MOTORS CORP.

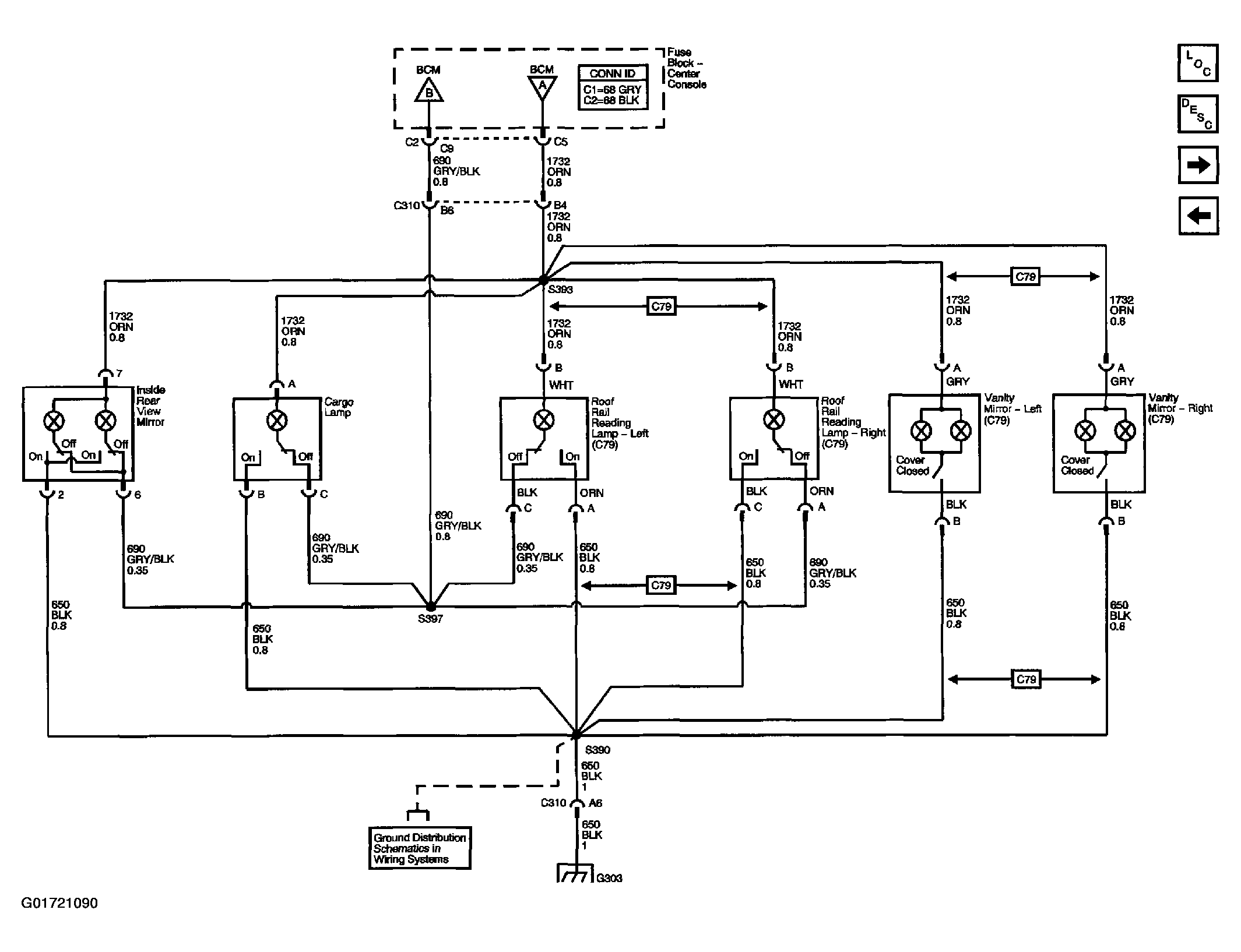

Fig 3: Interior Lights Schematics (Roof Lighting - Buick)

Courtesy of GENERAL MOTORS CORP.

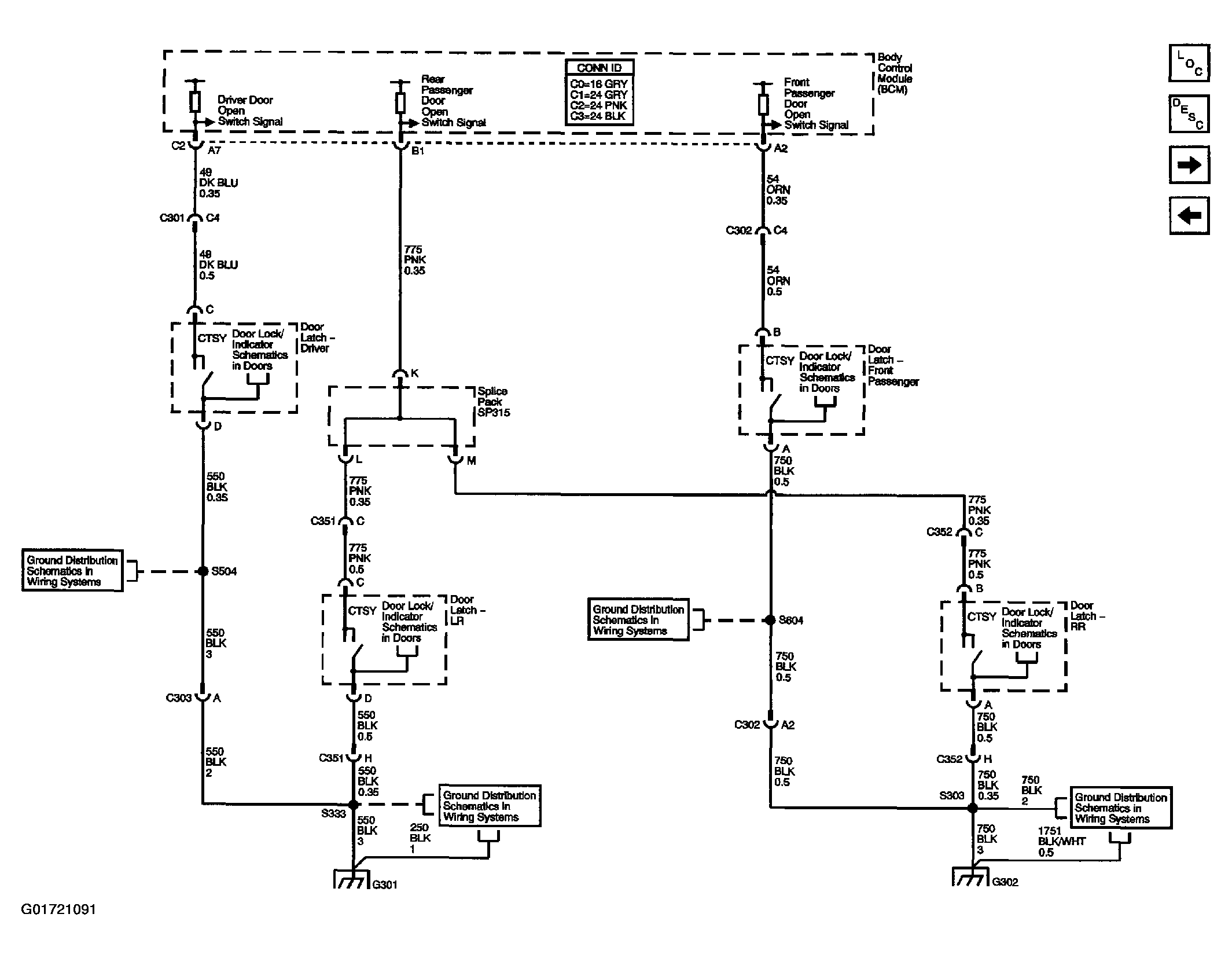

Fig 4: Interior Lights Schematics (Door Switches)

Courtesy of GENERAL MOTORS CORP.

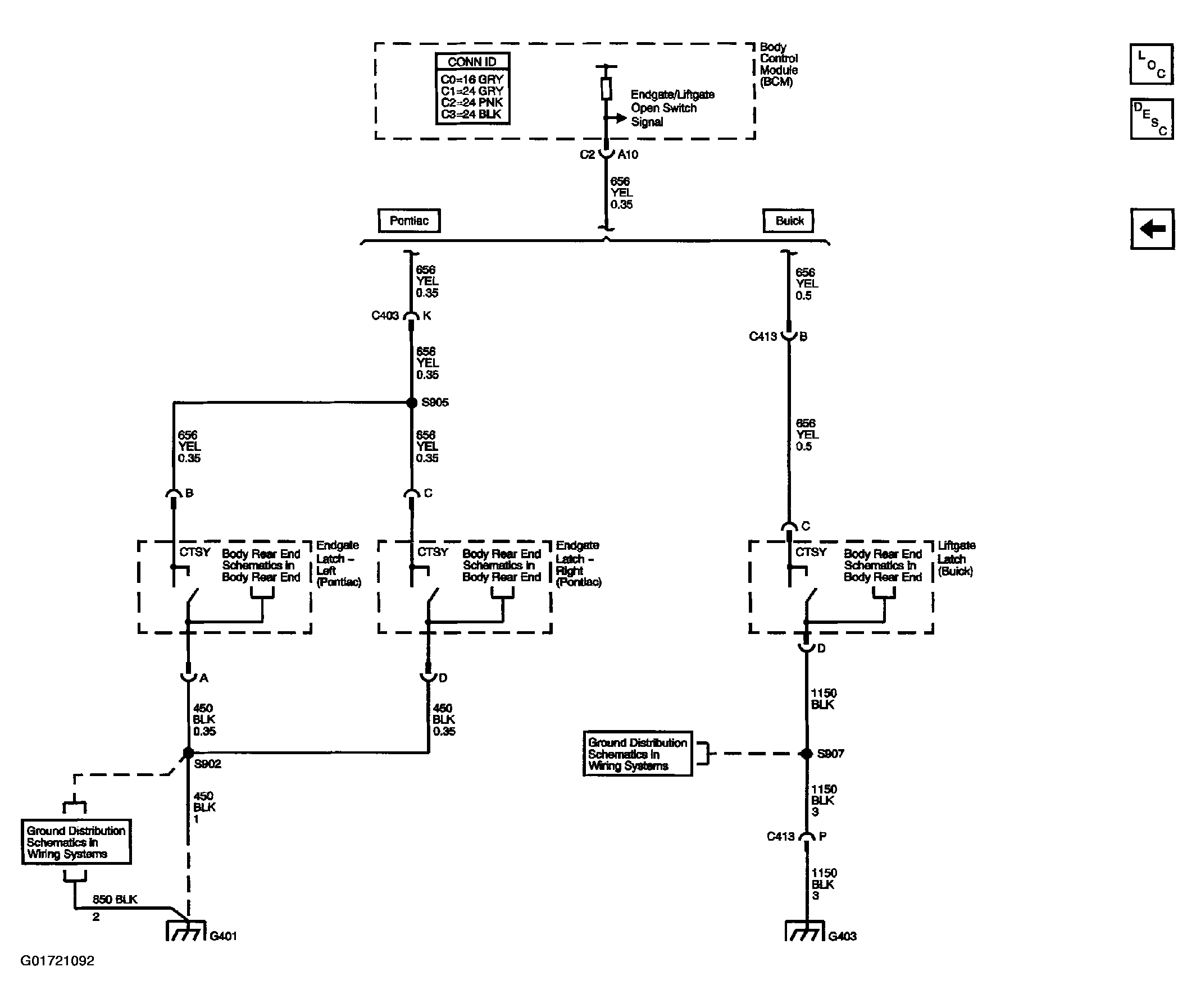

Fig 5: Interior Lights Schematics (Lift Window, Endgate & Liftgate Switches)

Courtesy of GENERAL MOTORS CORP.
