Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuse panel cover from the right side floor console.
  2. Remove the hazard and turn signal flasher from the fuse panel.

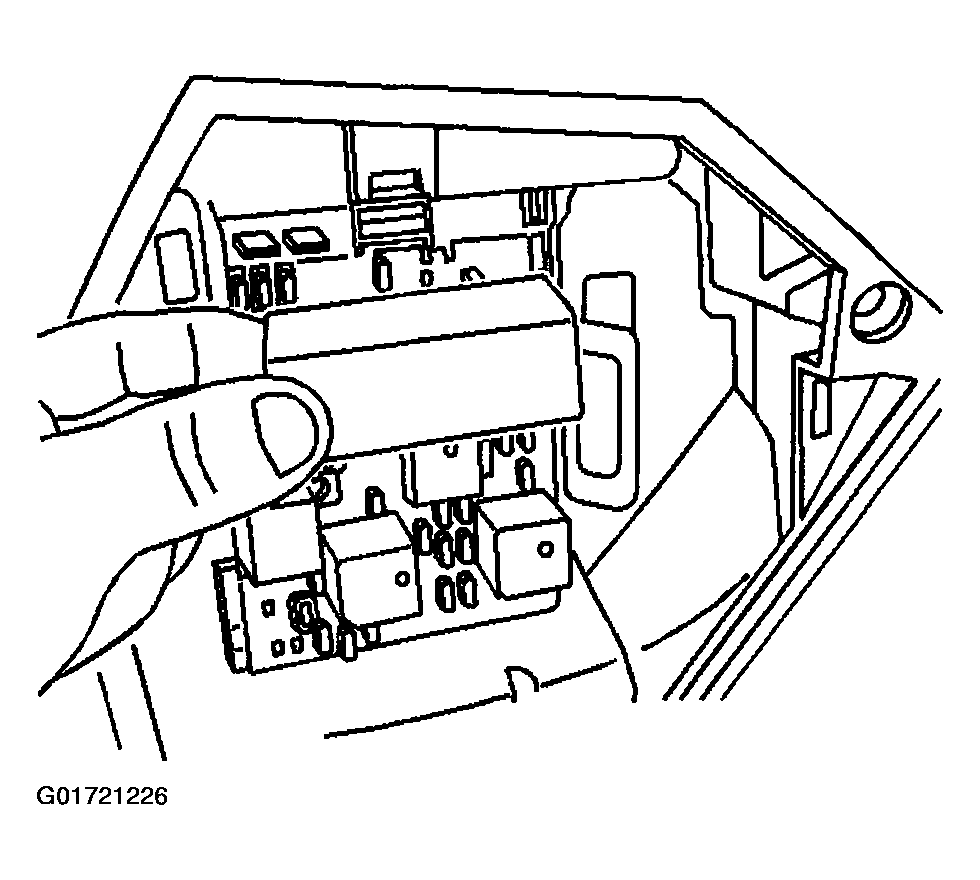

    Fig 1: Removing Hazard & Turn Signal Flasher
    G01721226Courtesy of GENERAL MOTORS CORP.
