Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Daytime running lamp ambient light sensor to the daytime running lamp ambient light sensor socket.

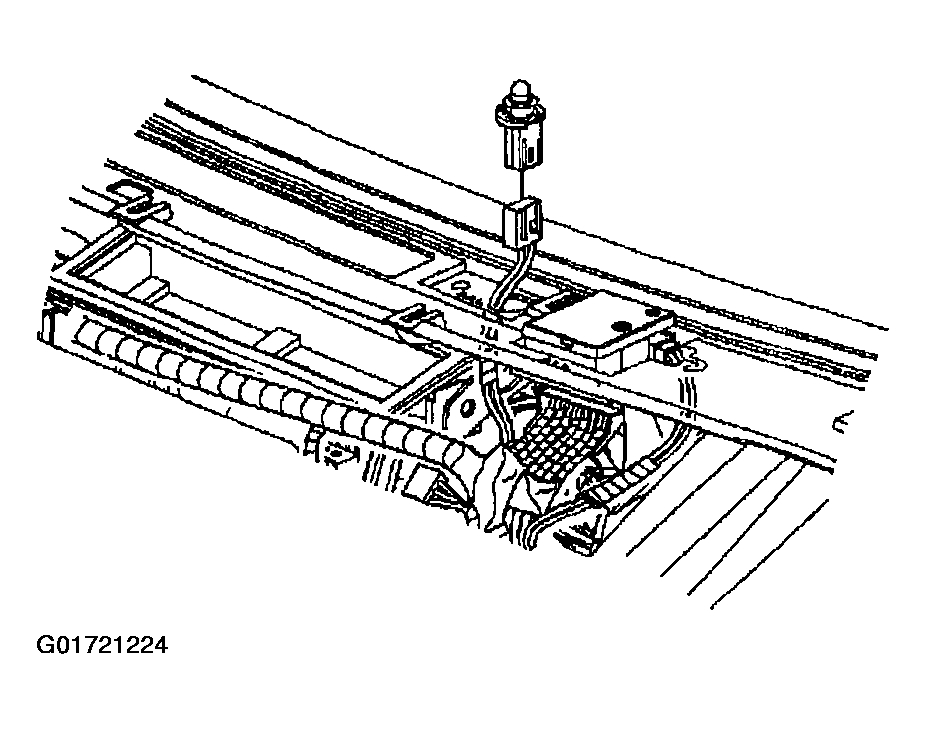

    Fig 1: Removing Daytime Running Lamp Ambient Light Sensor
    G01721224Courtesy of GENERAL MOTORS CORP.
  2. Install the daytime running lamp ambient light sensor socket to instrument panel trim pad twisting 1/4 turn clockwise.
  3. Install the instrument panel upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .

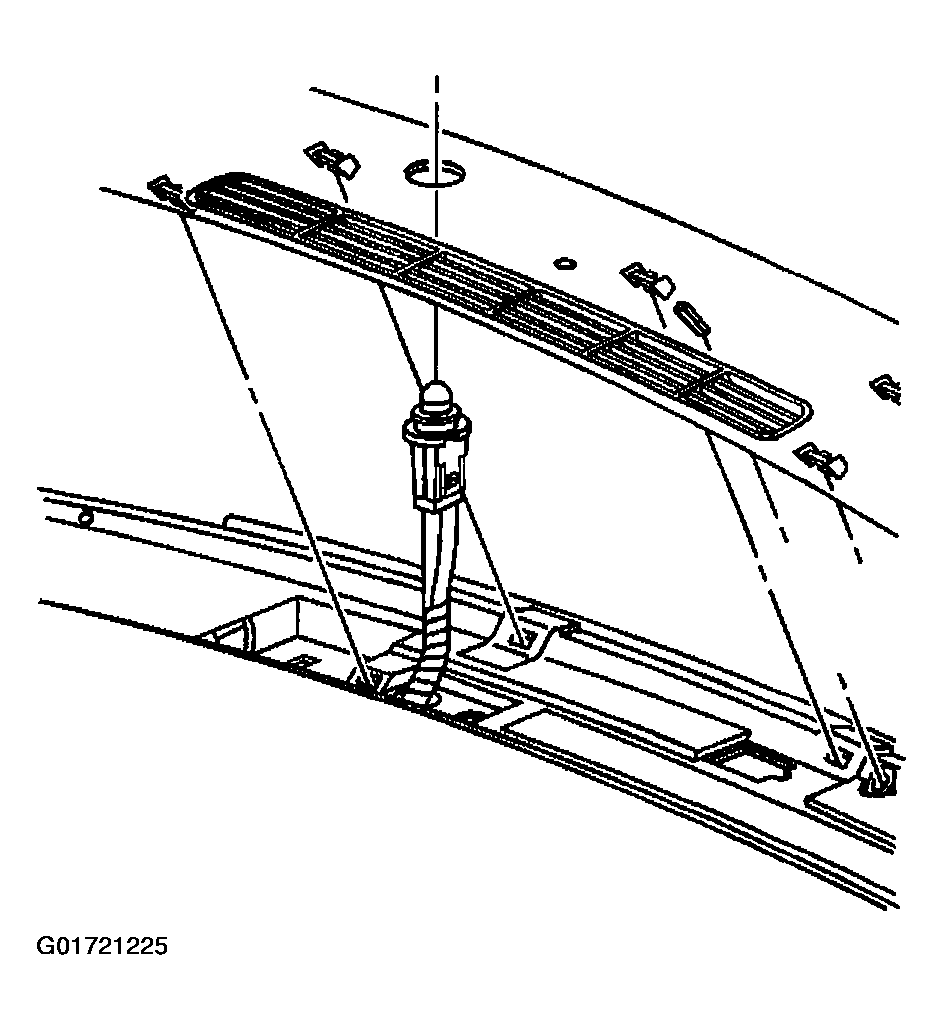

    Fig 2: Installing Daytime Running Lamp Ambient Light Sensor Socket
    G01721225Courtesy of GENERAL MOTORS CORP.
