Interior Backlighting Inoperative

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

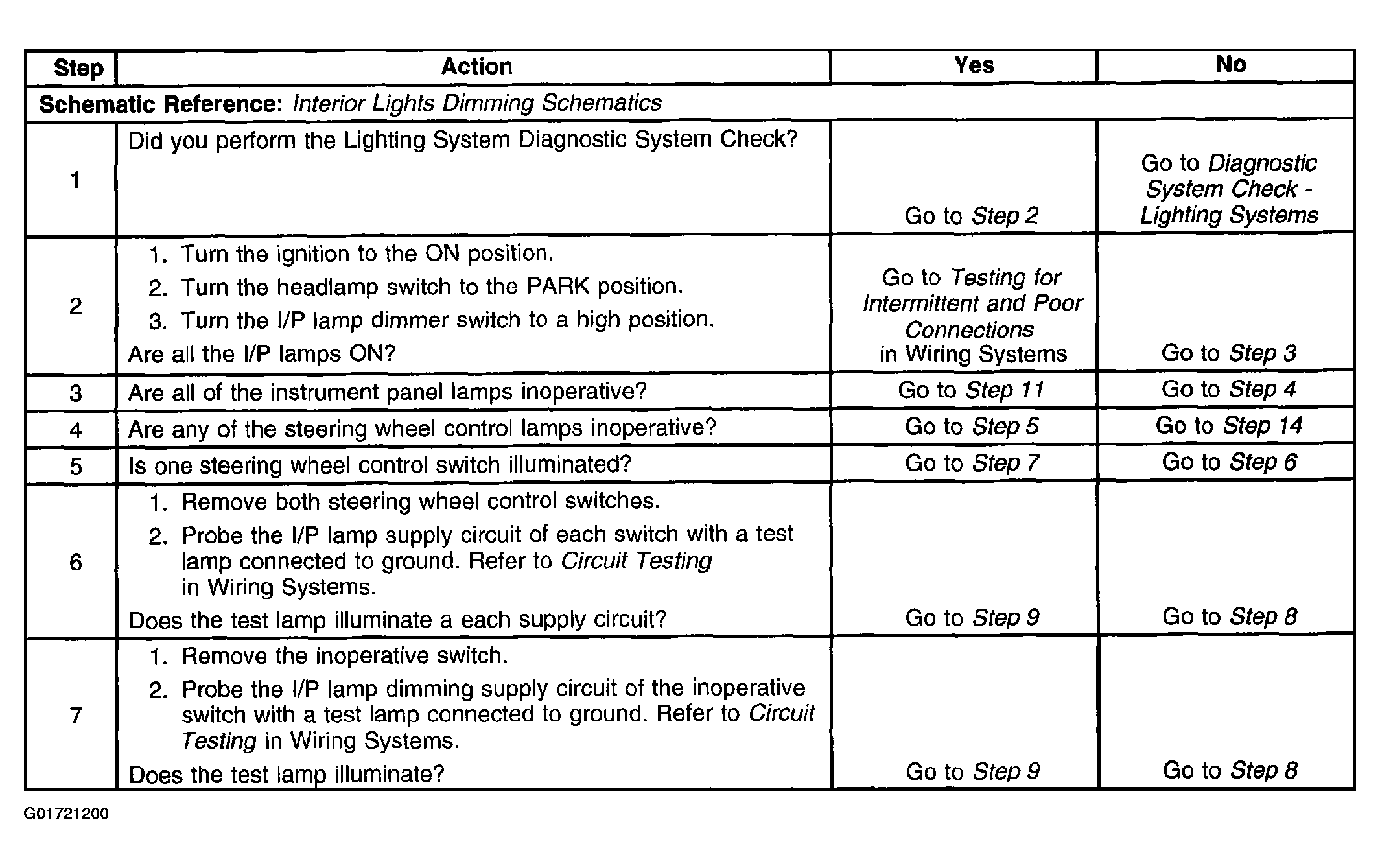

Fig 1: Interior Backlighting Inoperative (1 Of 2)
G01721200Courtesy of GENERAL MOTORS CORP.

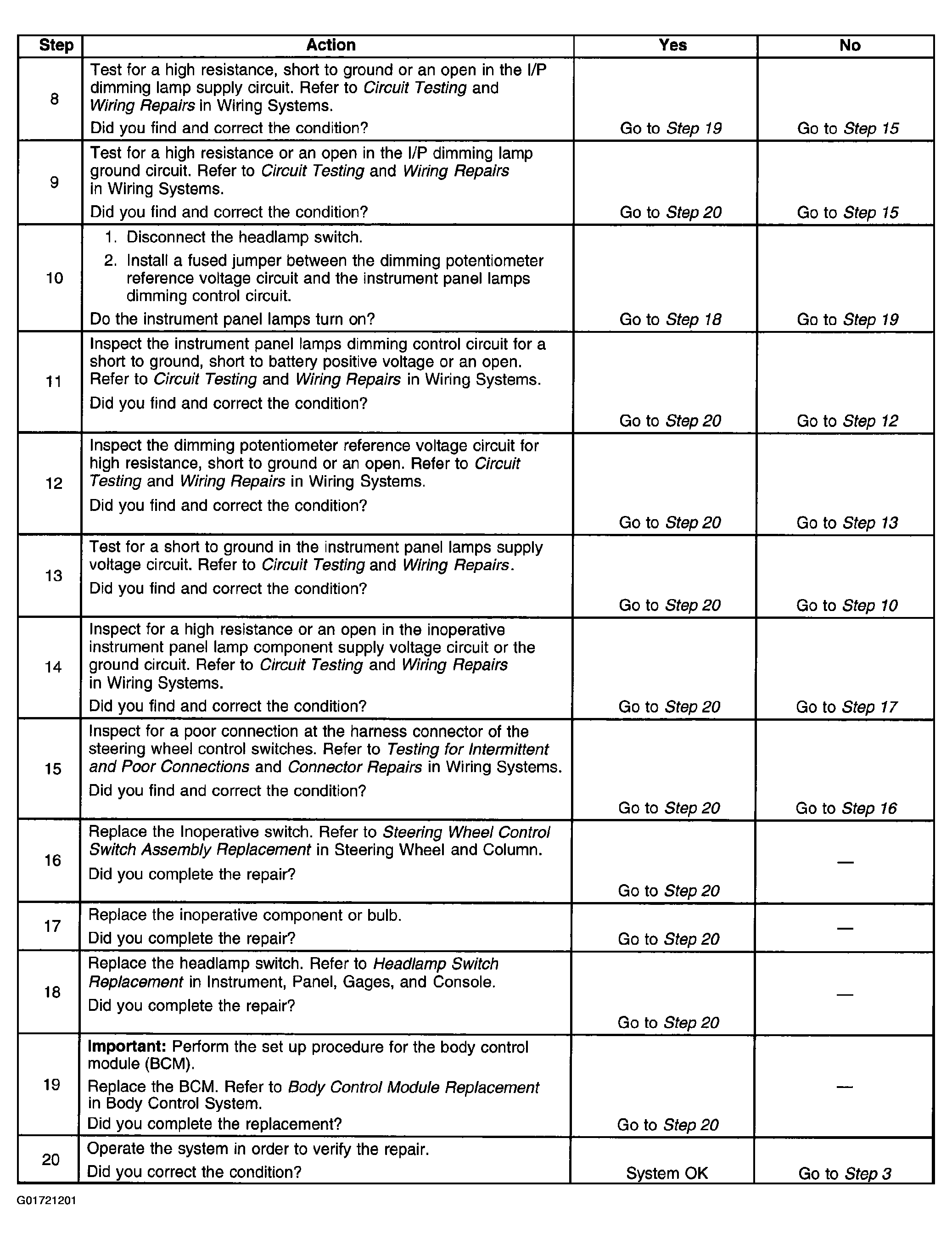

Fig 2: Interior Backlighting Inoperative (2 Of 2)
G01721201Courtesy of GENERAL MOTORS CORP.
