Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Support the endgate in the open position.
  3. Remove the bolts from the endgate support cable.
  4. Remove the endgate support cable from the endgate.

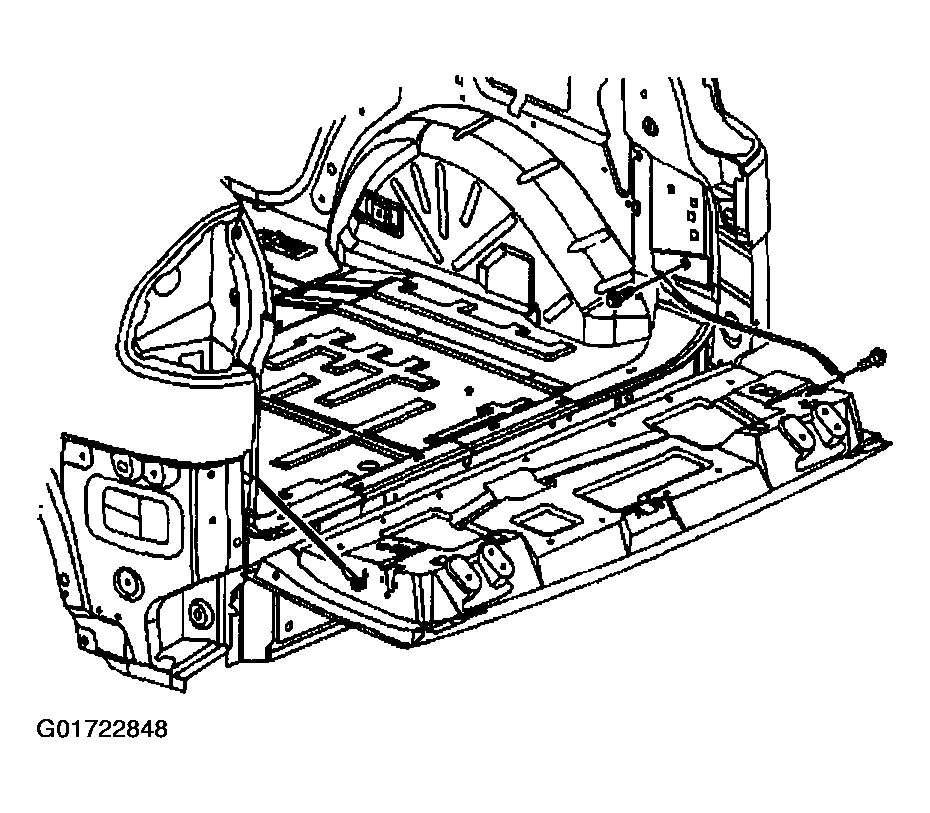

    Fig 1: Removing Endgate Support Cable Bolts
    G01722848Courtesy of GENERAL MOTORS CORP.
