Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE .
  2. Lift up the retainer clips on the assist rods using a small flat-bladed tool.

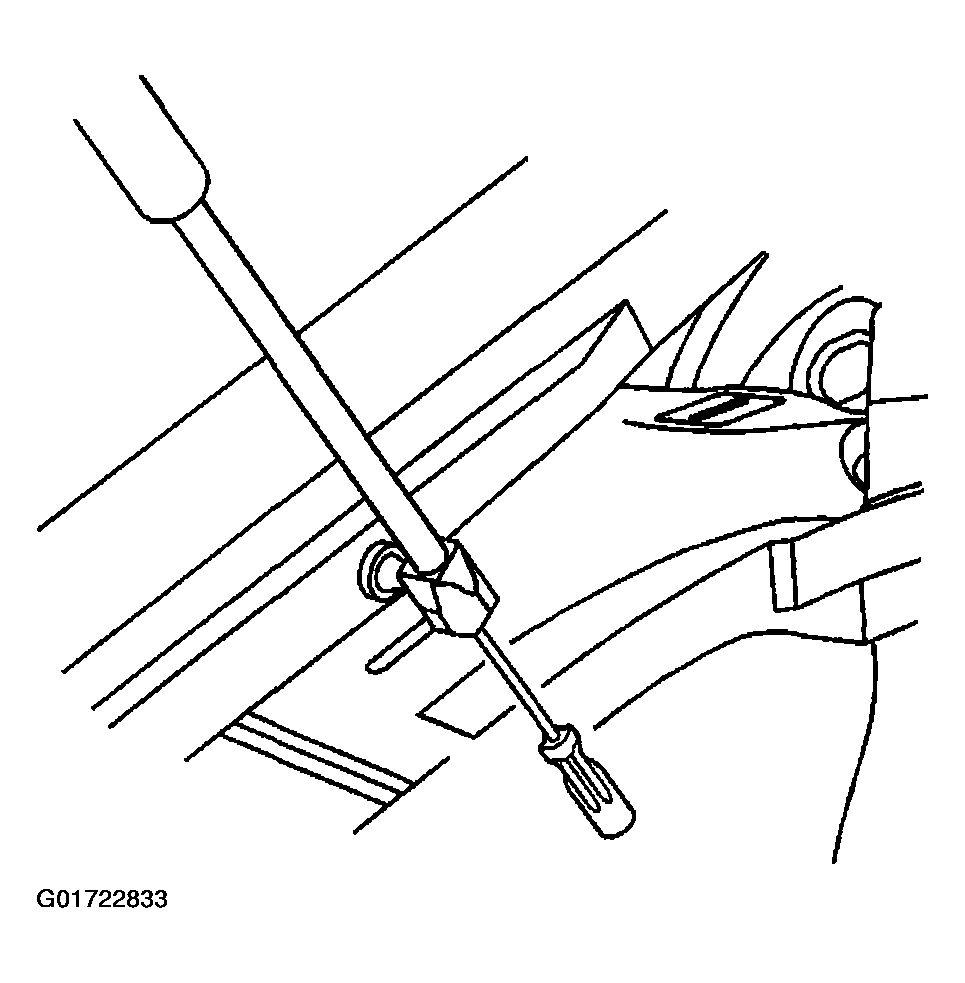

    Fig 1: Lifting Liftgate Assist Rod Retainer Clips
    G01722833Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper end of the assist rods from the ball joint.

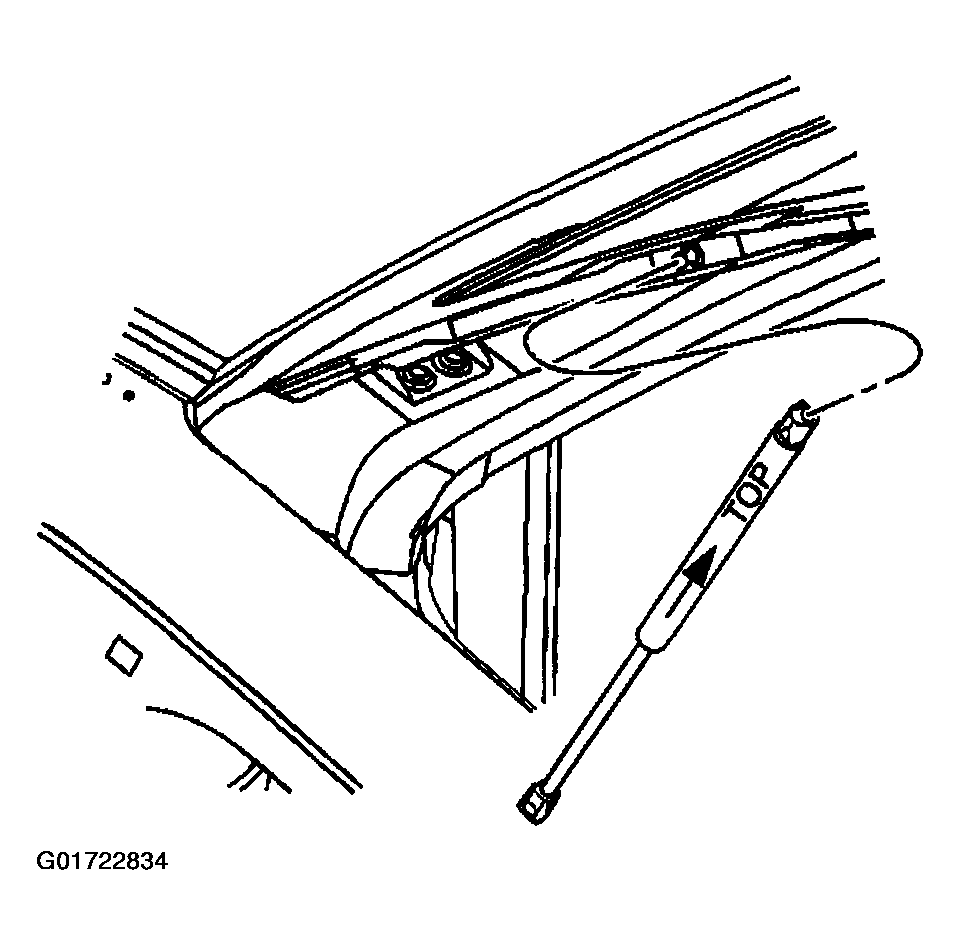

    Fig 2: Removing Liftgate Assist Rod Upper End From Ball Joint
    G01722834Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower end of the assist rods from the ball joint.
  5. Remove the assist rods from the liftgate.

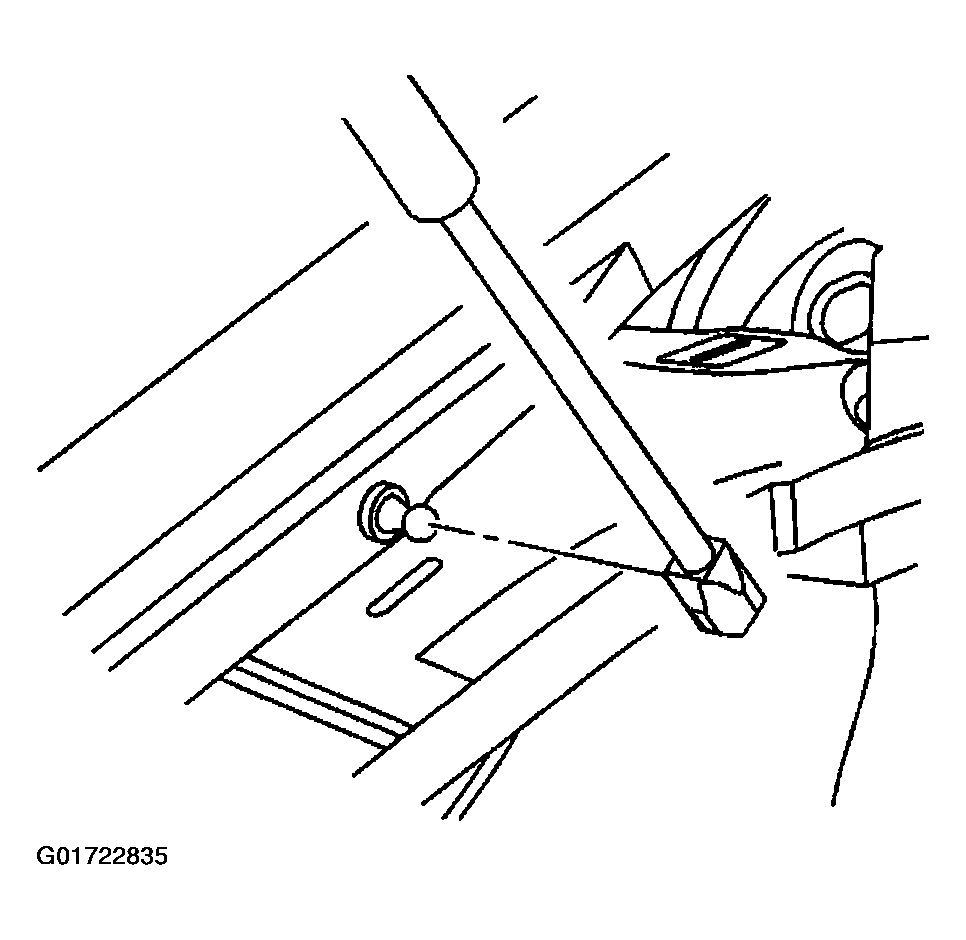

    Fig 3: Removing Liftgate Assist Rod Lower End From Ball Joint
    G01722835Courtesy of GENERAL MOTORS CORP.
