Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the endgate hinge to the body rear end panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the endgate nuts to the endgate hinge.

    Tighten

    Tighten the endgate nuts to 33 N.m (28 lb ft).

  3. Align the endgate to the endgate hinges, with an assistant.

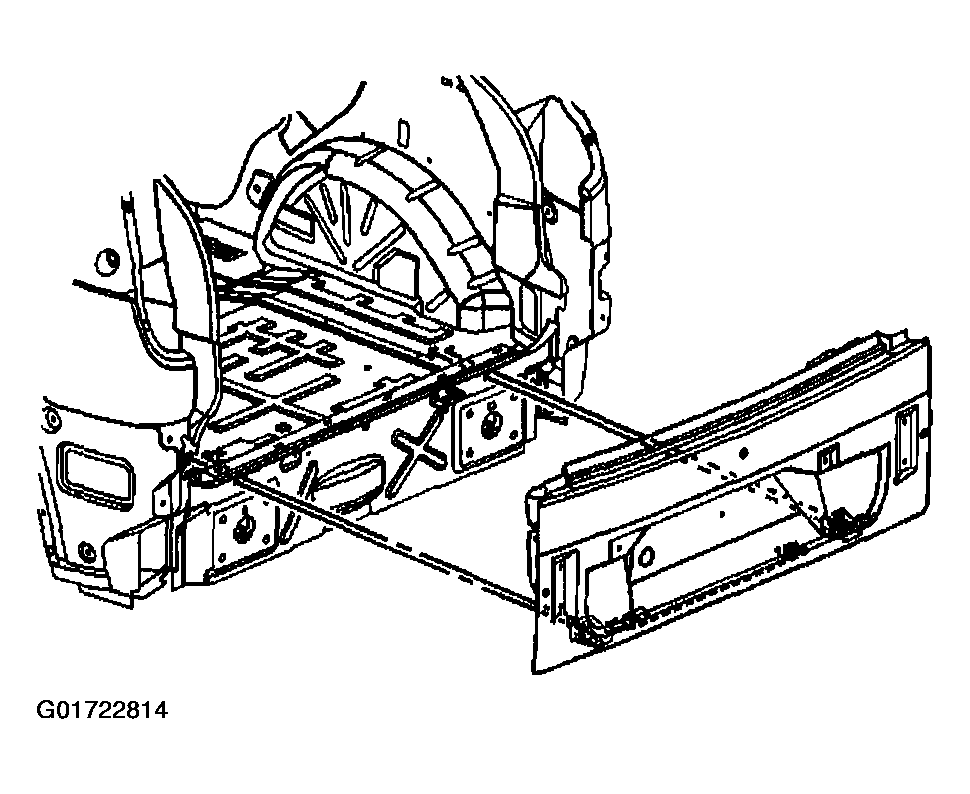

    Fig 1: Aligning Endgate Hinges
    G01722814Courtesy of GENERAL MOTORS CORP.
  4. Install the endgate hinge to endgate bolts.

    Tighten

    Tighten the endgate bolts to 33 N.m (28 lb ft).

  5. Connect the electrical harness to the endgate.
  6. Close the endgate.
  7. Close the liftgate.

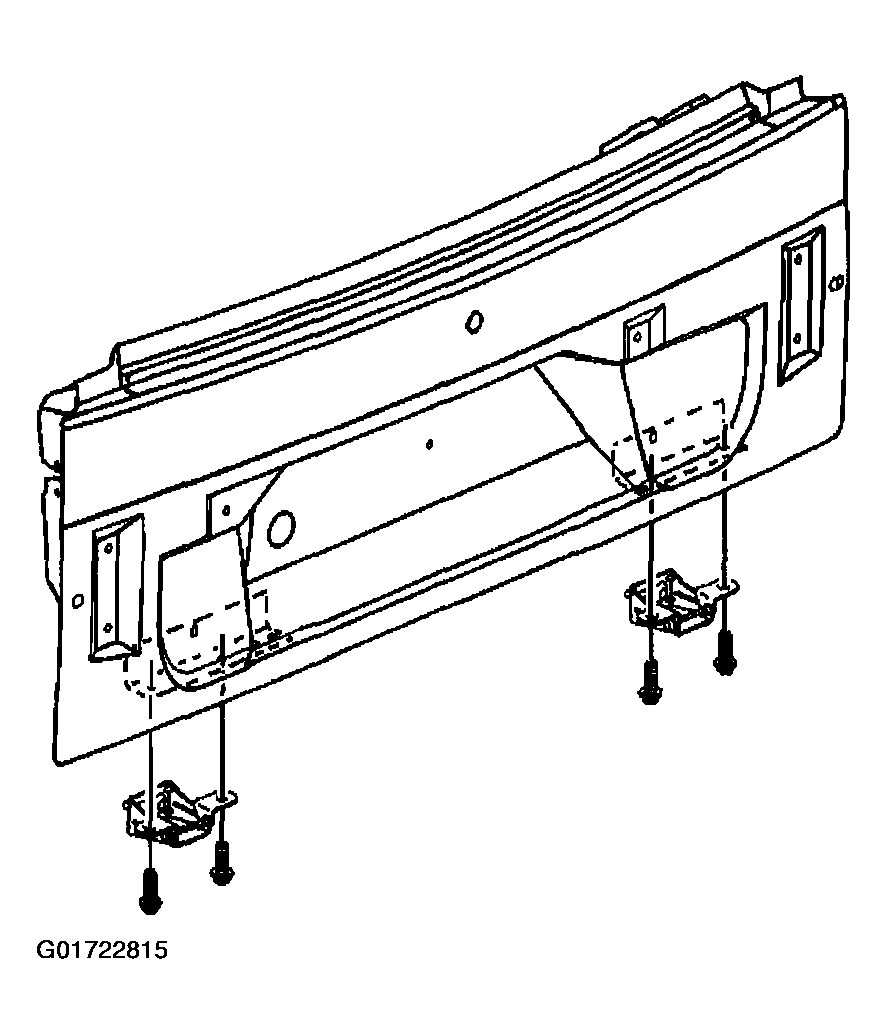

    Fig 2: Installing Bolts To Endgate Hinges
    G01722815Courtesy of GENERAL MOTORS CORP.
