Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate handle to the endgate handle assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the endgate handle.

    Tighten

    Tighten the endgate handle bolts to 10 N.m (89 lb in).

  3. Close the endgate.

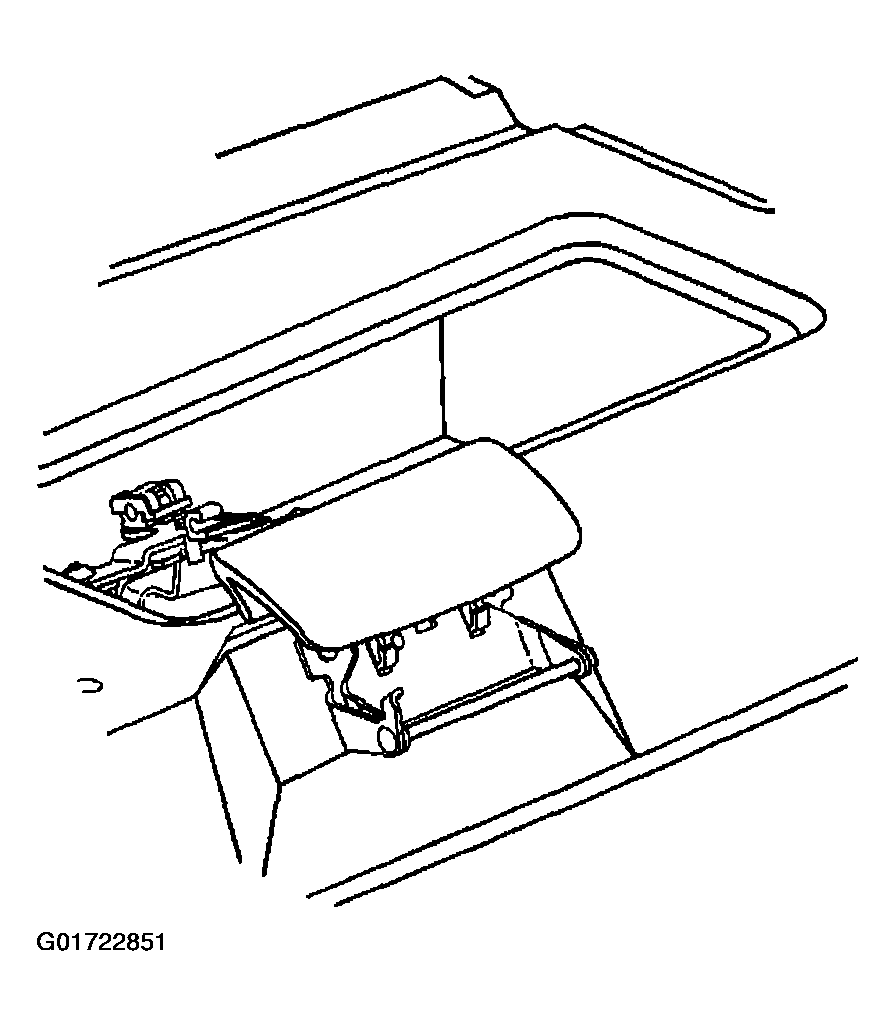

    Fig 1: View Of Endgate Handle Assembly
    G01722851Courtesy of GENERAL MOTORS CORP.
