Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the grille retaining tabs to the slots in the front fascia.
  2. Install the grille by pressing into place until the retaining tabs (1, 2, 3, 4, 5) are fully seated.
  3. Install the headlamp assembly. Refer to LIGHTING SYSTEMS .

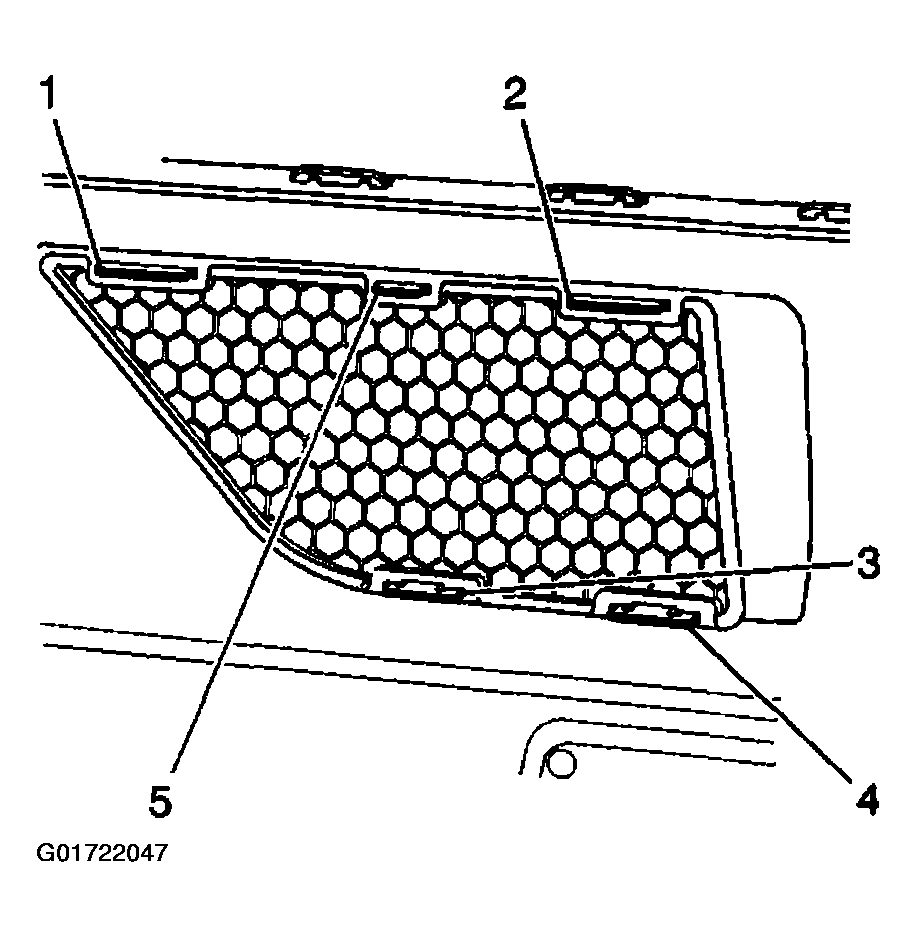

    Fig 1: Pressing Retaining Tabs That Lock Front Fascia And Grille
    G01722047Courtesy of GENERAL MOTORS CORP.
