Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Remove the speaker bolts.
  3. Disconnect the electrical connectors from the speaker.
  4. Remove the speaker.

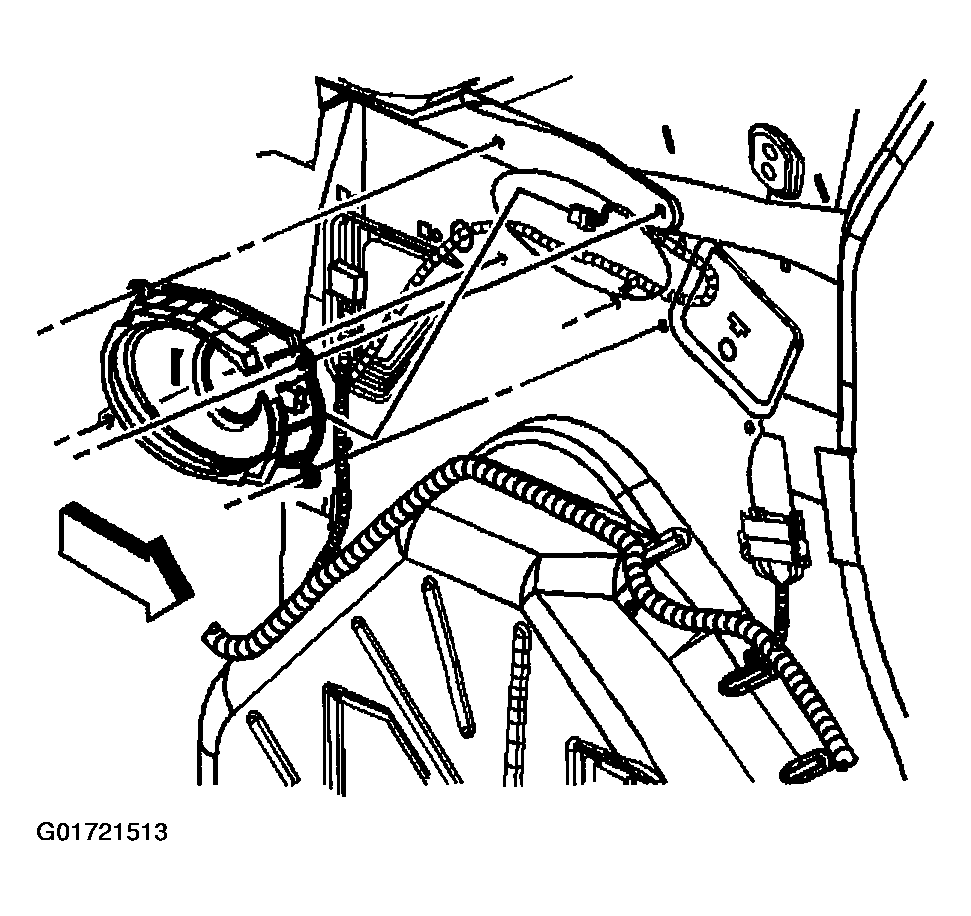

    Fig 1: Removing Rear Speaker (Aztek)
    G01721513Courtesy of GENERAL MOTORS CORP.
