Radio/Audio System Description and Operation: Notes
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
The entertainment system on this vehicle is configured with either a base or an up-level system. Both the base and up-level systems contain a radio, antenna, speakers, and on some vehicle lines an audio amplifier and/or rear seat audio (RSA).
The up-level system differs from the base level system by providing the customer with enhanced audio system features. Some of those features may include the radio data system (RDS), extended range speakers, an audio amplifier, or an up-level amplifier, rear seat audio (RSA), video entertainment system and a remote playback device.
The following list shows the radios available for this vehicle:
- Up-level Radio (U1N) - AM/FM Stereo, Cassette with Programmable Equalizer and RDS
- Up-level Radio (U1P ) - AM/FM Stereo, CD with Programmable Equalizer and RDS
- Up-level Radio (U1Q) - AM/FM Stereo, Cassette, CD with Programmable Equalizer, Rear Seat Audio (RSA) System and RDS
- Up-level Radio (UC6) - AM/FM, Integral Multi Disc CD Changer (IMCX) with Programmable Equalizer, Rear Seat Audio (RSA) System and RDS
Each item in the list below represents topics covered in detail below.
- AM/FM Reception
- Antenna
- Audio Amplifier
- Theft Deterrent
- Integral Multi Disc CD Changer (IMDX)
- Remote Playback Device
- Rear Seat Audio (RSA)
- Radio Data System (RDS)
- Steering Wheel and Tailgate Audio Controls

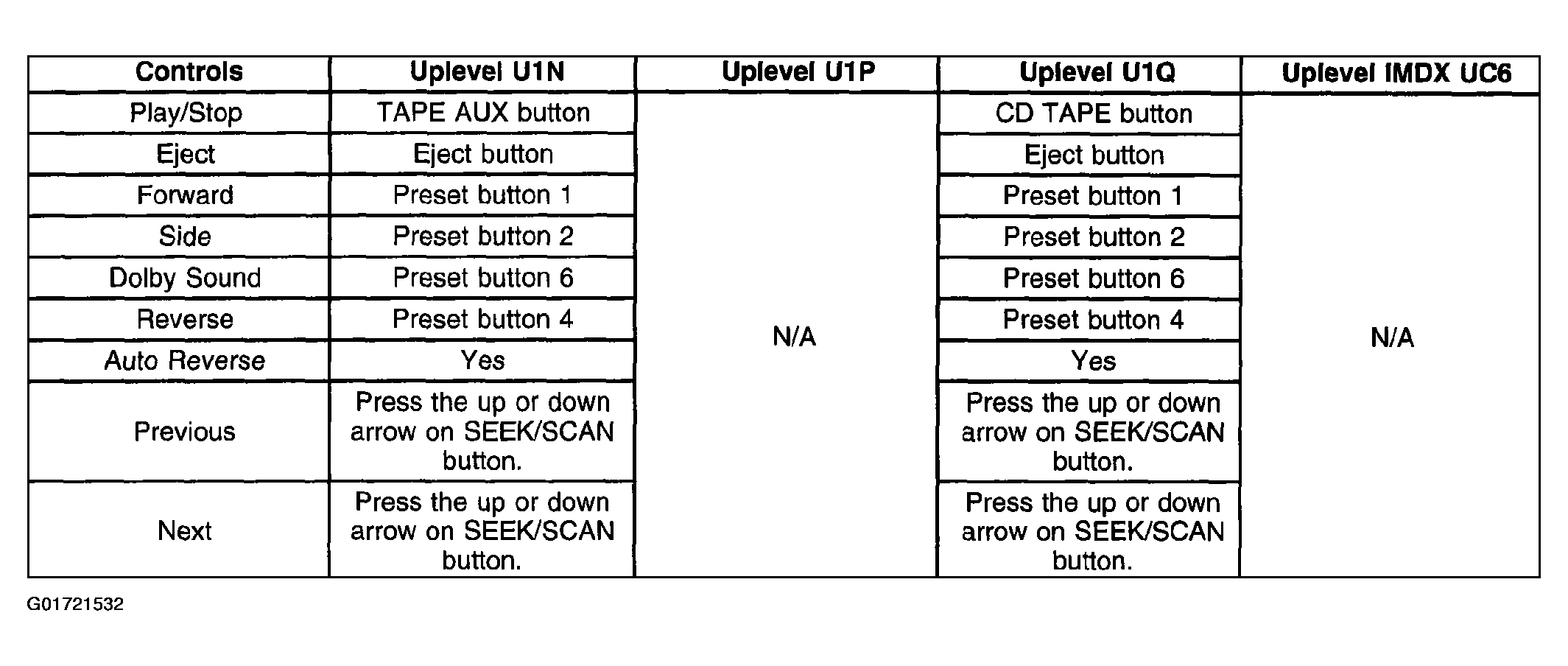

- Tape/CD Player Error Messages
