Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille Panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Using the J 38778  , remove the wiper motor water deflector push-in retainer.
  3. Remove the wiper motor water deflector from the wiper drive system module.

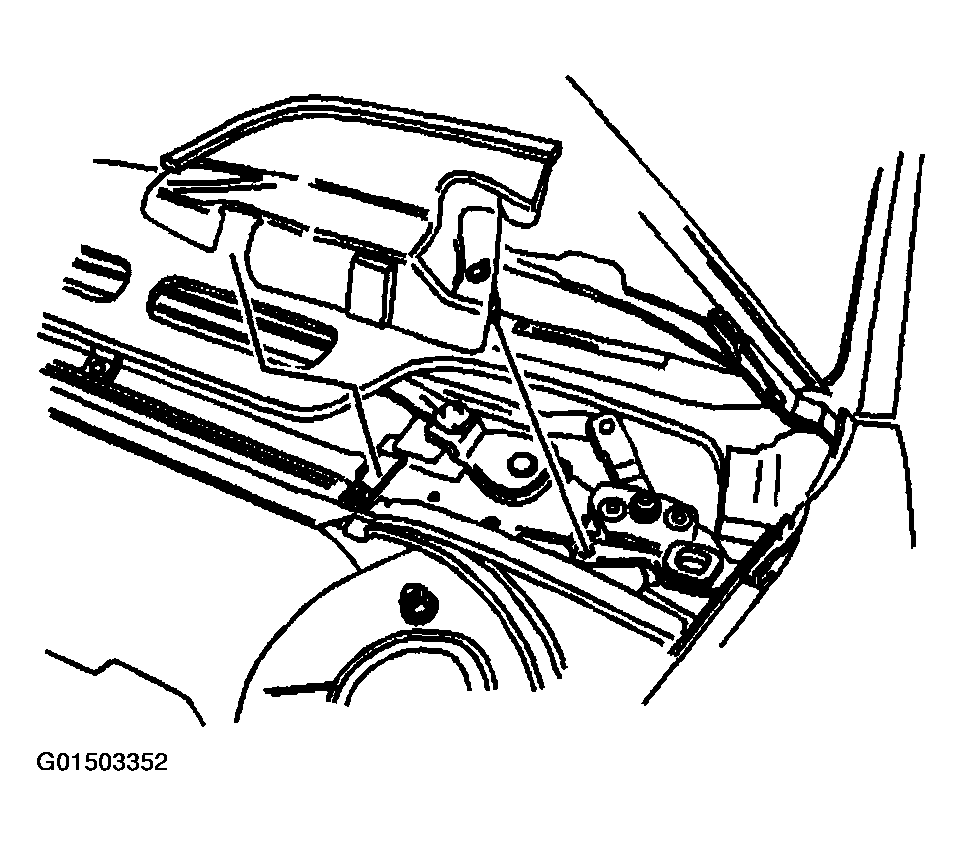

    Fig 1: Removing Wiper Motor Water Deflector From Wiper Drive System Module
    G01503352Courtesy of GENERAL MOTORS CORP.
