Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the Hood.
  2. Remove the washer solvent container filler neck push-in retainer.
  3. Remove the washer solvent container filler neck from the washer solvent container.

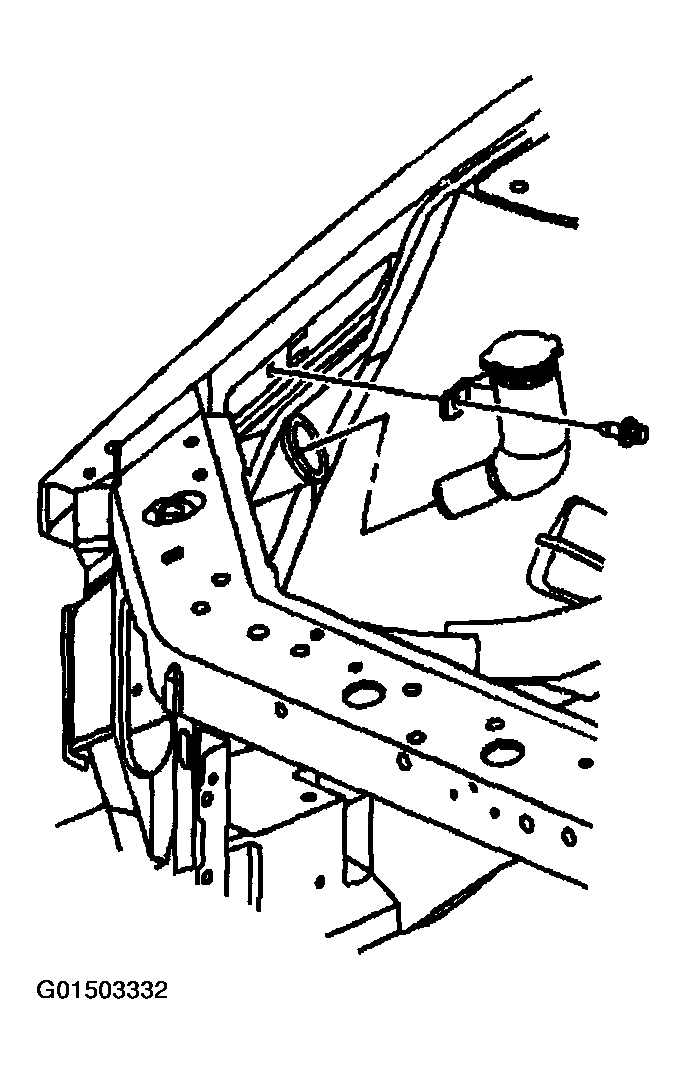

    Fig 1: Removing Washer Solvent Container Filler Neck From Washer Solvent Container
    G01503332Courtesy of GENERAL MOTORS CORP.
