Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container filler neck to the washer solvent container, pressing in until fully seated.
  2. Install the washer solvent container filler neck push-in retainer.
  3. Close the hood.

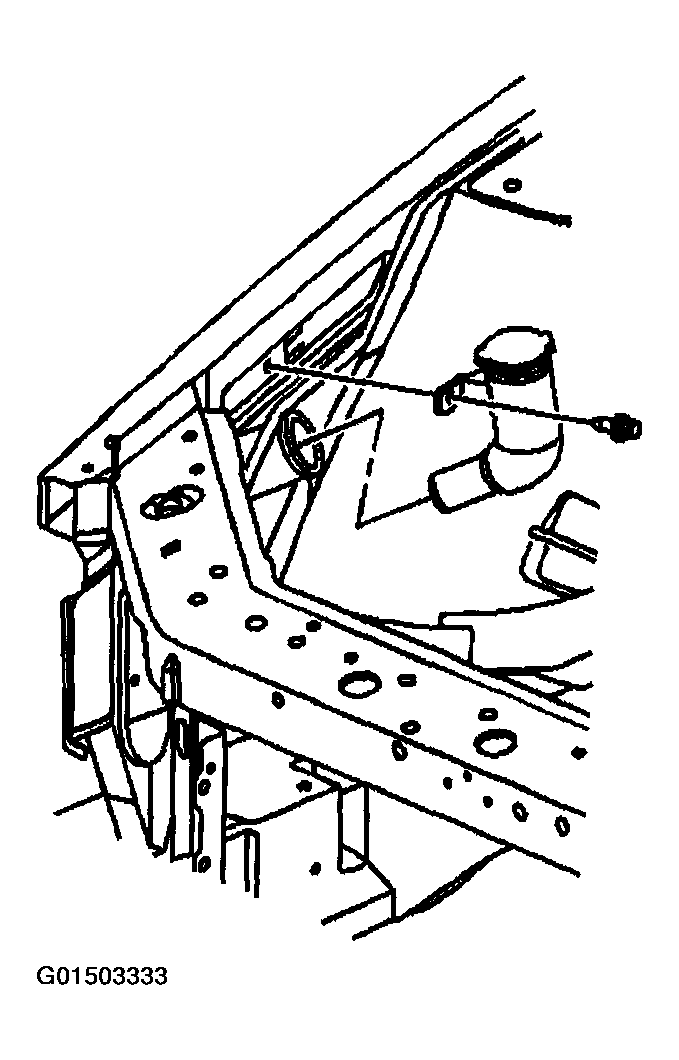

    Fig 1: Installing Washer Solvent Container Filler Neck To Washer Solvent Container
    G01503333Courtesy of GENERAL MOTORS CORP.
