Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  2. Reach behind the IP compartment support panel and depress the retaining tabs on the IP compartment lamp switch to release.
  3. Press the lamp switch through the switch opening toward the rear of the vehicle.
  4. Disconnect the electrical connector from the IP compartment lamp switch.

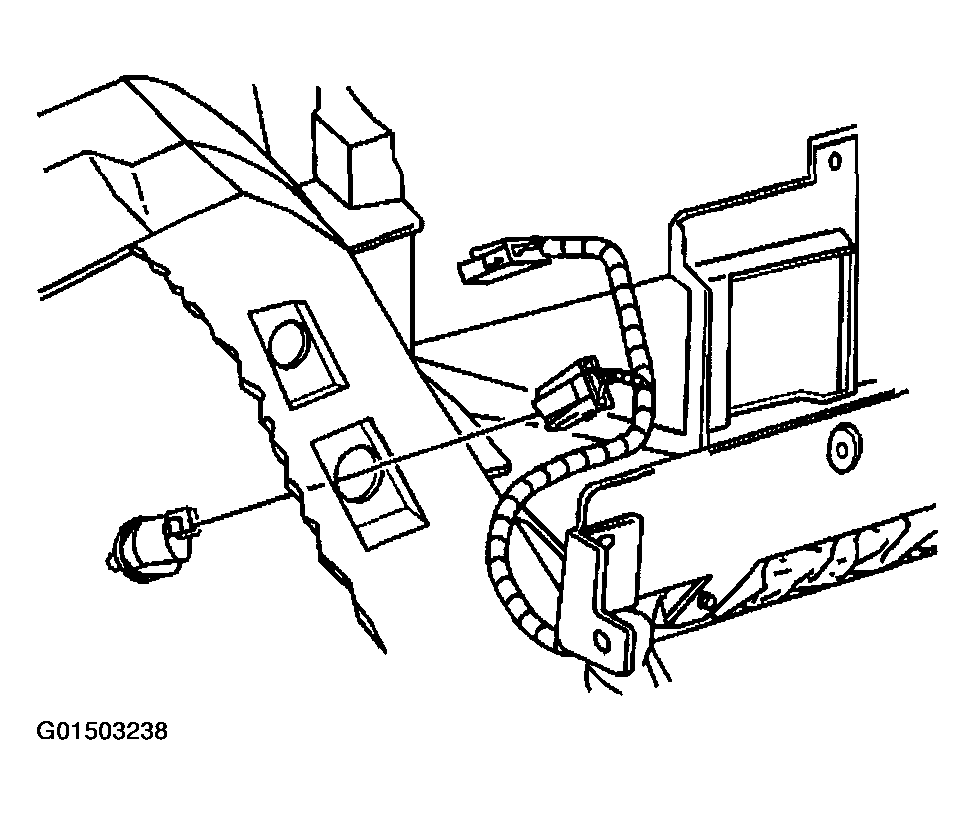

    Fig 1: Disconnecting Electrical Connector From Instrument Panel Compartment Lamp Switch
    G01503238Courtesy of GENERAL MOTORS CORP.
