Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the IP compartment lamp socket.
  2. Install the fuse block access panel.
  3. Close the IP compartment door.

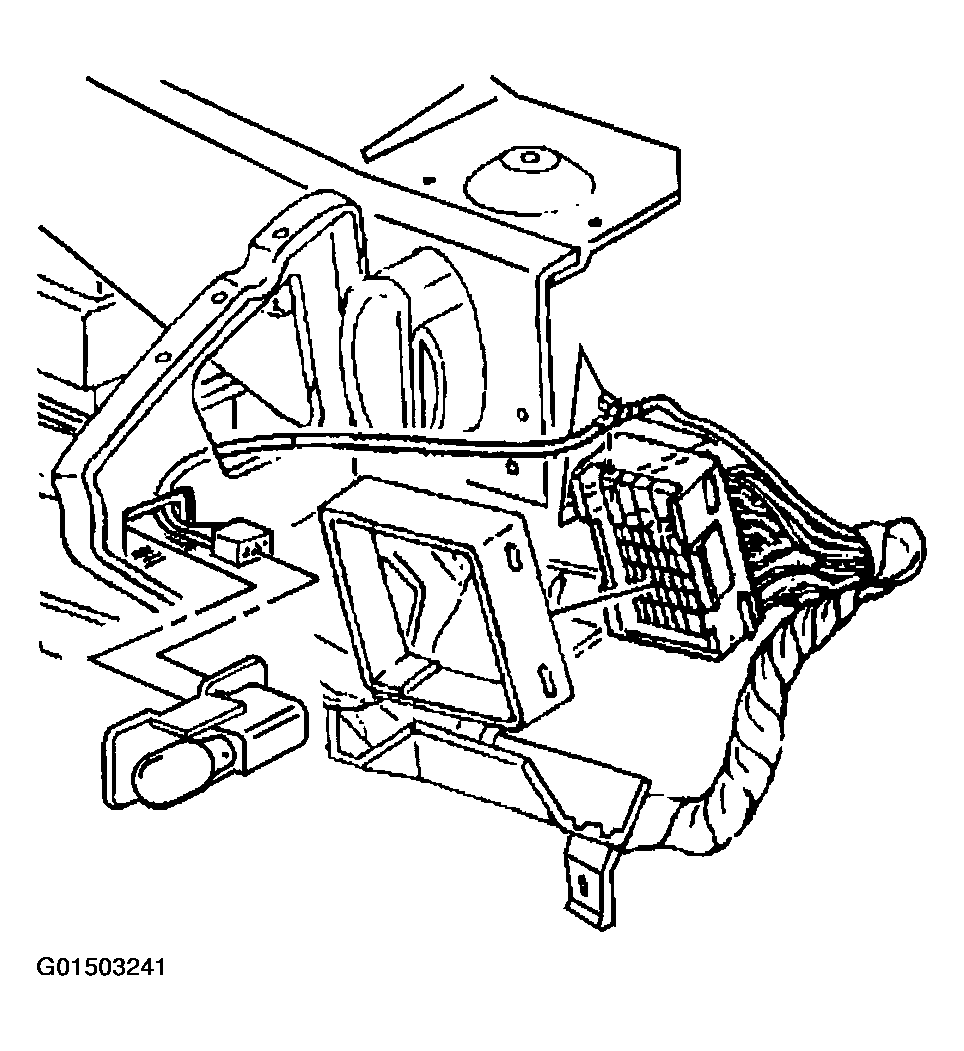

    Fig 1: Installing Instrument Panel Compartment Lamp Bulb
    G01503241Courtesy of GENERAL MOTORS CORP.
