Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the muffler to the exhaust hangers.
  2. Support the exhaust system.
  3. Install a new gasket to the catalytic converter and the muffler.
  4. Install the catalytic converter to the muffler. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L)  or CATALYTIC CONVERTER REPLACEMENT (3.8L)  .
  5. Remove the exhaust system support.
  6. Lower the vehicle.
  7. Inspect for exhaust leaks.

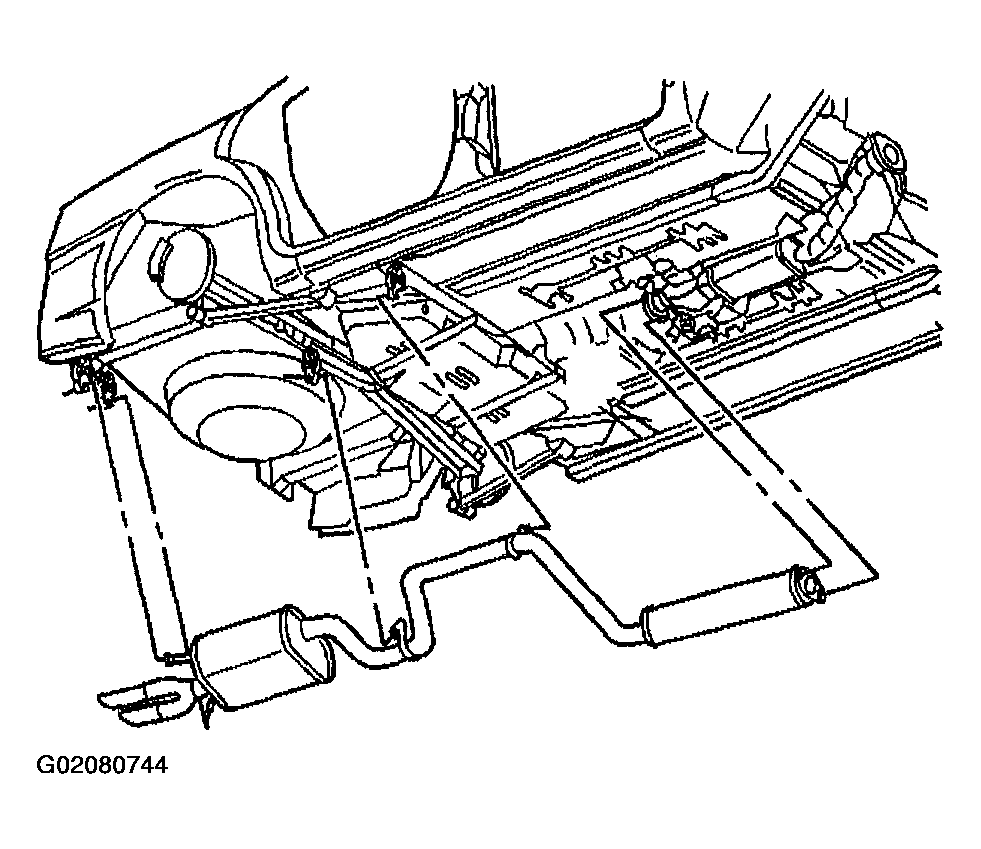

    Fig 1: Installing Muffler To Exhaust Hangers
    G02080744Courtesy of GENERAL MOTORS CORP.
