Rear Toe Adjustment

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the jam nut at the rear wheel spindle rod (rear).

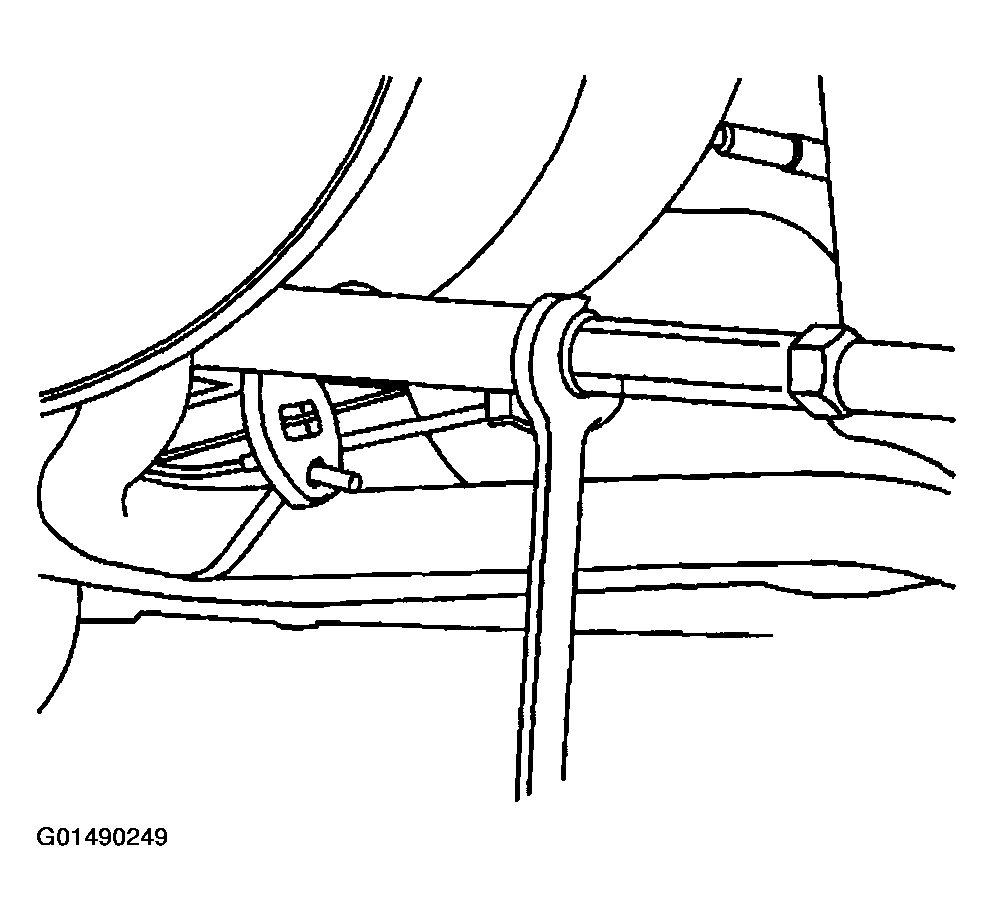

    Fig 1: Loosening Jam Nut At Rear Wheel Spindle Rod (Rear)
    G01490249Courtesy of GENERAL MOTORS CORP.
  2. Adjust the toe to the proper setting by turning the adjusting nut. Refer to Wheel Alignment Specifications  .

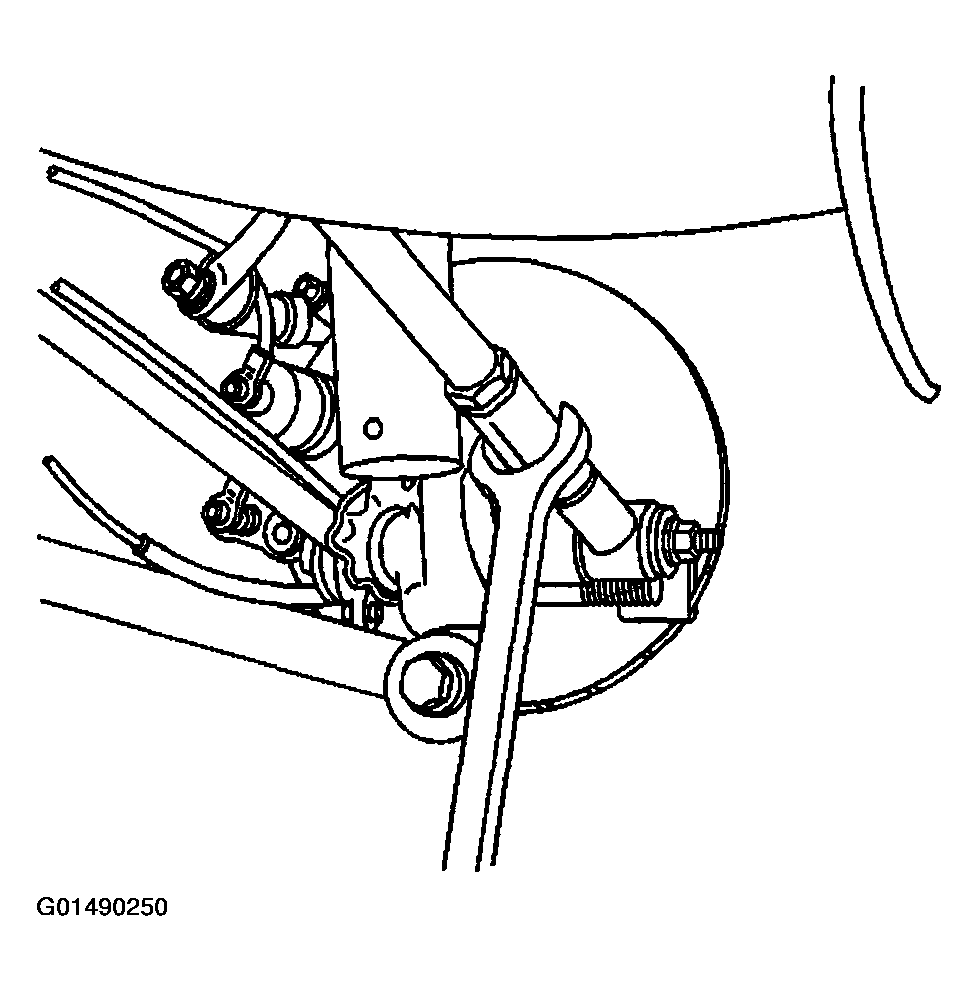

    Fig 2: Adjusting Rear Toe To Proper Setting By Turning Adjusting Nut
    G01490250Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the hex nuts on the rear wheel spindle rod (rear).

    Tighten

    Tighten the rear wheel spindle rod ends jam nut to 50 N.m (37 lb ft).

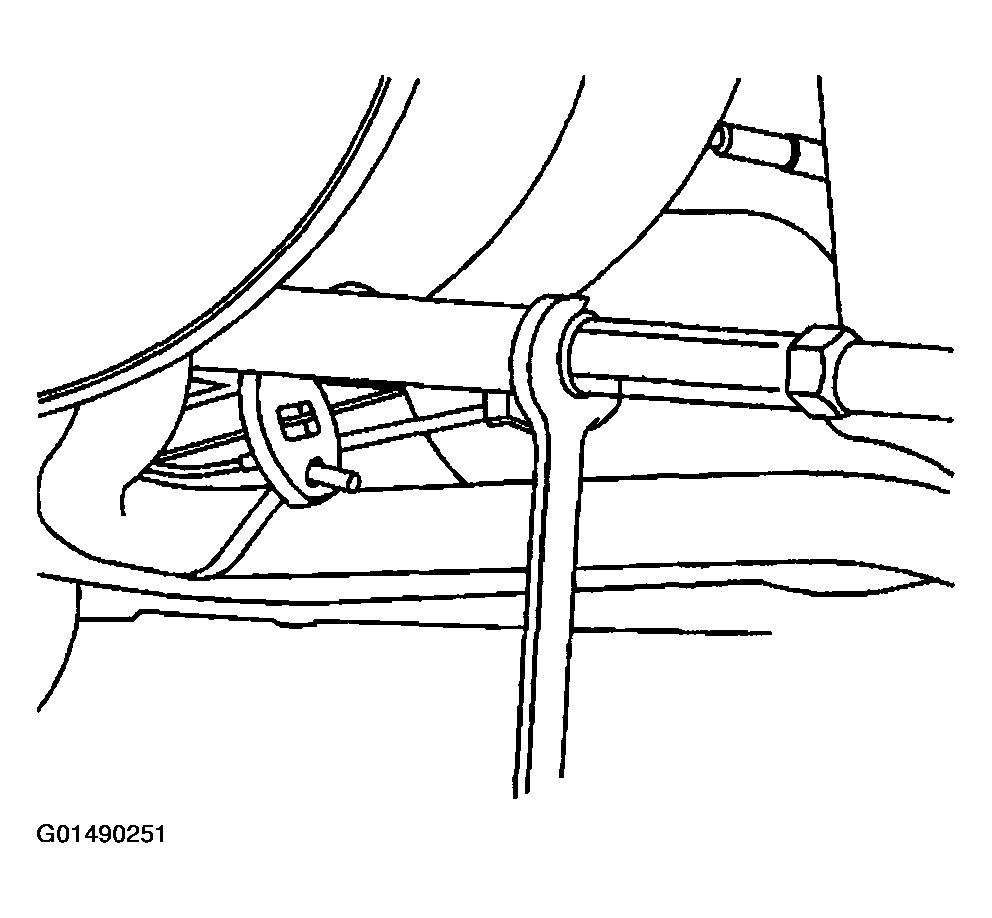

    Fig 3: Tightening Hex Nuts On Rear Wheel Spindle Rod (Rear)
    G01490251Courtesy of GENERAL MOTORS CORP.
