Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pressure hose (2) to the vehicle.

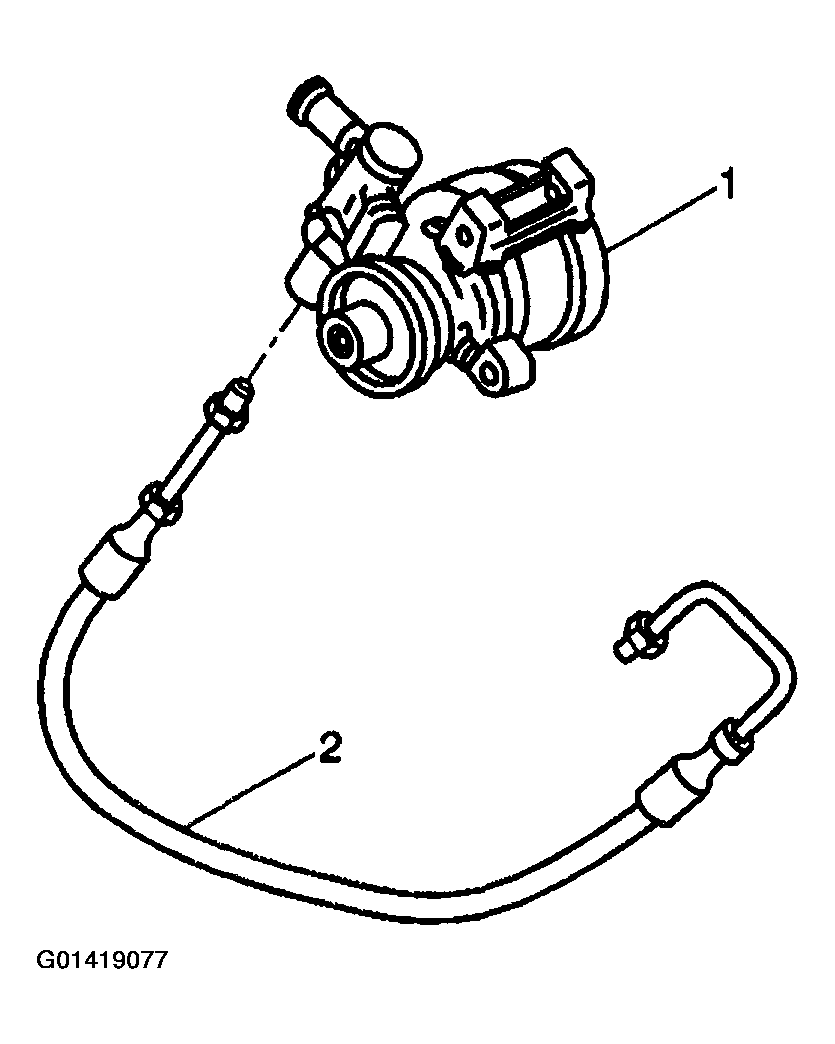

    Fig 1: Installing Power Steering Pressure Hose
    G01419077Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering pressure hose (2) to the power steering gear.

    Tighten

    Tighten the fitting to 27 N.m (20 lb ft)

  3. Install the power steering pressure hose (2) to the power steering pump (1).

    Tighten

    Tighten the fitting to 27 N.m (20 lb ft)

  4. Lower the vehicle.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
